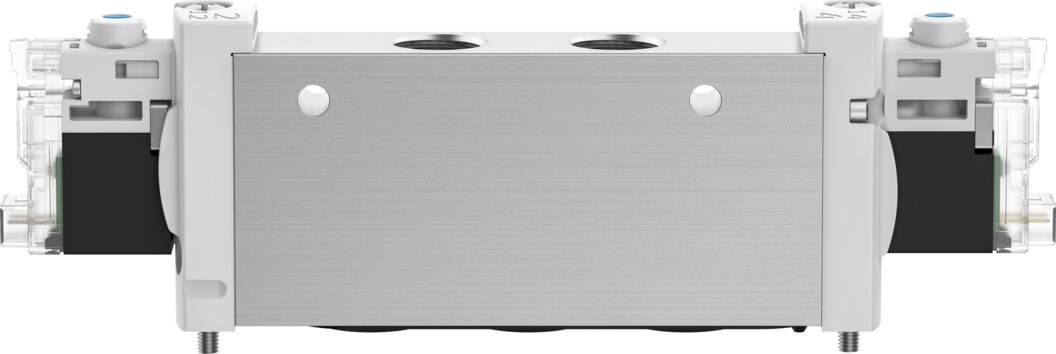

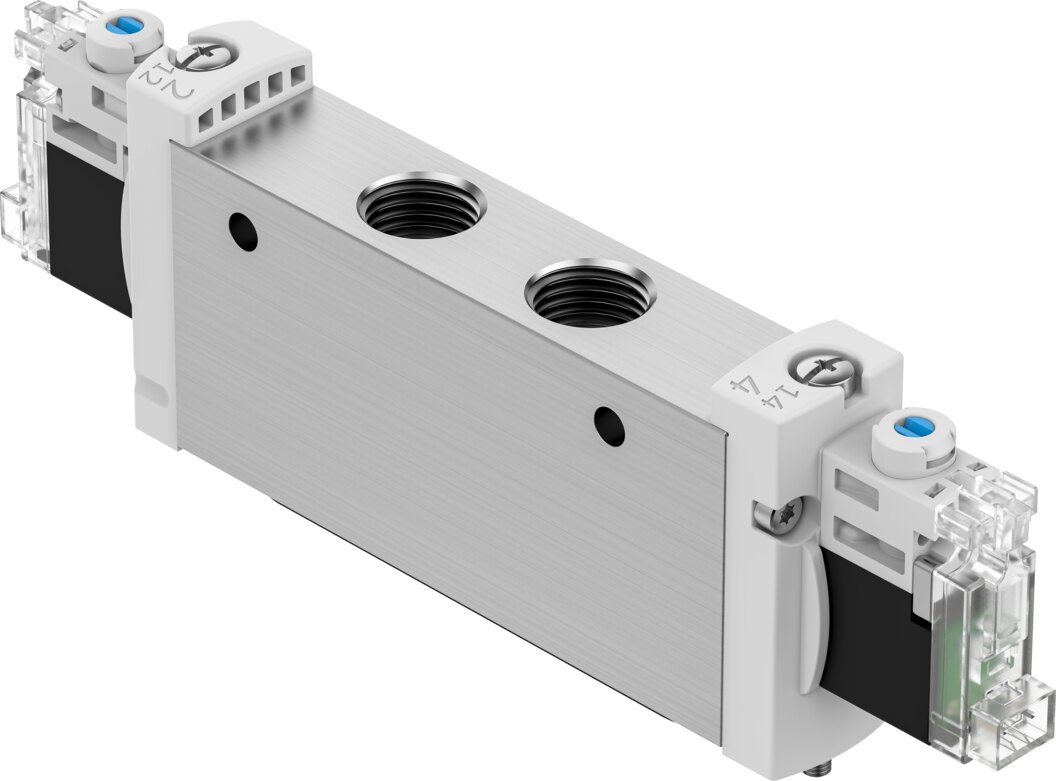

Solenoid valve 5/2 bistable, 18 mm, G1/4 VUVG-L18-B52-T-G14-1H2L-F1A - Festo 8172837

Festo ✓ Original product Brand new

VUVG solenoid valve with valve function 5/2 bistable: 1380 l/min standard nominal flow, operating pressure 1.5 to 8 bar. Port G1/4, valve size 18 mm, 24 V DC coil with 0.8 W.

Net
€108.05
excl. VAT
Item FES-8172837
Manufacturer no. VUVG-L18-B52-T-G14-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L18-B52-T-G14-1H2L-F1A works as a 5/2-way impulse valve and stays in position after a short switching signal. Standard nominal flow is 1380 l/min at a valve size of 18 mm.

Benefits

  • Flow rate: 1380 l/min to DIN 1343 at valve size 18 mm, nominal size 7.3 mm.
  • Pressure range: 1.5 to 8 bar operating pressure.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.

Application

Suited to double-acting cylinders. The pilot stage is supplied internally. Manual override detenting, non-detenting, concealed. Mounting on manifold rail, with through-hole, product weight 164 g. The medium is compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Oiled air is possible, but then permanently. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L18-B52-T-G14-1H2L-F1A
Festo part number8172837
Valve function5/2-way, double solenoid
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate (to DIN 1343)1380 l/min
Pneumatic working portG1/4
Operating voltage24 V DC
Operating pressure1.5 to 8 bar
DesignPiston spool
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size7.3 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure1.5 to 8 bar
Suitability for vacuumNo
Changeover time15 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Ambient temperature-5 to 50 °C
Product weight164 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.165 kg
ManufacturerFesto
Hersteller-NrVUVG-L18-B52-T-G14-1H2L-F1A
EAN4052568617899
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/4
Nominal size DN [mm]7,3
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 bistable
Flow rate [l/min]1380
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Protection ratingIP40
Temperature (max.)50
