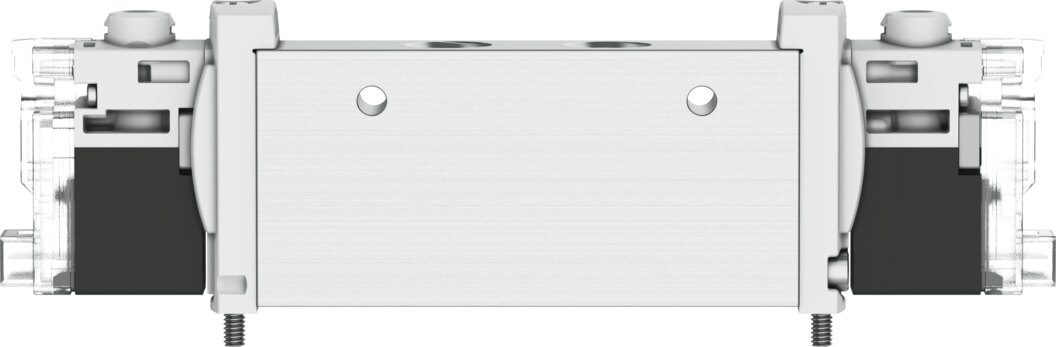

Solenoid valve 2x 3/2 open/closed, monostable, 14 mm, G1/8 VUVG-L14-T32H-MZT-G18-1R8L - Festo 589456

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L14-T32H-MZT-G18-1R8L, function 2x 3/2 open/closed, monostable in valve size 14 mm. Port G1/8, 24 V DC coil, reset by mechanical spring, external pilot air.

Net
€124.42
excl. VAT
Item FES-589456
Manufacturer no. VUVG-L14-T32H-MZT-G18-1R8L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

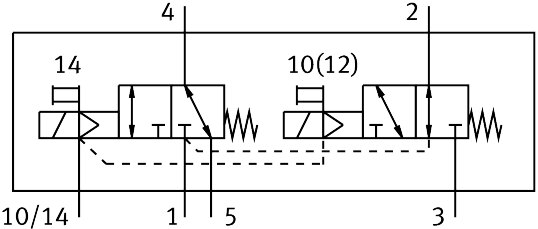

The solenoid valve VUVG-L14-T32H-MZT-G18-1R8L contains two separately actuated 3/2-way functions, one open and one closed in the normal position. VUVG series, valve size 14 mm.

Benefits

  • Size: Valve size 14 mm, working port G1/8.
  • Voltage: 24 V DC.
  • Manual override: Detenting, non-detenting.
  • Reset: Mechanical spring, external pilot air.

Application

Use: single-acting cylinders, separate pilot circuits. External pilot air. Mounting on manifold rail, with through-hole, weight 0.105 kg. The data is derived from order type VUVG-L14-T32H-MZT-G18-1R8L, see the Festo datasheet for further values.

Technical data

TypeVUVG-L14-T32H-MZT-G18-1R8L
Festo part number589456
Valve function2x3/2-way, open/closed, monostable
Type of actuationElectrical
Valve size14 mm
Pneumatic working portG1/8
Operating voltage24 V DC
Type of resetMechanical spring
Manual overrideDetenting, non-detenting
Pilot air supplyExternal
Type of mountingOn manifold rail, with through-hole
Weight0.105 kg
ManufacturerFesto
Hersteller-NrVUVG-L14-T32H-MZT-G18-1R8L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Function2x3/2 open/closed monostable
Actuation typeElectrical
SeriesVUVG
Pneumatic connectionG1/8
