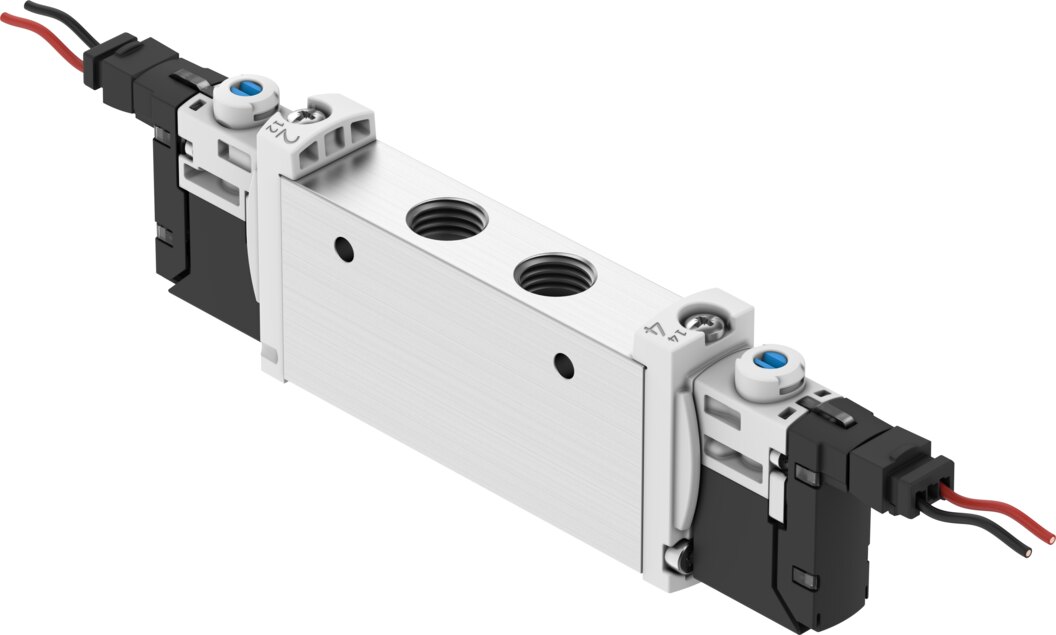

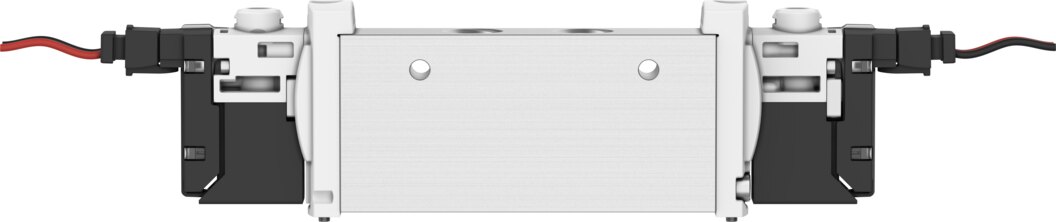

Solenoid valve 5/3-way pressurised, valve size 14 mm, G1/8 VUVG-L14-P53U-T-G18-1H2L-W1 - Festo 577322

Festo ✓ Original product Brand new

The solenoid valve VUVG-L14-P53U-T-G18-1H2L-W1 with 5/3-way pressurised function and 14 mm valve size controls double-acting cylinders with a pressurised mid-position. Operating pressure 3 to 8 bar, working ports G1/8, coil 24 V DC with 1.0 W.

Net
€113.14
excl. VAT
Item FES-577322
Manufacturer no. VUVG-L14-P53U-T-G18-1H2L-W1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L14-P53U-T-G18-1H2L-W1 from the Festo VUVG series delivers 560 l/min standard nominal flow at 14 mm valve size. The pressurised mid-position supplies both working ports with compressed air when neither solenoid is energised.

Benefits

  • Standard nominal flow rate 560 l/min at 14 mm valve size, nominal size 5.6 mm
  • Operating pressure 3 to 8 bar
  • Short switching times: 12 ms on, 40 ms off
  • Coil 24 V DC with 1.0 W, 100 % duty cycle
  • Working ports G1/8
  • Cleanroom suitable: class 5 to ISO 14644-1

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Once lubricated, operation must remain lubricated. Permissible media and ambient temperature of the VUVG-L14-P53U-T-G18-1H2L-W1: -5 to 60 °C, the mounting position is freely selectable. Festo 577322 is connected electrically 2-pin, plug pattern H, horizontal connection, cable with open end and mounted on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L14-P53U-T-G18-1H2L-W1
Festo part number577322
SeriesVUVG
Valve function5/3-way pressurised
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate560 l/min
Pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
ApprovalRCM mark, c UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK electrical equipment regulations
Degree of protectionIP40, with plug socket
Nominal size5.6 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure3 to 8 bar
Vacuum suitabilityNo
Switching time off40 ms
Switching time on12 ms
Changeover time20 ms
Duty cycle100 %
Maximum positive test pulse at 0 signal700 µs
Maximum negative test pulse at 1 signal900 µs
Coil characteristics24 V DC: 1.0 W
Permissible voltage fluctuation±10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Ambient and media temperature restriction-5 to 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformity (LABS)VDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Medium temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Electrical connection2-pin, plug pattern H, horizontal connection, cable with open end
Type of mountingOn manifold rail, with through-hole
Pneumatic port 1G1/8
Pneumatic port 2G1/8
Pneumatic port 3G1/8
Pneumatic port 4G1/8
Pneumatic port 5G1/8
Note on materialsRoHS compliant
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.1 kg
ManufacturerFesto
Hersteller-NrVUVG-L14-P53U-T-G18-1H2L-W1
EAN4052568381516
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/8
Nominal size DN [mm]5,6
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]560
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
Betriebsdruck max [bar]8
Pneumatic connectionG1/8
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
