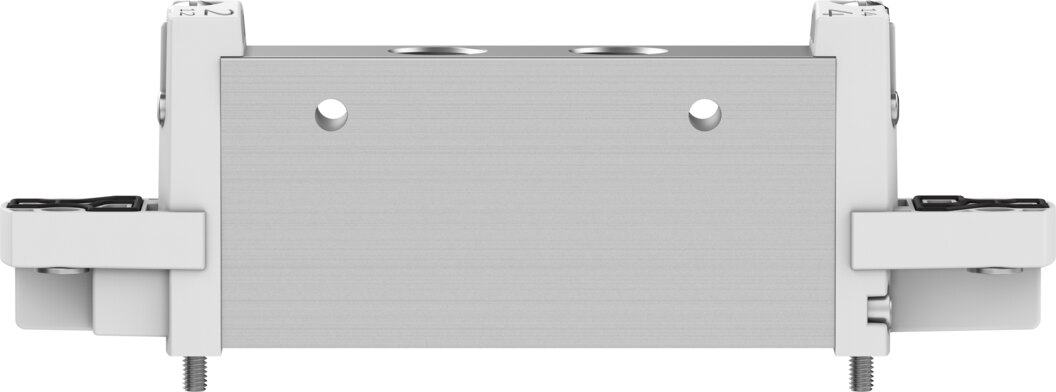

Solenoid valve 2x 3/2 open/closed, monostable, 14 mm, G1/8 VUVG-L14-T32H-A-G18-P1 - Festo 8033525
VUVG solenoid valve with valve function 2x 3/2 open/closed, monostable: 580 to 590 l/min standard nominal flow, operating pressure 1.5 to 8 bar. Port G1/8, valve size 14 mm, pilot interface to ISO 15218.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-L14-T32H-A-G18-P1 contains two separately actuated 3/2-way functions, one open and one closed in the normal position. Standard nominal flow is 580 to 590 l/min at a valve size of 14 mm.
Benefits
- Flow and switching time: 580 to 590 l/min at valve size 14 mm, switches on in 11 ms and off in 18 ms.
- Piloting: Interface to ISO 15218.
- Corrosion protection: CRC 2 - Moderate corrosion stress.
- Protection: Degree of protection IP65 with plug socket.
- Cleanroom: Class 5 to ISO 14644-1.
- Pressure range: 1.5 to 8 bar operating pressure.
Application
The VUVG-L14-T32H-A-G18-P1 switches single-acting actuators or blow-air circuits. The pilot stage is supplied internally. Mounting on manifold rail, with through-hole, product weight 65 g. The medium is compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Oiled air is possible, but then permanently.
Technical data
| Type | VUVG-L14-T32H-A-G18-P1 |
|---|---|
| Festo part number | 8033525 |
| Valve function | 2x3/2-way, open/closed, monostable |
| Type of actuation | Electrical |
| Valve size | 14 mm |
| Standard nominal flow rate (to DIN 1343) | 580 to 590 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | 1.5 to 8 bar |
| Design | Piston spool |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS regulations, to UK regulations for electrical equipment |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65, with electric pilot valve and plug socket |
| Nominal size | 4.6 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Overlap | Positive overlap |
| Pilot pressure | 1.5 to 8 bar |
| Suitability for vacuum | No |
| Switching time off | 18 ms |
| Switching time on | 11 ms |
| Duty cycle | 100 % |
| Maximum positive test pulse with 0 signal | 700 µs |
| Maximum negative test pulse with 1 signal | 900 µs |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured to ISO 14644-14 | Class 5 to ISO 14644-1 |
| Media temperature | -5 to 60 °C |
| Ambient temperature | -5 to 60 °C |
| Product weight | 65 g |
| Electrical connection | Via electric pilot valve |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Pilot control interface | To ISO 15218 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L14-T32H-A-G18-P1 |
| EAN | 4052568428884 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | G 1/8 |
| Nominal size DN [mm] | 4,6 |
| Seal material | HNBR, NBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Function | 2x3/2 open/closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 60 |
| Norm | ISO 15218 |
| Series | VUVG |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
