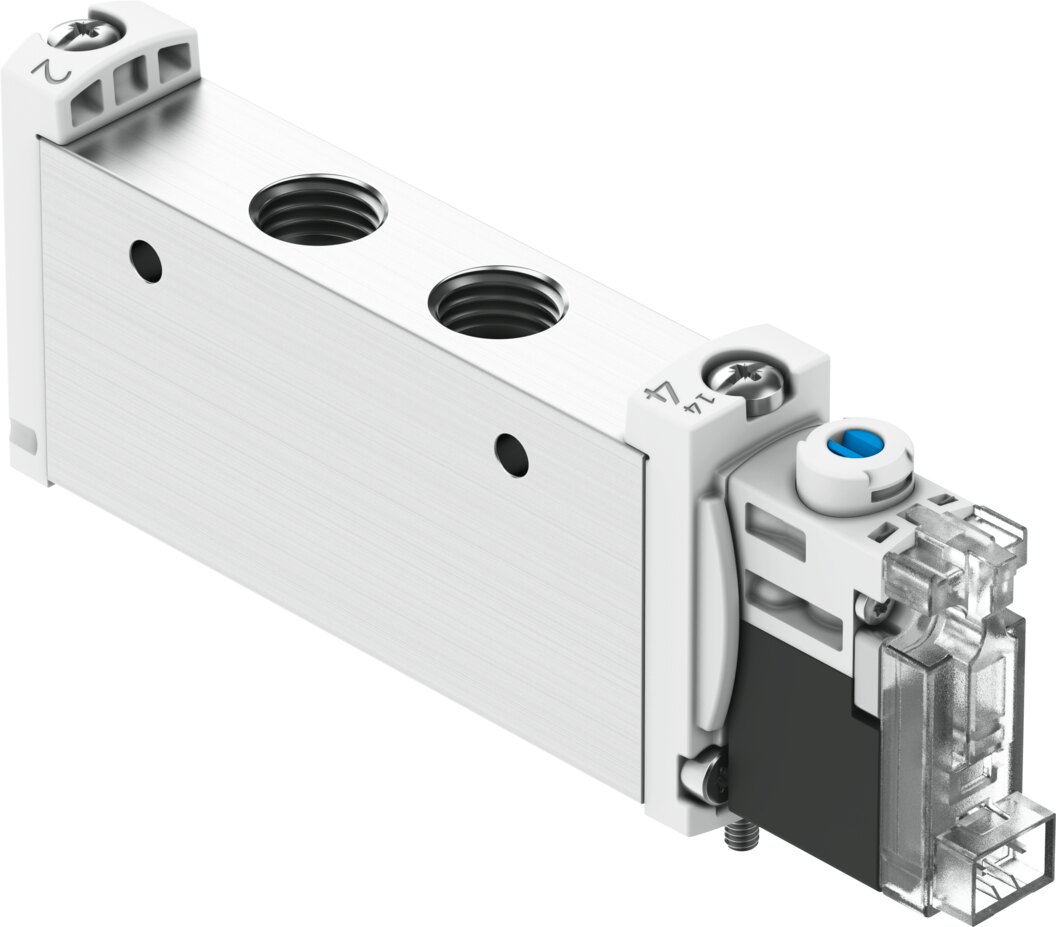

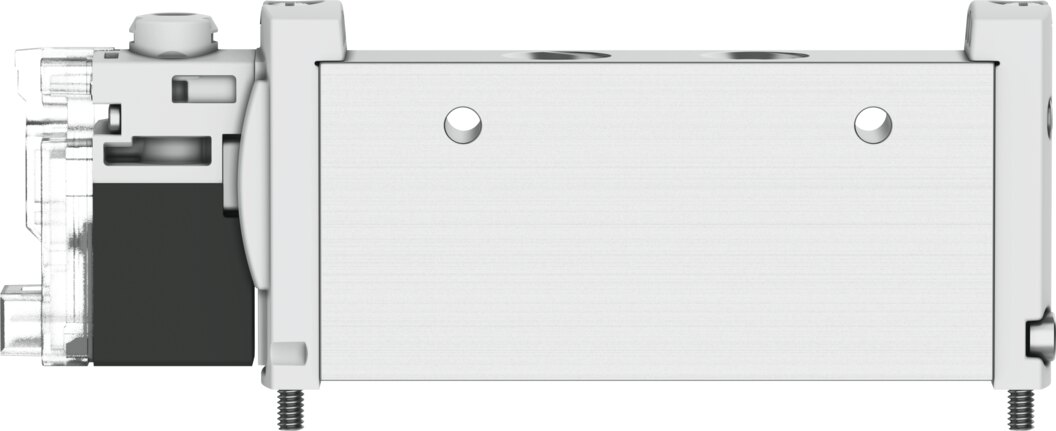

Solenoid valve 5/2-way monostable, valve size 14 mm, G1/8 VUVG-L14-M52-AZT-G18-1H3RL - Festo 578070

Festo ✓ Original product Brand new

The solenoid valve VUVG-L14-M52-AZT-G18-1H3RL with 5/2-way monostable function and 14 mm valve size controls double-acting cylinders and actuators. Operating pressure -0.9 to 10 bar, working ports G1/8. External pilot air at 2.5 to 8 bar.

Net
€75.14
excl. VAT
Item FES-578070
Manufacturer no. VUVG-L14-M52-AZT-G18-1H3RL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

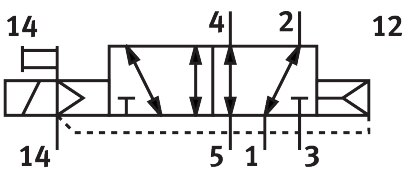

Valve function 5/2-way monostable at 14 mm valve size: the Festo solenoid valve VUVG-L14-M52-AZT-G18-1H3RL controls double-acting cylinders and actuators. Without a signal the 5/2-way valve returns to its normal position, so a double-acting cylinder moves to a defined position.

Benefits

  • Valve size 14 mm for compact valve arrangements
  • Operating pressure -0.9 to 10 bar, suitable for vacuum
  • Working ports G1/8
  • External pilot air at 2.5 to 8 bar

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-L14-M52-AZT-G18-1H3RL: on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L14-M52-AZT-G18-1H3RL
Festo part number578070
SeriesVUVG
Valve function5/2-way monostable
Type of actuationElectrical
Valve size14 mm
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Nominal size5.6 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Pilot pressure2.5 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail, with through-hole
Pneumatic port 1G1/8
Pneumatic port 2G1/8
Pneumatic port 4G1/8
Pneumatic port 5G1/8
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.08 kg
ManufacturerFesto
Hersteller-NrVUVG-L14-M52-AZT-G18-1H3RL
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/8
Nominal size DN [mm]5,6
MediumCompressed air
Function5/2 monostable
Actuation typeElectrical
Betriebsdruck max [bar]10
Pneumatic connectionG1/8
