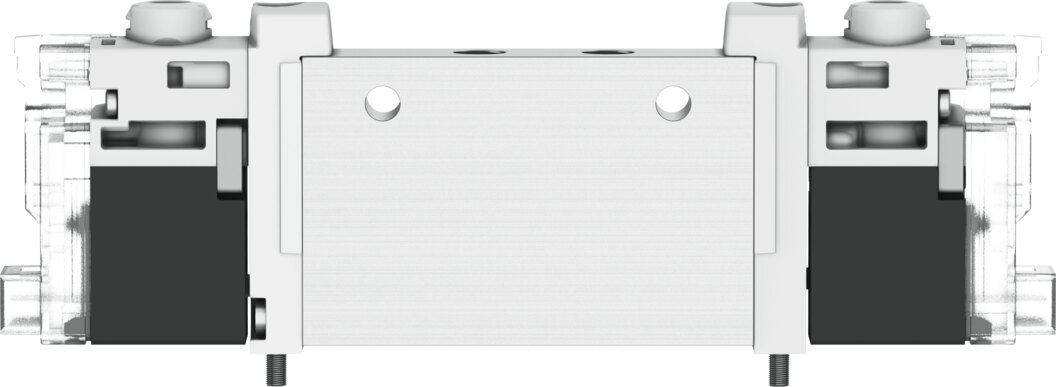

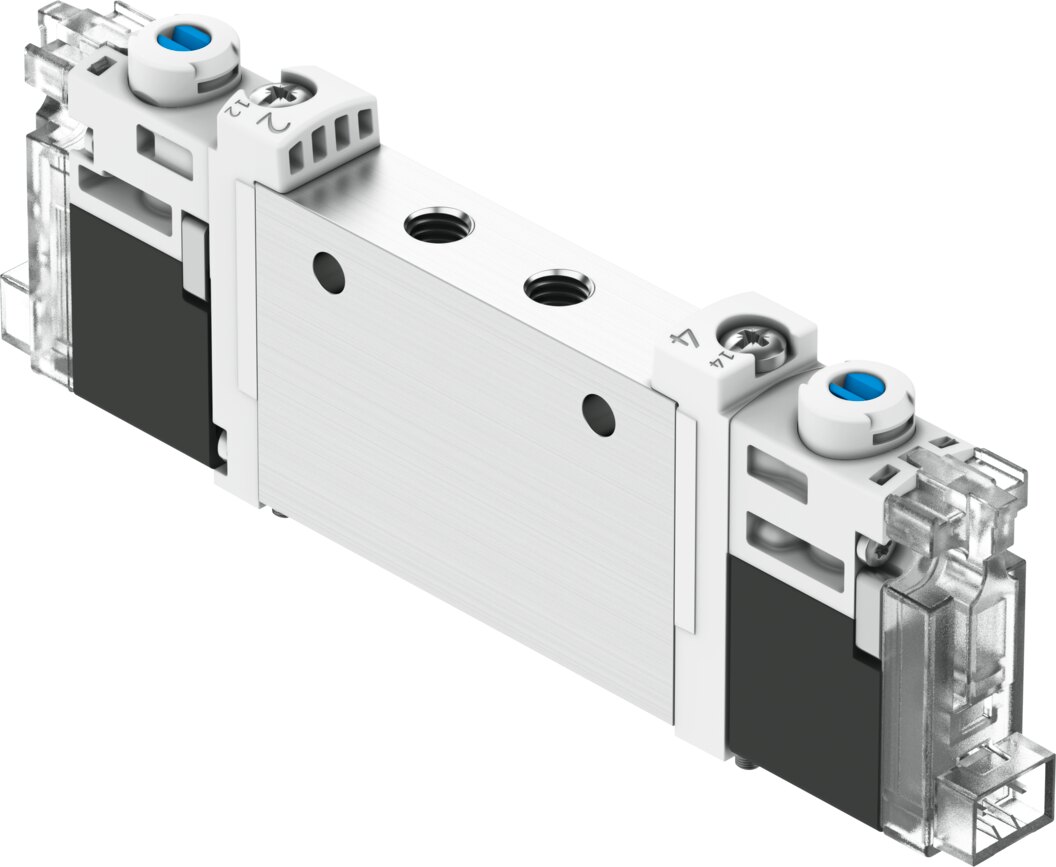

Solenoid valve 5/3 exhausted centre, 10 mm, M7 VUVG-L10-P53E-ZT-M7-1H2L-F1A - Festo 8164362

Festo ✓ Original product Brand new

5/3 exhausted centre solenoid valve from the VUVG series for 320 l/min at -0.9 to 10 bar operating pressure. Port M7, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€121.01
excl. VAT
Item FES-8164362
Manufacturer no. VUVG-L10-P53E-ZT-M7-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-P53E-ZT-M7-1H2L-F1A is a 5/3-way valve that exhausts both working ports in the mid-position. At 10 mm valve size it delivers 320 l/min.

Benefits

  • Flow and switching time: 320 l/min at valve size 10 mm, switches on in 14 ms and off in 36 ms.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Pressure range: -0.9 to 10 bar, suitable for vacuum.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.

Application

In the mid-position the cylinder is pressureless. External pilot air, pilot pressure 3 to 8 bar. Manual override detenting, non-detenting, concealed. Installation on manifold rail, with through-hole, product weight 55 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Once lubricated, lubrication must continue. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L10-P53E-ZT-M7-1H2L-F1A
Festo part number8164362

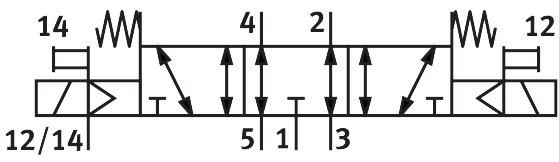

Valve function5/3-way, mid-position exhausted
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)320 l/min
Pneumatic working portM7
Operating voltage24 V DC
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetMechanical spring
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size3.5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyExternal
OverlapIndeterminate overlap
Pilot pressure3 to 8 bar
Suitability for vacuumYes
Switching time off36 ms
Switching time on14 ms
Changeover time19 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight55 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pilot air port 12/14M3
Pneumatic connection, port 1M7
Pneumatic connection, port 2M7
Pneumatic connection, port 3M7
Pneumatic connection, port 4M7
Pneumatic connection, port 5M7
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-P53E-ZT-M7-1H2L-F1A
EAN4052568612221
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM7
Nominal size DN [mm]3,5
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]320
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]10
Pneumatic connectionM7
Protection ratingIP40
Temperature (max.)50
