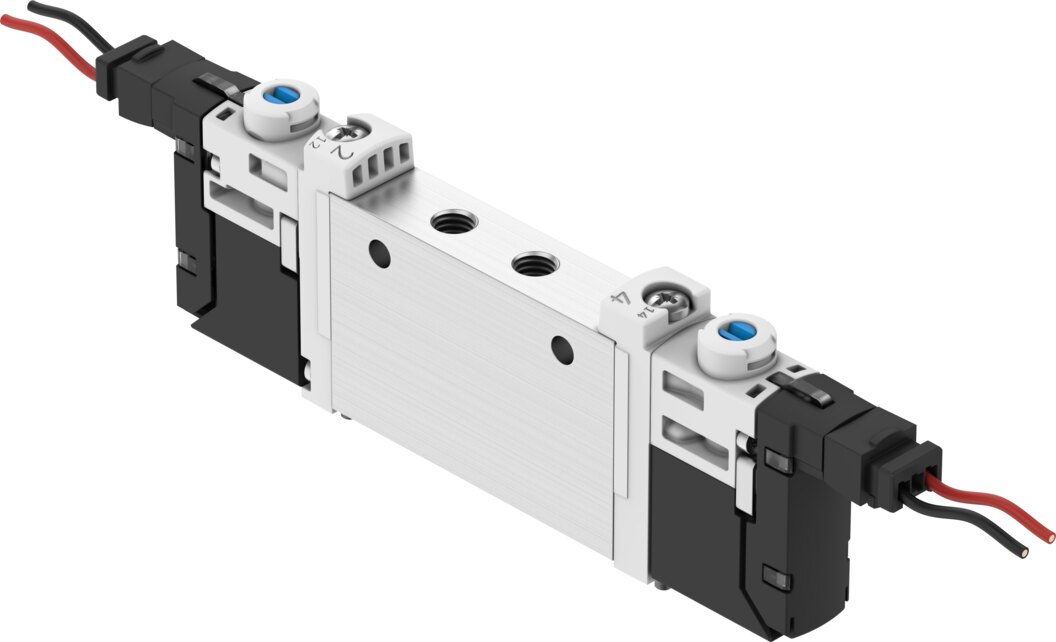

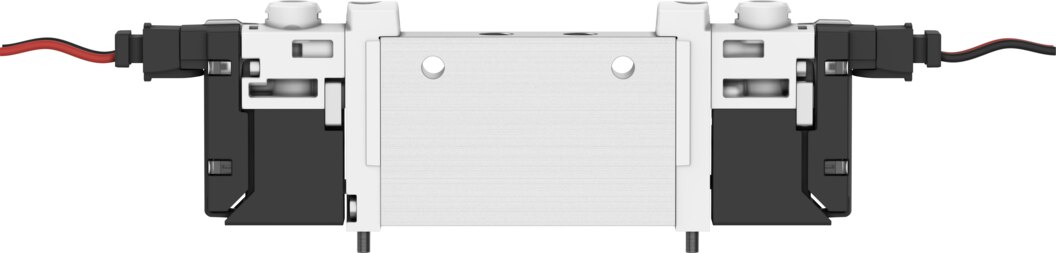

Solenoid valve 2x3/2-way closed, monostable, valve size 10 mm, M5 VUVG-L10-T32C-AT-M5-1H2L - Festo 579166
The solenoid valve VUVG-L10-T32C-AT-M5-1H2L with 2x3/2-way closed, monostable function and 10 mm valve size controls two single-acting actuators or separate air circuits. Operating pressure 1.5 to 8 bar, working ports M5. Internal pilot air.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Valve function 2x3/2-way closed, monostable at 10 mm valve size: the Festo solenoid valve VUVG-L10-T32C-AT-M5-1H2L controls two single-acting actuators or separate air circuits. The housing contains two separately controlled 3/2-way valves, both normally closed.
Benefits
- Valve size 10 mm for compact valve arrangements
- Operating pressure 1.5 to 8 bar
- Working ports M5
- Internal pilot air
Applications
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-L10-T32C-AT-M5-1H2L: on manifold rail, with through-hole.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-L10-T32C-AT-M5-1H2L |
| Festo part number | 579166 |
| Series | VUVG |
| Valve function | 2x3/2-way closed, monostable |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Operating pressure | 1.5 to 8 bar |
| Design | Piston spool |
| Type of reset | Pneumatic spring |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Pilot pressure | 1.5 to 8 bar |
| Duty cycle | 100 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic port 1 | M5 |
| Pneumatic port 2 | M5 |
| Pneumatic port 4 | M5 |
| Pneumatic port 5 | M5 |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L10-T32C-AT-M5-1H2L |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Medium | Compressed air |
| Function | 2x3/2 closed monostable |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | M5 |
