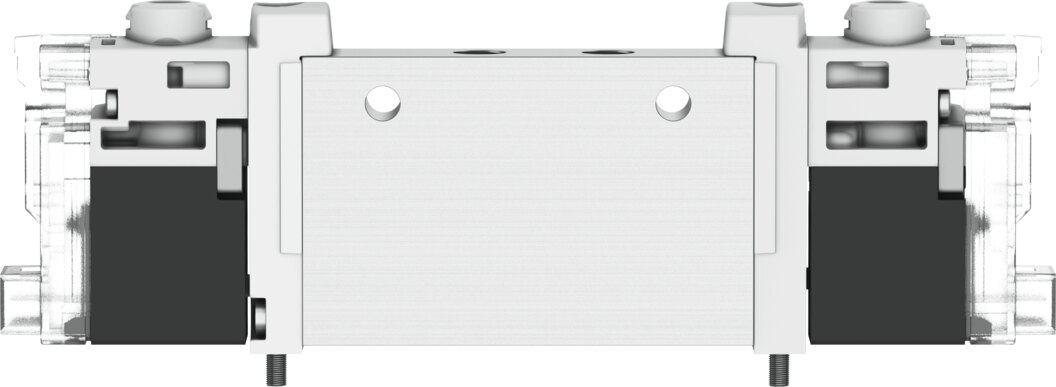

Solenoid valve 5/3 pressurised centre, 10 mm, M7 VUVG-L10-P53U-T-M7-1H2L-F1A - Festo 8164351

Festo ✓ Original product Brand new

VUVG solenoid valve with valve function 5/3 pressurised centre: 290 l/min standard nominal flow, operating pressure 3 to 8 bar. Port M7, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€116.69
excl. VAT
Item FES-8164351
Manufacturer no. VUVG-L10-P53U-T-M7-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L10-P53U-T-M7-1H2L-F1A applies pressure to ports 2 and 4 in the mid-position, working as a 5/3-way valve. Standard nominal flow is 290 l/min at a valve size of 10 mm.

Benefits

  • Flow and switching time: 290 l/min at valve size 10 mm, switches on in 14 ms and off in 36 ms.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Pressure range: 3 to 8 bar operating pressure.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.

Application

The VUVG-L10-P53U-T-M7-1H2L-F1A pressurises both cylinder chambers in the mid-position. The pilot stage is supplied internally. Manual override detenting, non-detenting, concealed. Mounting on manifold rail, with through-hole, product weight 55 g. The medium is compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Oiled air is possible, but then permanently. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L10-P53U-T-M7-1H2L-F1A
Festo part number8164351
Valve function5/3-way, mid-position pressurised
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)290 l/min
Pneumatic working portM7
Operating voltage24 V DC
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size3.5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
OverlapIndeterminate overlap
Pilot pressure3 to 8 bar
Suitability for vacuumNo
Switching time off36 ms
Switching time on14 ms
Changeover time19 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Ambient temperature-5 to 50 °C
Product weight55 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 1M7
Pneumatic connection, port 2M7
Pneumatic connection, port 3M7
Pneumatic connection, port 4M7
Pneumatic connection, port 5M7
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.055 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-P53U-T-M7-1H2L-F1A
EAN4052568612115
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM7
Nominal size DN [mm]3,5
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]290
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]8
Pneumatic connectionM7
Protection ratingIP40
Temperature (max.)50
