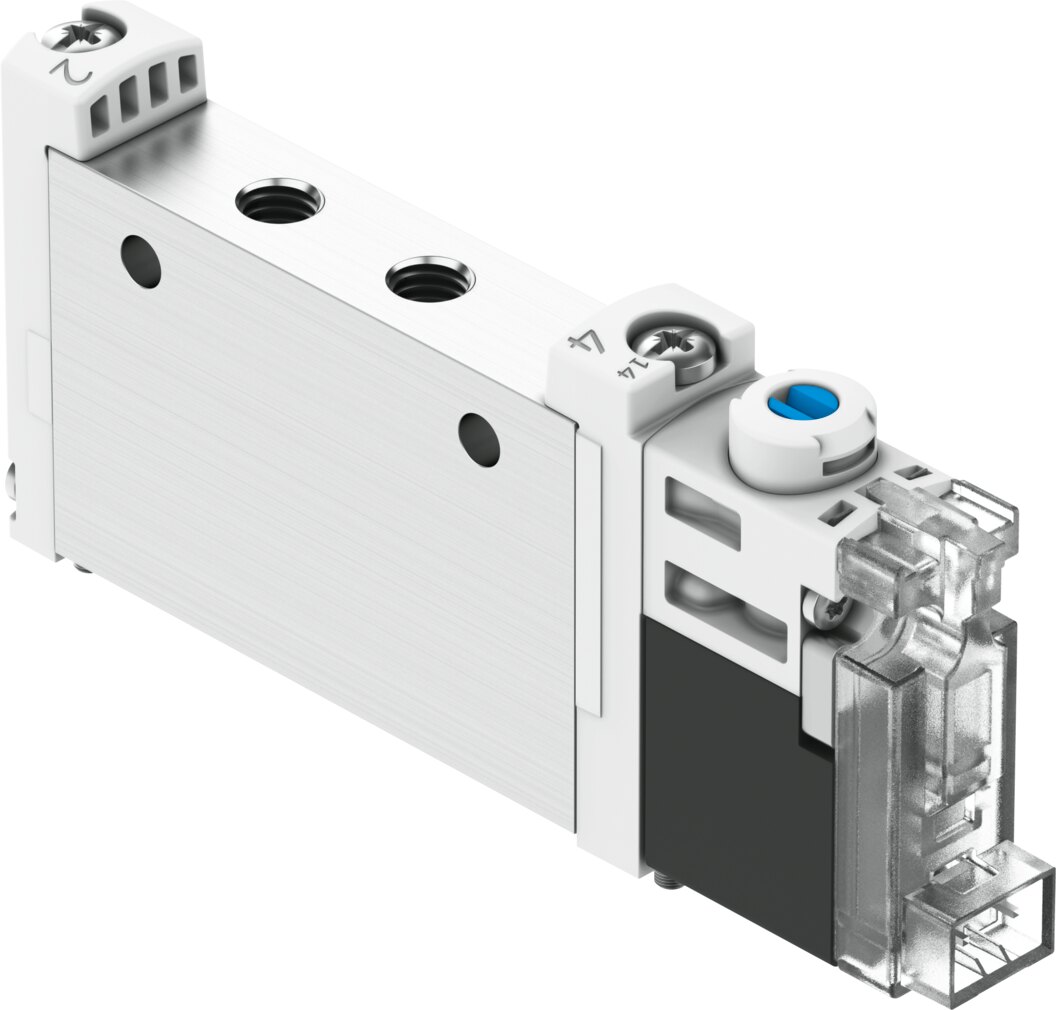

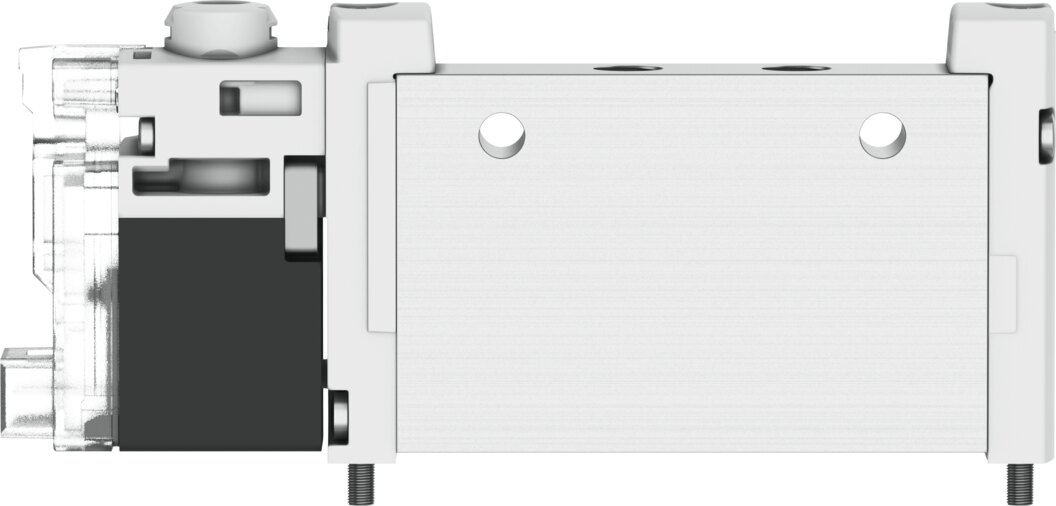

Solenoid valve 5/2-way monostable, valve size 10 mm VUVG-L10-M52-RZH-Q6-1S2L-WS3 - Festo 582640

Festo ✓ Original product Brand new

The solenoid valve VUVG-L10-M52-RZH-Q6-1S2L-WS3 with 5/2-way monostable function and 10 mm valve size controls double-acting cylinders and actuators. Housing in wrought aluminium alloy, seals in HNBR, NBR.

Net
€77.18
excl. VAT
Item FES-582640
Manufacturer no. VUVG-L10-M52-RZH-Q6-1S2L-WS3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

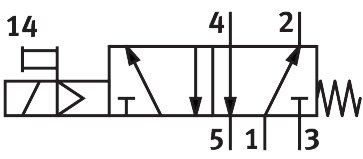

Valve function 5/2-way monostable at 10 mm valve size: the Festo solenoid valve VUVG-L10-M52-RZH-Q6-1S2L-WS3 controls double-acting cylinders and actuators. As a monostable 5/2-way valve it controls both chambers of a double-acting cylinder and drops back to its normal position on loss of signal.

Benefits

  • Valve size 10 mm for compact valve arrangements
  • Valve function 5/2-way monostable
  • Operating medium compressed air to ISO 8573-1:2010 [7:4:4]

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-L10-M52-RZH-Q6-1S2L-WS3: on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L10-M52-RZH-Q6-1S2L-WS3
Festo part number582640
SeriesVUVG
Valve function5/2-way monostable
Type of actuationElectrical
Valve size10 mm
DesignPiston spool
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail, with through-hole
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.08 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-M52-RZH-Q6-1S2L-WS3
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/2 monostable
Actuation typeElectrical
