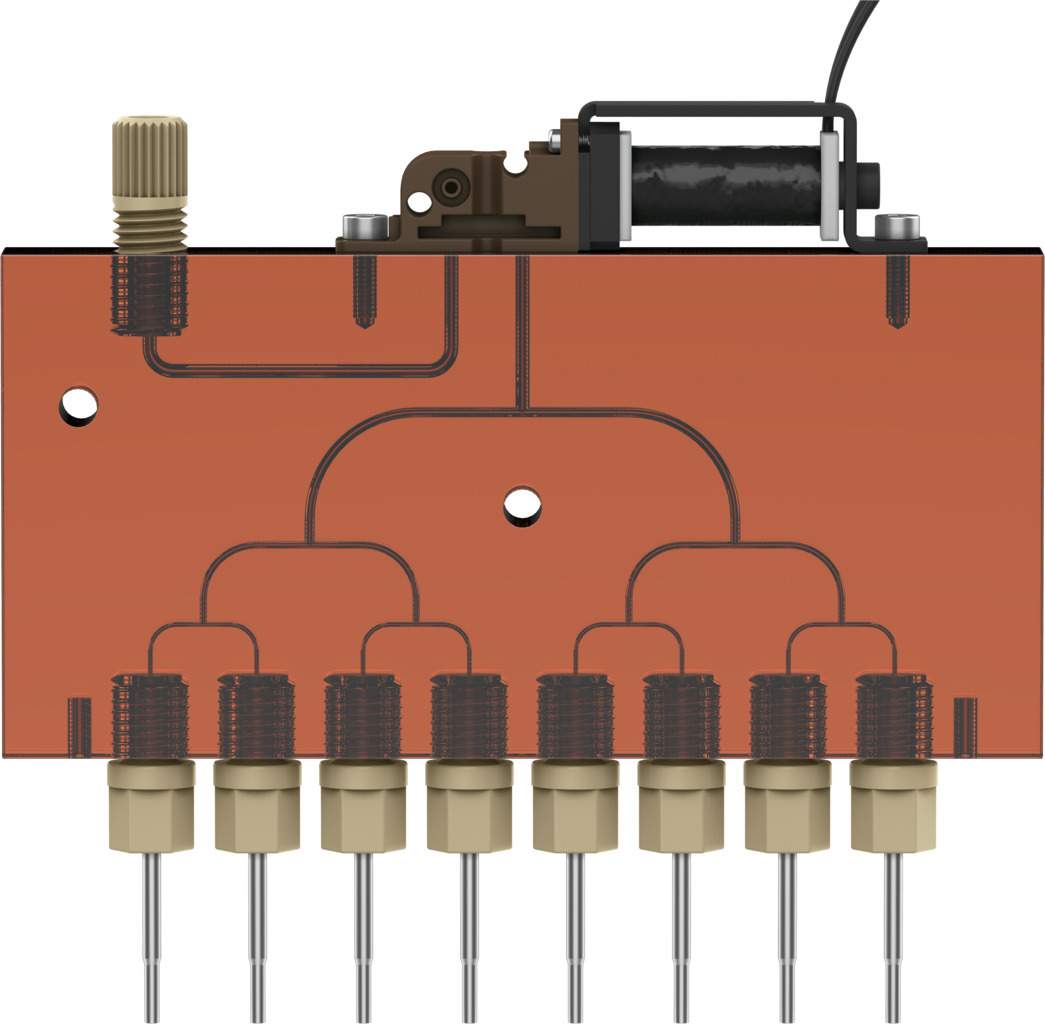

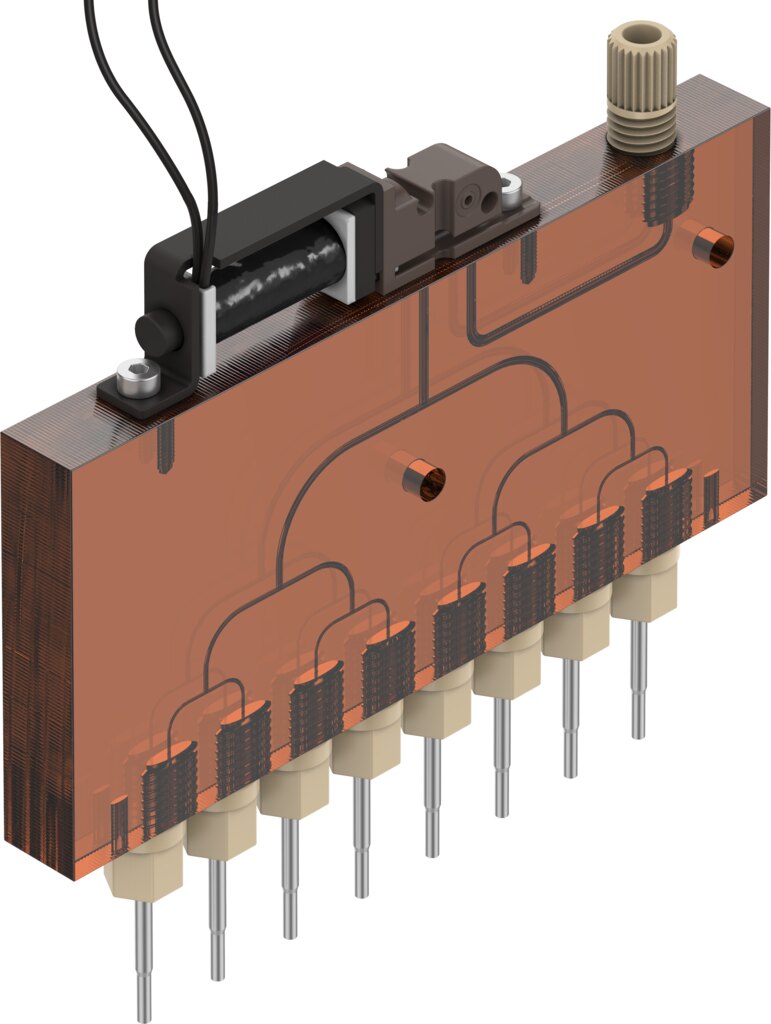

Dispensing head from 1 µl VTOI-V8-30D3-U14-08-V-S015-1 - Festo 8114037
The dispensing head VTOI-V8-30D3-U14-08-V-S015-1 from Festo delivers very small liquid volumes via a fast-switching valve with dosing needle. Key values: minimum dosing volume 1 µl, typical dosing precision ≤5% tip-to-tip CV, ≤ 3% Intra-run CV and dosing needle with nominal width 0.3 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The dispensing head VTOI-V8-30D3-U14-08-V-S015-1 delivers very small liquid volumes via a fast-switching valve with dosing needle. Key values: minimum dosing volume 1 µl, typical dosing precision ≤5% tip-to-tip CV, ≤ 3% Intra-run CV and dosing needle with nominal width 0.3 mm.
Benefits
- Minimum dosing volume 1 µl
- Typical dosing precision ≤5% tip-to-tip CV, ≤ 3% Intra-run CV
- Dosing needle with nominal width 0.3 mm
- Switching times 7 ms on and 2 ms off
- Maximum switching frequency 4 Hz
- Operating pressure 0 to 1 bar
Fields of application
Fields of use for VTOI-V8-30D3-U14-08-V-S015-1 are analysis and laboratory devices that dispense small quantities precisely. Typical tasks for VTOI-V8-30D3-U14-08-V-S015-1 are automated dosing processes that require reproducible volumes in the microlitre range.
Technical data
| Order code | VTOI-V8-30D3-U14-08-V-S015-1 |
|---|---|
| Festo part number | 8114037 |
| Valve function | 2/2-way, single solenoid, closed |
| Operating pressure | 0 to 1 bar |
| Internal volume | 10 µl fluid chamber valve, 178 µl distributor block with valve, needle and fittings |
| Nominal size | 0.8 mm |
| Nominal width of dosing needle | 0.3 mm |
| Length of dosing needle | 30 mm |
| Grid dimension | 9 mm |
| Sealing principle | Soft |
| Mounting position | Vertical |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Suitability for vacuum | No |
| Minimum dosing volume | 1 µl |
| Note on dosing volume | Depends on configuration, environment and application |
| Typical dosing precision | ≤5% tip-to-tip CV, ≤ 3% Intra-run CV |
| Note on dosing precision | Depends on configuration, environment and application |
| Maximum switching frequency | 4 Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| Switching time on | 7 ms |
| Note on switching time on | Depends on configuration, environment and application |
| Switching time off | 2 ms |
| Note on switching time off | Depends on configuration, environment and application |
| Duty cycle | 100% |
| Electrical power consumption | 1.8 W |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/-10% |
| Medium | Liquid media, Gaseous media |
| Note on the medium | Maximum particle size 20 µm |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | 5 to 40 °C |
| Media temperature | 5 to 50 °C |
| Degree of protection | IP30 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 5 to 40 °C |
| Product weight | 52 g |
| Electrical connection | Open end |
| Cable length | 0.15 m |
| Wire ends | Stripped |
| Conductor nominal cross section | AWG28 |
| Type of mounting | Via through-hole for M3 screw |
| Fluid connection | Female thread 1/4-28 UNF-2B |
| Note on fluid connection | Fitting enclosed for tubing with 3 mm outside diameter |
| Material of dosing needle | High-alloy stainless steel |
| Material number of dosing needle | 1.4404 |
| Note on materials | RoHS compliant |
| Materials in contact with the medium | PPS, High-alloy stainless steel |
| Type of actuation | Electrical |
| Nominal altitude of use | ≤ 2000 m NHN |
| Relative air humidity | Non-condensing |
| Manufacturer | Festo |
| Hersteller-Nr | VTOI-V8-30D3-U14-08-V-S015-1 |
| EAN | 4052568462376 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 1 |
| Protection rating | IP30 |
| Temperature (max.) | 40 |
