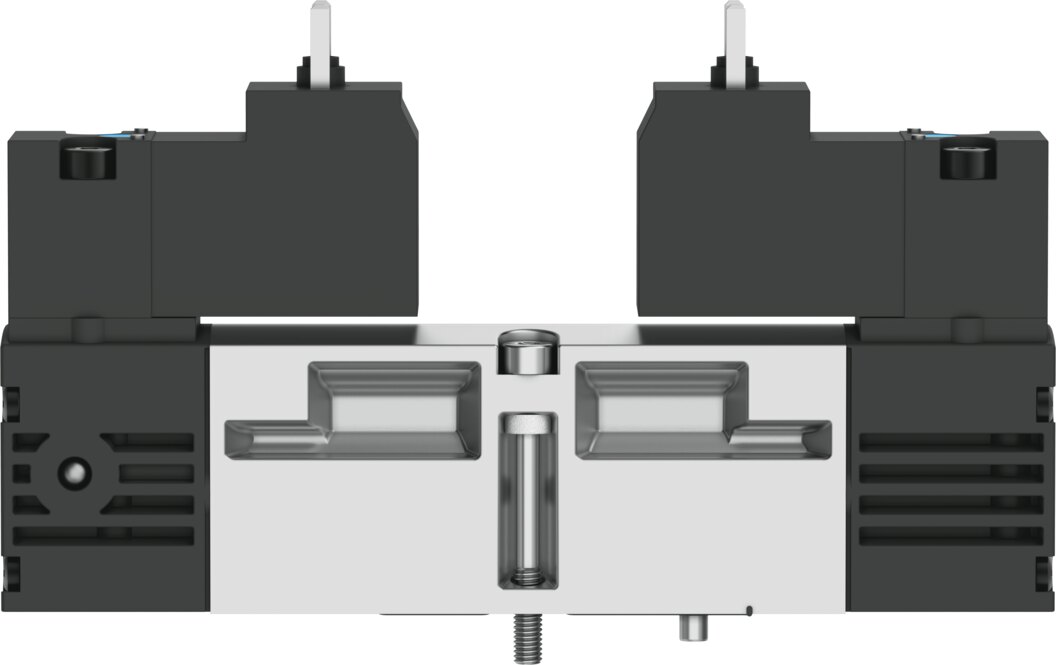

Solenoid valve 2x3/2 closed monostable, ISO 15407-1, width 18 mm VSVA-B-T32C-AZH-A2-1C1 - Festo 547069

Festo ✓ Original product Brand new

The standard valve VSVA-B-T32C-AZH-A2-1C1 works as a double 3/2-way valve, both closed, delivers up to 400 l/min nominal flow and mounts on sub-base size 18 mm to ISO 15407-1. Operating pressure 2 to 10 bar, 24 V DC coil with 1.8 W, electrical connection type C to DIN EN 175301-803, without PE conductor.

Net
€137.69
excl. VAT
Item FES-547069
Manufacturer no. VSVA-B-T32C-AZH-A2-1C1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 400 l/min nominal flow, the VSVA-B-T32C-AZH-A2-1C1 supplies actuators and mounts on sub-base size 18 mm to ISO 15407-1. Valve function: 2x3/2 closed monostable.

Benefits

  • Interchangeable to ISO 15407-1: Sub-base size 18 mm to ISO 15407-1, width 18 mm, function 2x3/2 closed monostable.
  • Flow rate: 400 l/min nominal flow to DIN 1343, 450 l/min on individual sub-base, 400 l/min pneumatically interlinked.
  • Electrical connection: type C to DIN EN 175301-803, without PE conductor.
  • Pressure range: 2 to 10 bar.
  • Degree of protection: IP65, NEMA 4.
  • Manual override: non-detenting.

Application

Two independent 3/2-way functions in one housing, closed at rest, for example for two single-acting actuators. Pilot air external, pilot pressure 3 to 10 bar, ambient temperature -5 to 50 °C, product weight 174 g, medium compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

TypeVSVA-B-T32C-AZH-A2-1C1
Festo part number547069

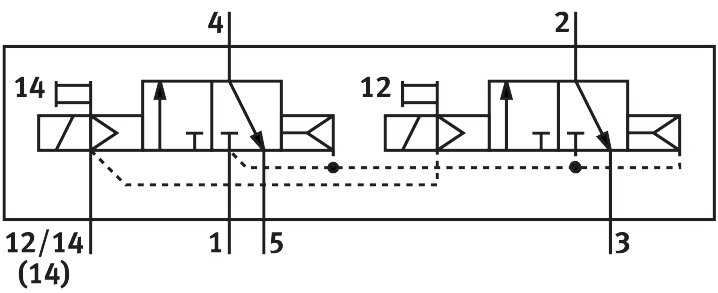

Valve function2x3/2 closed monostable
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate (standardised to DIN 1343)400 l/min
Pneumatic working portSub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563, G1/8
Operating voltage24 V DC
Operating pressure2 to 10 bar
DesignPiston gate valve
Type of resetPneumatic spring
Approvalc UL us - Recognised (Oil)
Degree of protectionIP65, NEMA 4
Nominal size5 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 15407-1, VDMA 24563
Manual overrideNon-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionNon-reversible
LapOverlap
Signal status displayLED
Pilot pressure3 to 10 bar
Flow rate of valve600 l/min
Flow rate of valve on individual sub-base450 l/min
Flow rate of pneumatically interlinked valve400 l/min
Switching time off21 ms
Switching time on13 ms
Duty cycle100%
Max. positive test pulse with 0 signal1800 µs
Max. negative test pulse with 1 signal800 µs
Characteristic coil data24 V DC: 1.8 W
Permissible voltage fluctuations-15% / +10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Max. tightening torque for valve mounting1 Nm
Product weight174 g
Electrical connectionType C, To DIN EN 175301-803, Without PE conductor
Type of mountingOn sub-base
Auxiliary pilot air port 12Sub-base size 18 mm to ISO 15407-1
Auxiliary pilot air port 14Sub-base size 18 mm to ISO 15407-1
Pilot exhaust port 82/84Ducted, Not ducted as per standard
Pneumatic connection, port 1Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 2Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 3Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 4Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 5Sub-base size 18 mm to ISO 15407-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingDie-cast aluminium
Material screwsSteel, Galvanised
Weight0.185 kg
ManufacturerFesto
Hersteller-NrVSVA-B-T32C-AZH-A2-1C1
EAN4052568185855
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]5
Seal materialHNBR, NBR
Housing materialDie-cast aluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]400
Actuation typeElectrical
NormDIN EN 175301-803, DIN ISO 15407-1, ISO 15218, VDMA 24563
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperature (max.)50
