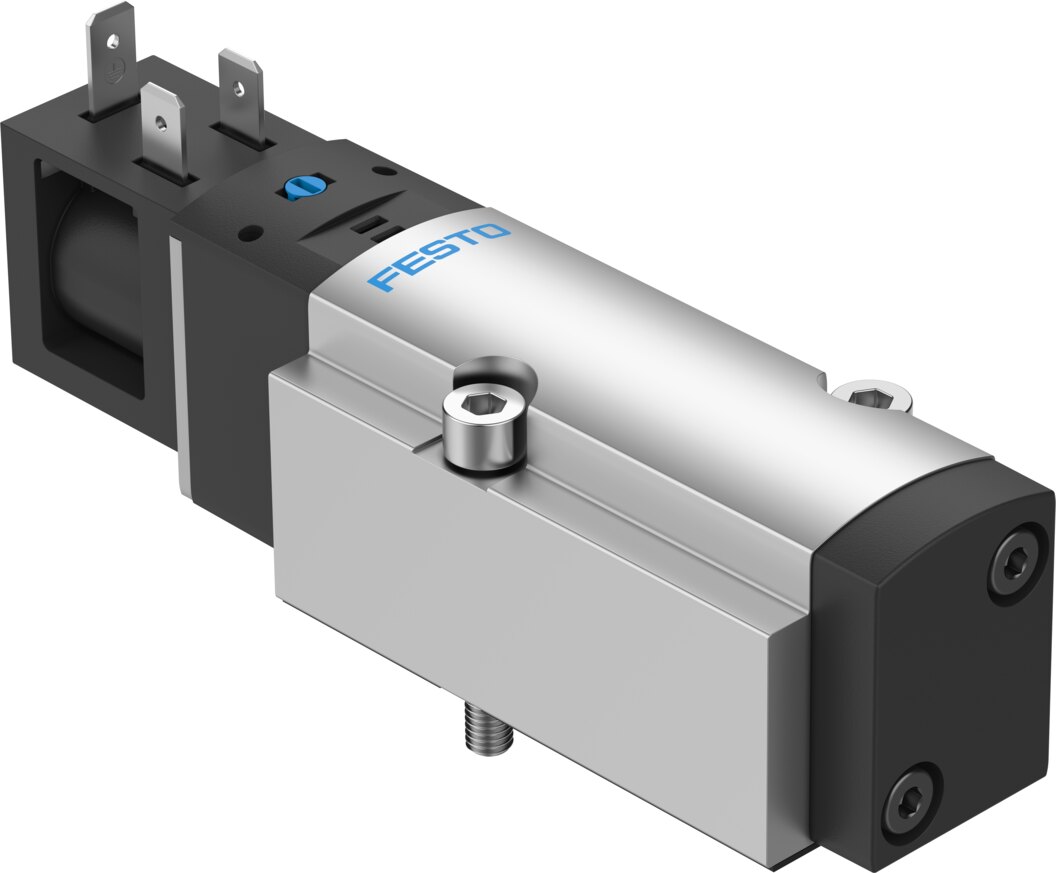

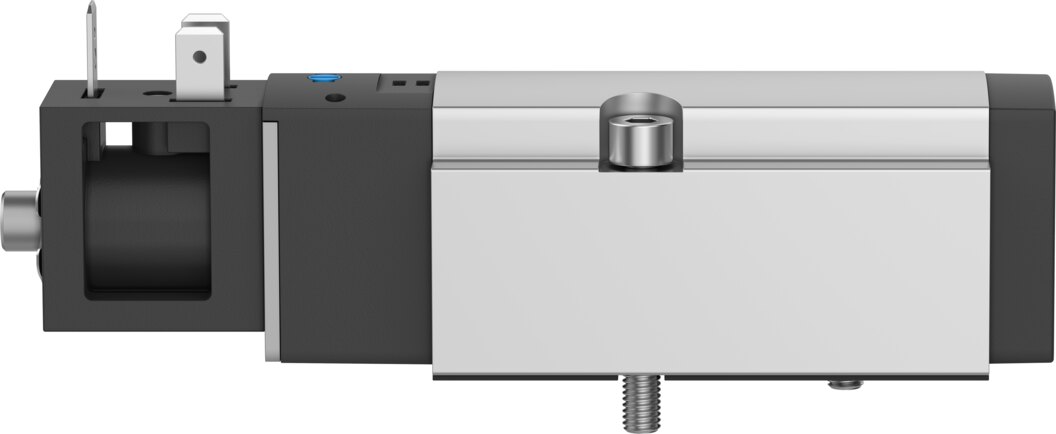

Solenoid valve 5/2-way, single solenoid, ISO 5599-1, width 38 mm VSVA-BK-M52-AD-D1-1B2 - Festo 8166593

Festo ✓ Original product Brand new

1200 l/min nominal flow on sub-base size 1 to ISO 5599-1: the Festo solenoid valve VSVA-BK-M52-AD-D1-1B2 operates as a 5/2-way valve, single solenoid. Operating pressure 3 to 8 bar, 24 V DC coil with 3.3 W, electrical connection type B to industry standard (11 mm).

Net
€67.53
excl. VAT
Item FES-8166593
Manufacturer no. VSVA-BK-M52-AD-D1-1B2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 1200 l/min nominal flow, the VSVA-BK-M52-AD-D1-1B2 supplies actuators and mounts on sub-base size 1 to ISO 5599-1. Valve function: 5/2-way, single solenoid.

Benefits

  • Interchangeable to ISO 5599-1: Sub-base size 1 to ISO 5599-1, width 38 mm, function 5/2-way, single solenoid.
  • Flow rate: 1200 l/min nominal flow to DIN 1343, 1341 l/min on individual sub-base, 1313 l/min pneumatically interlinked.
  • Manual override: detenting, non-detenting.
  • Switching times: 17,3 ms on, 20,7 ms off.
  • Coil: 24 V DC, 3.3 W, duty cycle 100%.
  • Electrical connection: type B to industry standard (11 mm).

Application

It controls double-acting cylinders and returns to its normal position when the signal is removed. The operating medium is compressed air to ISO 8573-1:2010 [7:4:4], permissible ambient temperature -5 to 50 °C, product weight 321 g.

Technical data

TypeVSVA-BK-M52-AD-D1-1B2
Festo part number8166593

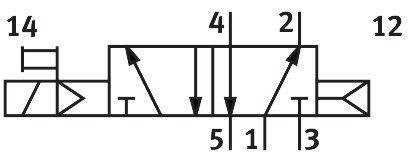

Valve function5/2-way, single solenoid
Type of actuationElectrical
Construction width38 mm
Valve size42 mm
Standard nominal flow rate (standardised to DIN 1343)1200 l/min
Pneumatic working portSub-base size 1 to ISO 5599-1
Operating voltage24 V DC
Operating pressure3 to 8 bar
DesignPiston slide with sealing ring
Type of resetPneumatic spring
Degree of protectionIP65, With plug socket, To IEC 60529
Nominal size6.3 mm
Grid dimension43 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting, Non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapUnderlap
Signal status displayWith accessories
B value0.26
C value5.87 l/sbar
Flow rate of valve1342 l/min
Flow rate of valve on individual sub-base1341 l/min
Flow rate of pneumatically interlinked valve1313 l/min
Switching time off20.7 ms
Switching time on17.3 ms
Duty cycle100%
Max. positive test pulse with 0 signal2500 µs
Max. negative test pulse with 1 signal1100 µs
Nominal operating voltage DC24 V
Characteristic coil data24 V DC: 3.3 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Max. tightening torque for valve mounting5 Nm
Product weight321 g
Electrical connectionType B, To industry standard (11 mm)
Type of mountingOn sub-base
Breather connectionNot ducted
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material piston slideWrought aluminium alloy
Material screwsGalvanised steel
Weight0.35 kg
ManufacturerFesto
Hersteller-NrVSVA-BK-M52-AD-D1-1B2
EAN4052568606046
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]6,3
Seal materialHNBR, NBR
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]1200
Actuation typeElectrical
NormISO 5599-1
SeriesVSVA
Betriebsdruck max [bar]8
Protection ratingIP65
Temperature (max.)50
