Solenoid valve 2x3/2 closed monostable, ISO 15407-1, width 26 mm VSVA-B-T32C-AZH-A1-1R5L - Festo 534542
The standard valve VSVA-B-T32C-AZH-A1-1R5L works as a double 3/2-way valve, both closed, delivers up to 900 l/min nominal flow and mounts on sub-base size 26 mm to ISO 15407-1. Operating pressure 3 to 10 bar, 24 V DC coil with low-current phase 1.0 W, high-current phase 2.4 W, electrical connection 3-pin, M12x1, central plug, round design.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Double 3/2-way valve, both closed VSVA-B-T32C-AZH-A1-1R5L by Festo: 900 l/min nominal flow, width 26 mm, designed to ISO 15407-1.
Benefits
- Standardised hole pattern: Sub-base size 26 mm to ISO 15407-1, so the 2x3/2 valve can be replaced without changing the sub-base.
- Flow rate: 900 l/min nominal flow to DIN 1343, 1000 l/min on individual sub-base, 900 l/min pneumatically interlinked.
- Degree of protection: IP65, NEMA 4.
- Additional function: safety shut-off.
- Manual override: non-detenting.
- Switching times: 20 ms on, 33 ms off.
Application
Two independent 3/2-way functions in one housing, closed at rest, for example for two single-acting actuators. The VSVA-B-T32C-AZH-A1-1R5L is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 50 °C ambient temperature, pilot air external.
Technical data
| Type | VSVA-B-T32C-AZH-A1-1R5L |
|---|---|
| Festo part number | 534542 |

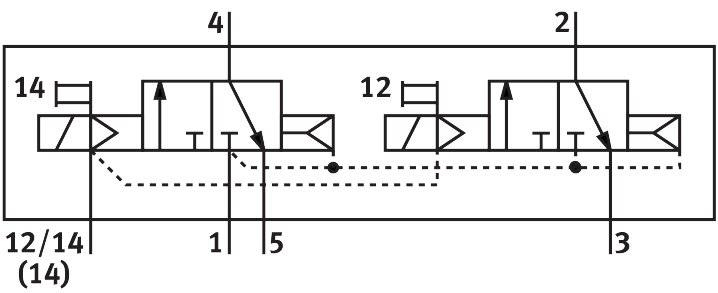

| Valve function | 2x3/2 closed monostable |
| Type of actuation | Electrical |
| Construction width | 26 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 900 l/min |
| Pneumatic working port | Sub-base size 26 mm to ISO 15407-1 |
| Operating voltage | 24 V DC |
| Operating pressure | 3 to 10 bar |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | RCM, c UL us - Recognised (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 9 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | Can be throttled, Via throttle plate, Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Non-reversible |
| Lap | Overlap |
| Reverse polarity protection | For all electrical connections |
| Additional functions | Safety shut-off |
| Signal status display | LED |
| Pilot pressure | 3 to 8 bar |
| B value | 0.25 |
| C value | 4 l/sbar |
| Flow rate of valve | 1250 l/min |
| Flow rate of valve on individual sub-base | 1000 l/min |
| Flow rate of pneumatically interlinked valve | 900 l/min |
| Switching time off | 33 ms |
| Switching time on | 20 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 400 µs |
| Max. negative test pulse with 1 signal | 100 µs |
| Nominal pick-up current per solenoid coil | 110 mA to 20 ms |
| Nominal current with current reduction | 30 mA after 20 ms |
| Characteristic coil data | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 to 50 °C |
| Relative air humidity | 0 - 90% |
| Protection against direct and indirect contact | PELV |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Max. tightening torque for valve mounting | 1.8 to 2.2 Nm |
| Product weight | 270 g |
| Electrical connection | 3-pin, M12x1, Central plug, Round design |
| Type of mounting | On sub-base, Via through-hole and screw |
| Pilot air port 12/14 | Sub-base size 26 mm to ISO 15407-1 |
| Pilot exhaust port 82/84 | Ducted, Not ducted as per standard, Either: |
| Note on materials | RoHS compliant |
| Material seals | Fluoro rubber, HNBR, NBR |
| Material housing | Die-cast aluminium |
| Weight | 0.25 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-T32C-AZH-A1-1R5L |
| EAN | 4052568005382 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 9 |
| Housing material | Die-cast aluminium |
| Medium | Compressed air |
| Function | 2x3/2 closed monostable |
| Flow rate [l/min] | 900 |
| Actuation type | Electrical |
| Norm | DIN ISO 15407-1 |
| Series | VSVA |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
