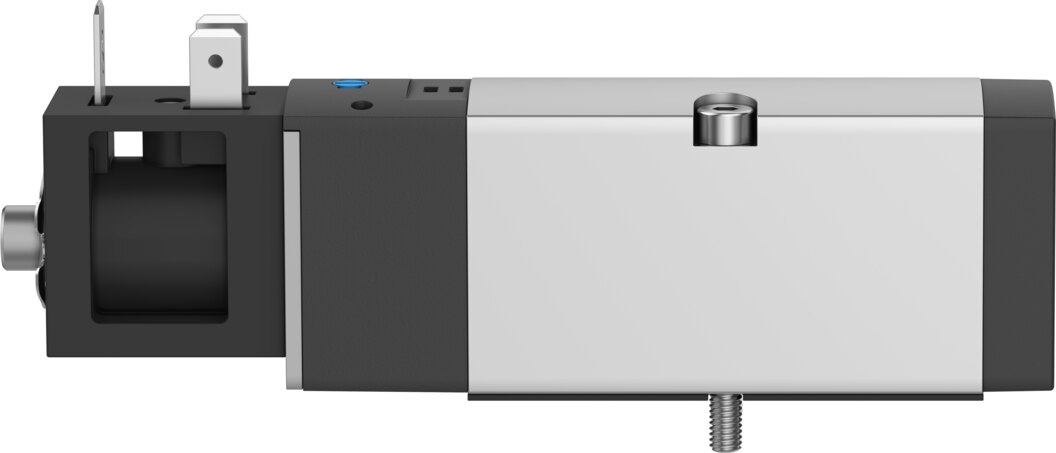

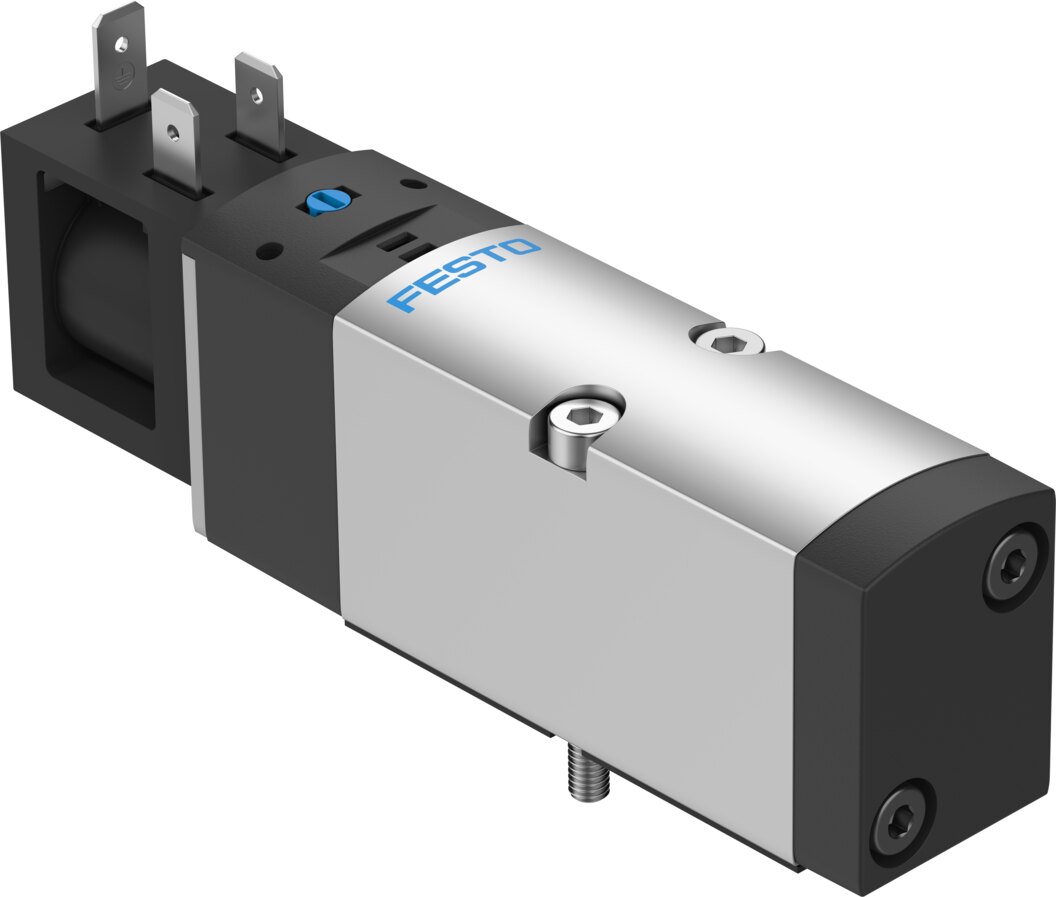

Solenoid valve 5/2-way, single solenoid, ISO 15407-1, width 26 mm VSVA-BK-M52-MD-A1-1B2 - Festo 8150869
The standard valve VSVA-BK-M52-MD-A1-1B2 works as a 5/2-way valve, single solenoid, delivers up to 900 l/min nominal flow and mounts on sub-base size 26 mm to ISO 15407-1. Operating pressure 3 to 8 bar, 24 V DC coil with 3.3 W, electrical connection type B to industry standard (11 mm).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 900 l/min nominal flow, the VSVA-BK-M52-MD-A1-1B2 supplies actuators and mounts on sub-base size 26 mm to ISO 15407-1. Valve function: 5/2-way, single solenoid.
Benefits
- Standardised hole pattern: Sub-base size 26 mm to ISO 15407-1, so the 5/2 valve can be replaced without changing the sub-base.
- Flow rate: 900 l/min nominal flow to DIN 1343, 915 l/min on individual sub-base, 880 l/min pneumatically interlinked.
- Degree of protection: IP65, with plug socket to IEC 60529.
- Manual override: detenting, non-detenting.
- Switching times: 16,2 ms on, 22,8 ms off.
- Coil: 24 V DC, 3.3 W, duty cycle 100%.
Application
It controls double-acting cylinders and returns to its normal position when the signal is removed. The VSVA-BK-M52-MD-A1-1B2 is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 50 °C ambient temperature, pilot air internal.
Technical data
| Type | VSVA-BK-M52-MD-A1-1B2 |
|---|---|
| Festo part number | 8150869 |
| Valve function | 5/2-way, single solenoid |
| Type of actuation | Electrical |
| Valve size | 26 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 900 l/min |
| Pneumatic working port | Sub-base size 26 mm to ISO 15407-1 |
| Operating voltage | 24 V DC |
| Operating pressure | 3 to 8 bar |
| Design | Piston slide with sealing ring |
| Type of reset | Mechanical spring |
| Degree of protection | IP65, With plug socket, To IEC 60529 |
| Nominal size | 6.4 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1 |
| Manual override | Detenting, Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Lap | Underlap |
| Signal status display | With accessories |
| B value | 0.29 |
| C value | 3.98 l/sbar |
| Flow rate of valve | 915 l/min |
| Flow rate of valve on individual sub-base | 915 l/min |
| Flow rate of pneumatically interlinked valve | 880 l/min |
| Switching time off | 22.8 ms |
| Switching time on | 16.2 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2500 µs |
| Max. negative test pulse with 1 signal | 1100 µs |
| Nominal operating voltage DC | 24 V |
| Characteristic coil data | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -5 to 50 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Max. tightening torque for valve mounting | 2.4 Nm |
| Product weight | 242 g |
| Electrical connection | Type B, To industry standard (11 mm) |
| Type of mounting | On sub-base |
| Breather connection | Not ducted |
| Pneumatic connection, port 1 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 2 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 3 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 4 | Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 5 | Sub-base size 26 mm to ISO 15407-1 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Material piston slide | Wrought aluminium alloy |
| Material screws | Galvanised steel |
| Weight | 0.26 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-BK-M52-MD-A1-1B2 |
| EAN | 4052568605797 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 6,4 |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Flow rate [l/min] | 900 |
| Actuation type | Electrical |
| Norm | DIN ISO 15407-1 |
| Series | VSVA |
| Betriebsdruck max [bar] | 8 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
