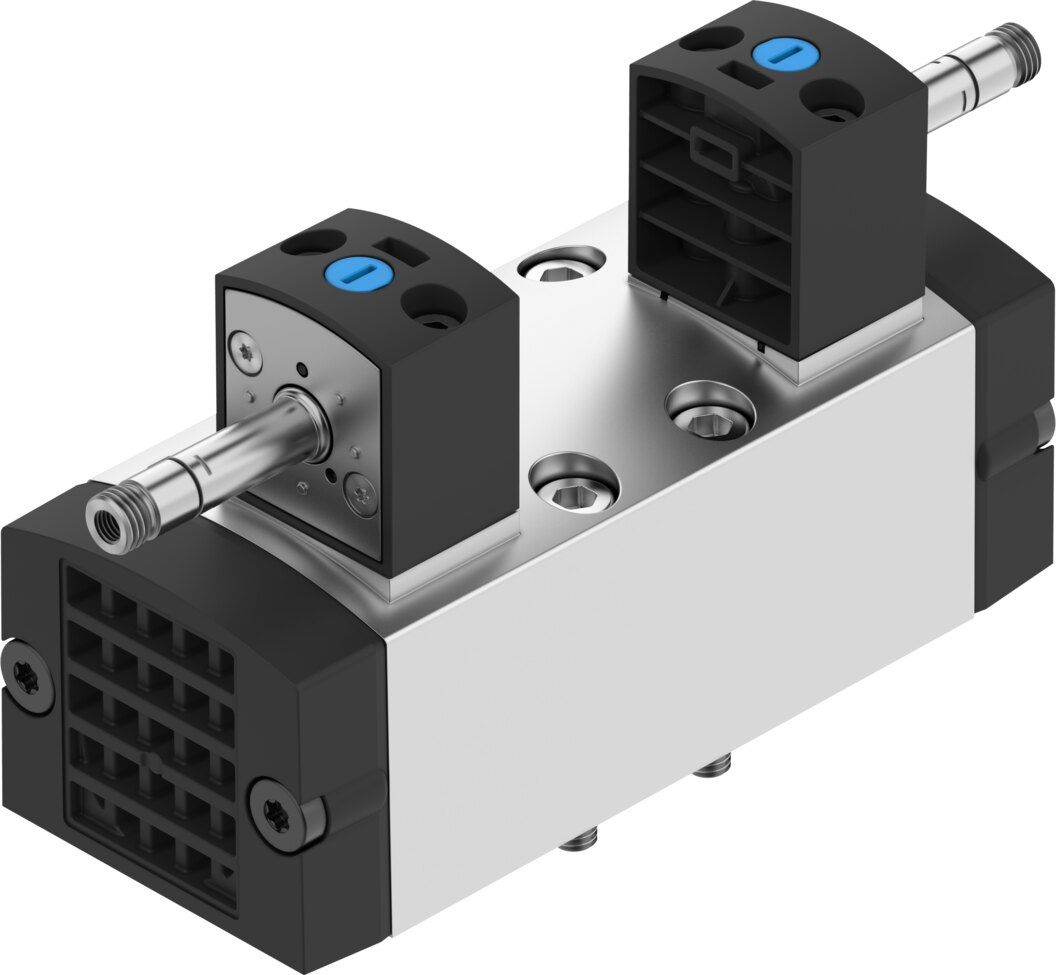

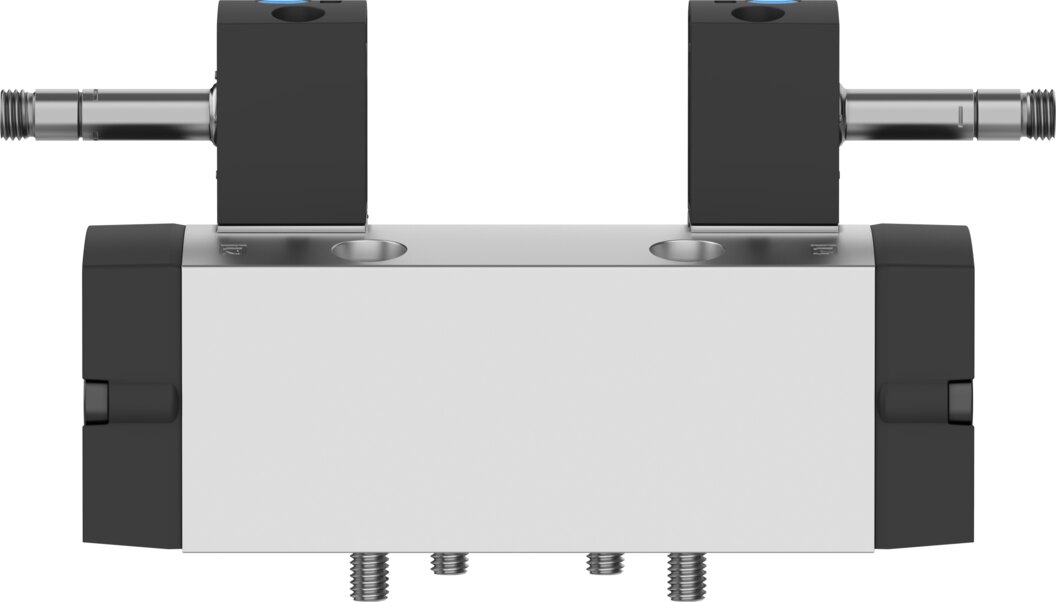

Solenoid valve 2x3/2 closed monostable, ISO 5599-1, width 52 mm VSVA-B-T32C-AZD-D2-F8 - Festo 8198606

Festo ✓ Original product Brand new

3100 l/min nominal flow on sub-base size 2 to ISO 5599-1: the Festo solenoid valve VSVA-B-T32C-AZD-D2-F8 operates as a double 3/2-way valve, both closed. Operating pressure 3 to 10 bar, switching time 25 ms on, 50 ms off.

Net
€205.52
excl. VAT
Item FES-8198606
Manufacturer no. VSVA-B-T32C-AZD-D2-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

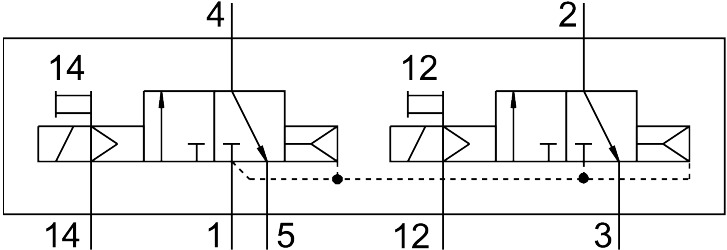

Double 3/2-way valve, both closed VSVA-B-T32C-AZD-D2-F8 by Festo: 3100 l/min nominal flow, width 52 mm, designed to ISO 5599-1.

Benefits

  • Interchangeable to ISO 5599-1: Sub-base size 2 to ISO 5599-1, width 52 mm, function 2x3/2 closed monostable.
  • Flow rate: 3100 l/min nominal flow to ISO 8778, 2500 l/min on individual sub-base, 2300 l/min pneumatically interlinked.
  • Switching times: 25 ms on, 50 ms off, up to 5 Hz switching frequency.
  • Pressure range: 3 to 10 bar.
  • Degree of protection: IP65, NEMA 4.
  • Manual override: detenting.

Application

Two independent 3/2-way functions in one housing, closed at rest, for example for two single-acting actuators. The VSVA-B-T32C-AZD-D2-F8 is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -10 to 50 °C ambient temperature, pilot air external.

Technical data

TypeVSVA-B-T32C-AZD-D2-F8
Festo part number8198606
Valve function2x3/2 closed monostable
Type of actuationElectrical
Construction width52 mm
Nominal flow rate standardised according to ISO 87783100 l/min
Pneumatic working portSub-base size 2 to ISO 5599-1
Operating pressure3 to 10 bar
DesignPiston gate valve
Type of resetPneumatic spring
Degree of protectionIP65, NEMA 4
Nominal size11.5 mm
Grid dimension53 mm
Exhaust-air functionCan be throttled, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
LapOverlap
Pilot pressure3 to 10 bar
Suitability for vacuumNo
B value0.34
C value6.267 l/sbar
Flow rate of valve2900 l/min
Flow rate of valve on individual sub-base2500 l/min
Flow rate of pneumatically interlinked valve2300 l/min
Max. switching frequency5 Hz
Switching time off50 ms
Switching time on25 ms
Duty cycle100%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 50 °C
Max. tightening torque for valve mounting2 Nm
Product weight680 g
Type of mountingOn sub-base
Pilot exhaust port 82M5, Not ducted
Pilot exhaust port 84M5, Not ducted
Pilot air port 12Sub-base size 2 to ISO 5599-1
Pilot air port 14Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Material screwsSteel
ManufacturerFesto
Hersteller-NrVSVA-B-T32C-AZD-D2-F8
EAN4052568656485
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]11,5
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]3100
Actuation typeElectrical
NormISO 5599-1, ISO 15218
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich-10-50 °C
Temperature (max.)50
