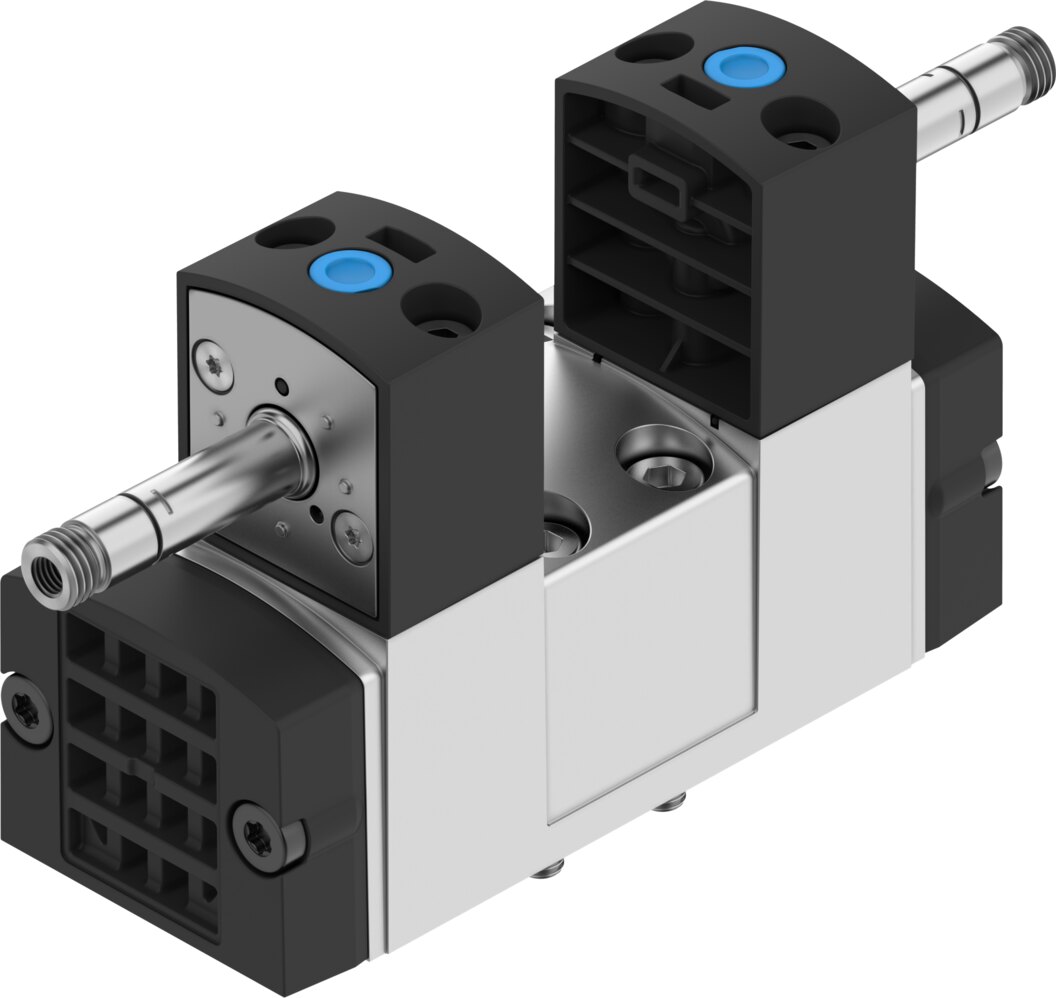

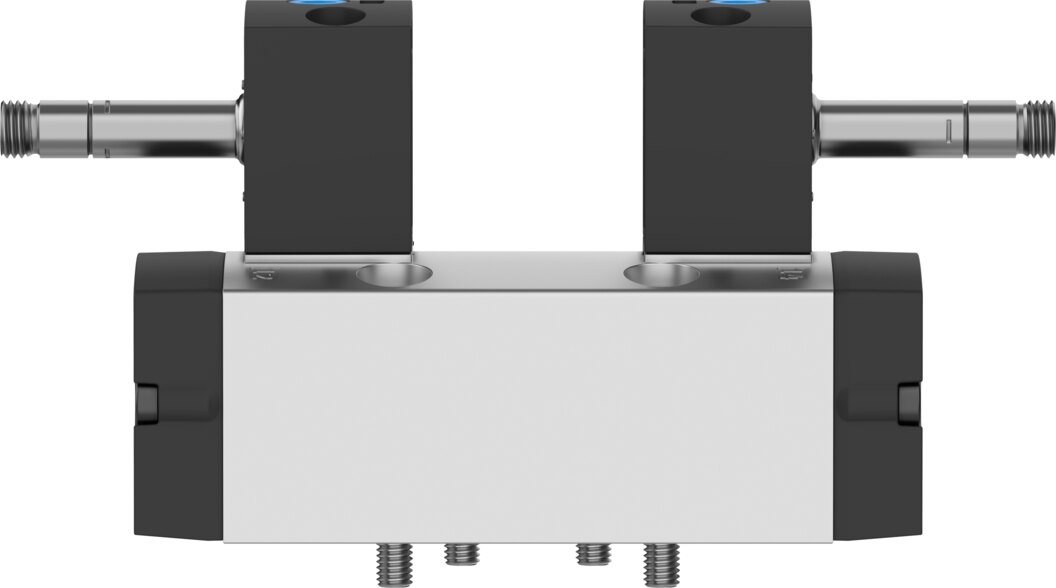

Solenoid valve 5/3-way, pressurised, ISO 5599-1, width 42 mm VSVA-B-P53U-ZH-D1-F8 - Festo 8198570
The standard valve VSVA-B-P53U-ZH-D1-F8 works as a 5/3-way valve, mid-position pressurised, delivers up to 1600 l/min nominal flow and mounts on sub-base size 1 to ISO 5599-1. Operating pressure -0.9 to 16 bar, switching time 22 ms on, 55 ms off.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
5/3-way valve, mid-position pressurised VSVA-B-P53U-ZH-D1-F8 by Festo: 1600 l/min nominal flow, width 42 mm, designed to ISO 5599-1.
Benefits
- Interchangeable to ISO 5599-1: Sub-base size 1 to ISO 5599-1, width 42 mm, function 5/3-way, pressurised.
- Flow rate: 1600 l/min nominal flow to ISO 8778, 1300 l/min on individual sub-base, 1200 l/min pneumatically interlinked.
- Switching times: 22 ms on, 55 ms off, up to 5 Hz switching frequency.
- Pressure range: -0.9 to 16 bar, suitable for vacuum.
- Degree of protection: IP65, NEMA 4.
- Manual override: non-detenting.
Application
In the mid-position both working ports are pressurised and the piston is loaded from both sides. Pilot air external, pilot pressure 3 to 10 bar, ambient temperature -10 to 50 °C, product weight 405 g, medium compressed air to ISO 8573-1:2010 [7:4:4].
Technical data
| Type | VSVA-B-P53U-ZH-D1-F8 |
|---|---|
| Festo part number | 8198570 |

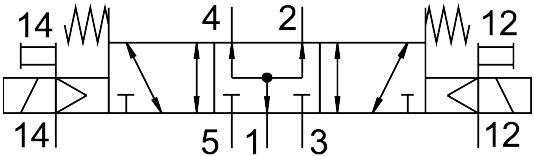

| Valve function | 5/3-way, pressurised |
| Type of actuation | Electrical |
| Construction width | 42 mm |
| Nominal flow rate standardised according to ISO 8778 | 1600 l/min |
| Pneumatic working port | Sub-base size 1 to ISO 5599-1 |
| Operating pressure | -0.9 to 16 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 8 mm |
| Grid dimension | 43 mm |
| Exhaust-air function | Can be throttled, Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Reversible |
| Lap | Overlap |
| Pilot pressure | 3 to 10 bar |
| Suitability for vacuum | Yes |
| B value | 0.14 |
| C value | 6.799 l/sbar |
| Flow rate of valve | 1500 l/min |
| Flow rate of valve on individual sub-base | 1300 l/min |
| Valve flow rate, pneumatically linked, flow optimized | 1400 l/min |
| Flow rate of pneumatically interlinked valve | 1200 l/min |
| Max. switching frequency | 5 Hz |
| Switching time off | 55 ms |
| Switching time on | 22 ms |
| Switching time reversal | 27 ms |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 50 °C |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 85 dB(A) |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 50 °C |
| Max. tightening torque for valve mounting | 1 Nm |
| Product weight | 405 g |
| Type of mounting | On sub-base |
| Pilot exhaust port 82 | M5, Not ducted |
| Pilot exhaust port 84 | M5, Not ducted |
| Pilot air port 12 | Sub-base size 1 to ISO 5599-1 |
| Pilot air port 14 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 1 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 2 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 3 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 4 | Sub-base size 1 to ISO 5599-1 |
| Pneumatic connection, port 5 | Sub-base size 1 to ISO 5599-1 |
| Pilot control interface | To ISO 15218 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-P53U-ZH-D1-F8 |
| EAN | 4052568656195 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 8 |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air |
| Function | 5/3 pressurised |
| Flow rate [l/min] | 1600 |
| Actuation type | Electrical |
| Norm | ISO 5599-1, ISO 15218 |
| Series | VSVA |
| Betriebsdruck max [bar] | 16 |
| Protection rating | IP65 |
| Temperaturbereich | -10-50 °C |
| Temperature (max.) | 50 |
