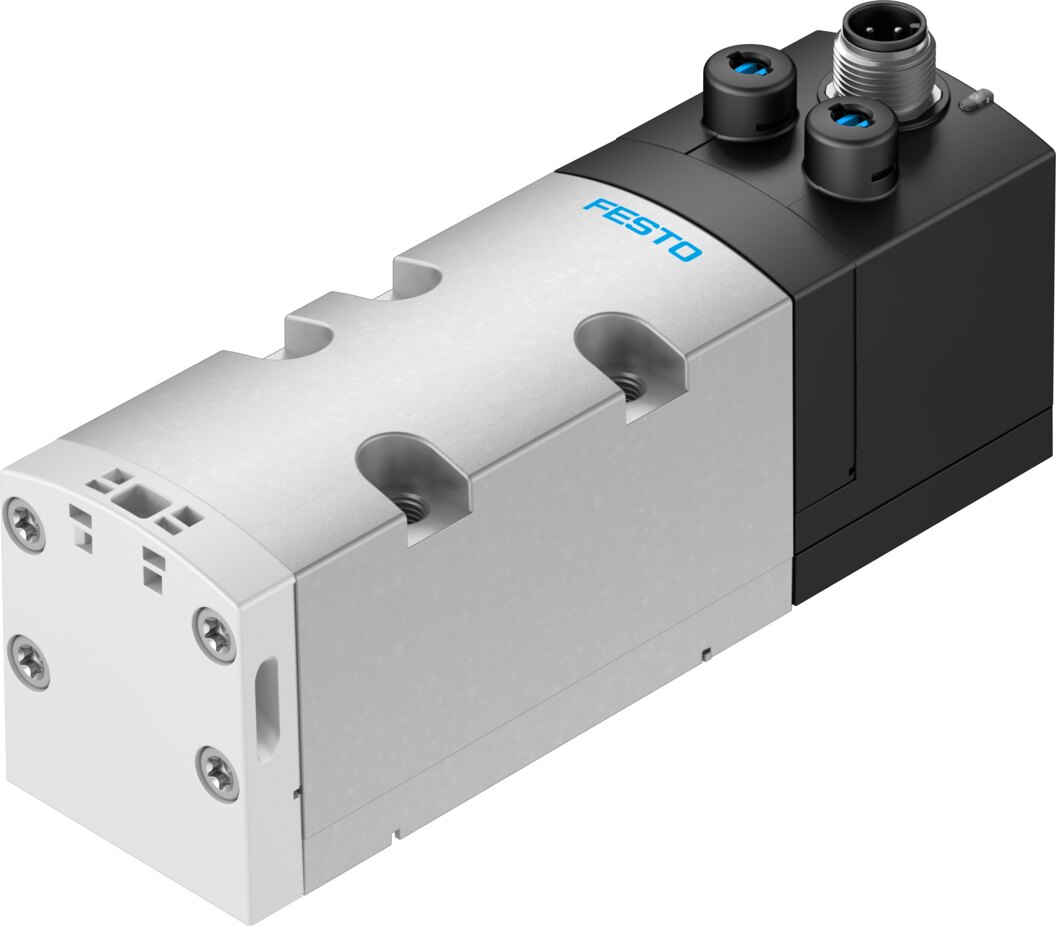

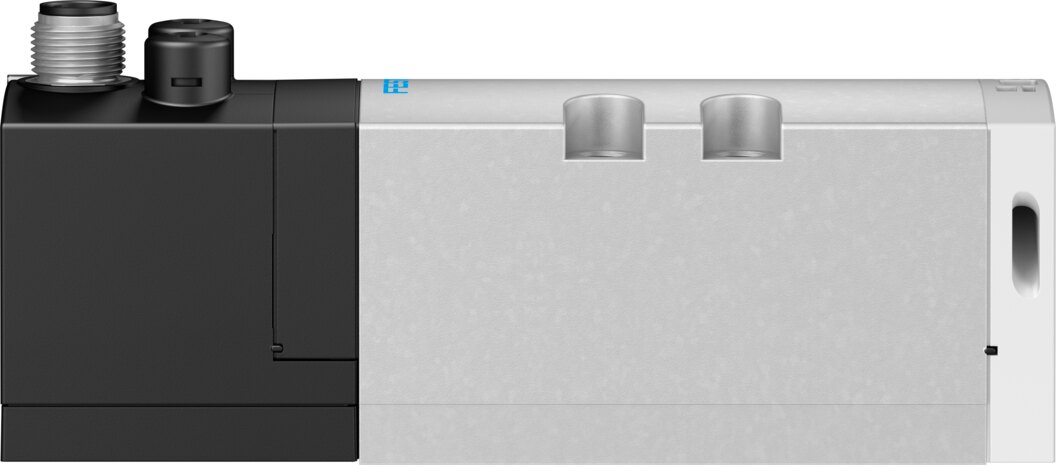

Solenoid valve 5/3-way, closed, ISO 5599-1, width 42 mm VSVA-B-P53C-D-D1-1R5L - Festo 561366

Festo ✓ Original product Brand new

As a 5/3-way valve, mid-position closed for sub-base size 1 to ISO 5599-1, the Festo VSVA-B-P53C-D-D1-1R5L provides a nominal flow rate of 1300 l/min. Operating pressure 3 to 10 bar, 24 V DC coil with 1.6 W, electrical connection 3-pin, M12x1, central plug, round design.

Net
€203.34
excl. VAT
Item FES-561366
Manufacturer no. VSVA-B-P53C-D-D1-1R5L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

5/3-way valve, mid-position closed VSVA-B-P53C-D-D1-1R5L by Festo: 1300 l/min nominal flow, width 42 mm, designed to ISO 5599-1.

Benefits

  • Standardised hole pattern: Sub-base size 1 to ISO 5599-1, so the 5/3 valve can be replaced without changing the sub-base.
  • Flow rate: 1300 l/min nominal flow to DIN 1343, 1400 l/min on individual sub-base, 1300 l/min pneumatically interlinked.
  • Switching times: 22 ms on, 65 ms off.
  • Coil: 24 V DC, 1.6 W, duty cycle 100%.
  • Electrical connection: 3-pin, M12x1, central plug, round design.
  • Pressure range: 3 to 10 bar.

Application

In the mid-position all ports are blocked and a cylinder holds its position. The VSVA-B-P53C-D-D1-1R5L is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 50 °C ambient temperature, pilot air internal.

Technical data

TypeVSVA-B-P53C-D-D1-1R5L
Festo part number561366
Valve function5/3-way, closed
Type of actuationElectrical
Construction width42 mm
Standard nominal flow rate (standardised to DIN 1343)1300 l/min
Pneumatic working portSub-base size 1 to ISO 5599-1, G1/4
Operating voltage24 V DC
Operating pressure3 to 10 bar
DesignPiston gate valve
Approvalc UL us - Recognised (Oil)
Degree of protectionIP65, NEMA 4
Nominal size11 mm
Grid dimension43 mm
Exhaust-air functionCan be throttled, Via throttle plate, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting, Non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Signal status displayLED
Flow rate of valve1900 l/min
Flow rate of valve on individual sub-base1400 l/min
Flow rate of pneumatically interlinked valve1300 l/min
Switching time off65 ms
Switching time on22 ms
Duty cycle100%
Max. positive test pulse with 0 signal1400 µs
Max. negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 1.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Relative air humidity0 - 90%
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight456 g
Electrical connection3-pin, M12x1, Central plug, Round design
Type of mountingOn sub-base
Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1
Note on materialsRoHS compliant
Material sealsFluoro rubber, HNBR, NBR
Material housingDie-cast aluminium, PA
Material screwsSteel, Galvanised
Weight0.49 kg
ManufacturerFesto
Hersteller-NrVSVA-B-P53C-D-D1-1R5L
EAN4052568208769
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]11
MediumCompressed air
Function5/3 closed
Flow rate [l/min]1300
Actuation typeElectrical
NormISO 5599-1
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperature (max.)50
