Solenoid valve VSVA-BT-M32CS1-MYE-A2-1T5L-PA - Festo 8066569
Net
excl. VAT
€293.78
Item
FES-8066569
Manufacturer no.
VSVA-BT-M32CS1-MYE-A2-1T5L-PA
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

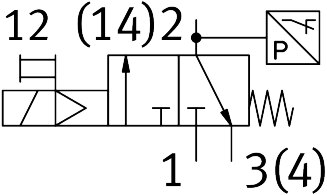

| Valve function | 3/2-way, single solenoid, closed |
|---|---|
| Type of actuation | Electrical |
| Construction width | 18 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 125 l/min |
| Standard nominal flow rate for exhaust | 125 l/min |
| Operating pressure | 3 ... 10 bar |
| Design | Poppet seat |
| Type of reset | Mechanical spring, Pneumatic spring |
| Degree of protection | IP65 |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, Self-resetting via electrical control signal |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| lap | Underlap |
| Additional functions | Holding current reduction |
| Signal status display | Yellow LED, valve control, Green LED, pressure switch, exhausted status |
| Switching position sensing | Via pressure switch, exhausted status |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000 µs |
| Max. negative test pulse with 1 signal | 1200 µs |
| Nominal pick-up current per solenoid coil | 60 mA to 35 ms |
| Nominal operating voltage DC | 24 V |
| Nominal current with current reduction | 11 mA after 35 ms |
| Characteristic coil data | 24 V DC: 1.6 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 ... 50 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 ... 50 °C |
| Mean time to failure (MTTF), subcomponent | 452 years, pressure switch |
| Product weight | 110 g |
| Switch-off point min. | 0.05 bar |
| Switch-on point | 0.2 bar |
| Switch-on point max. | 0.3 bar |
| Electrical connection | Plug-in |
| Type of mounting | On sub-base |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Reinforced PA |
| Material screws | Galvanised steel |
| Switching element function | N/C contact |
| Weight | 0.125 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-BT-M32CS1-MYE-A2-1T5L-PA |
| EAN | 4052568457259 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
