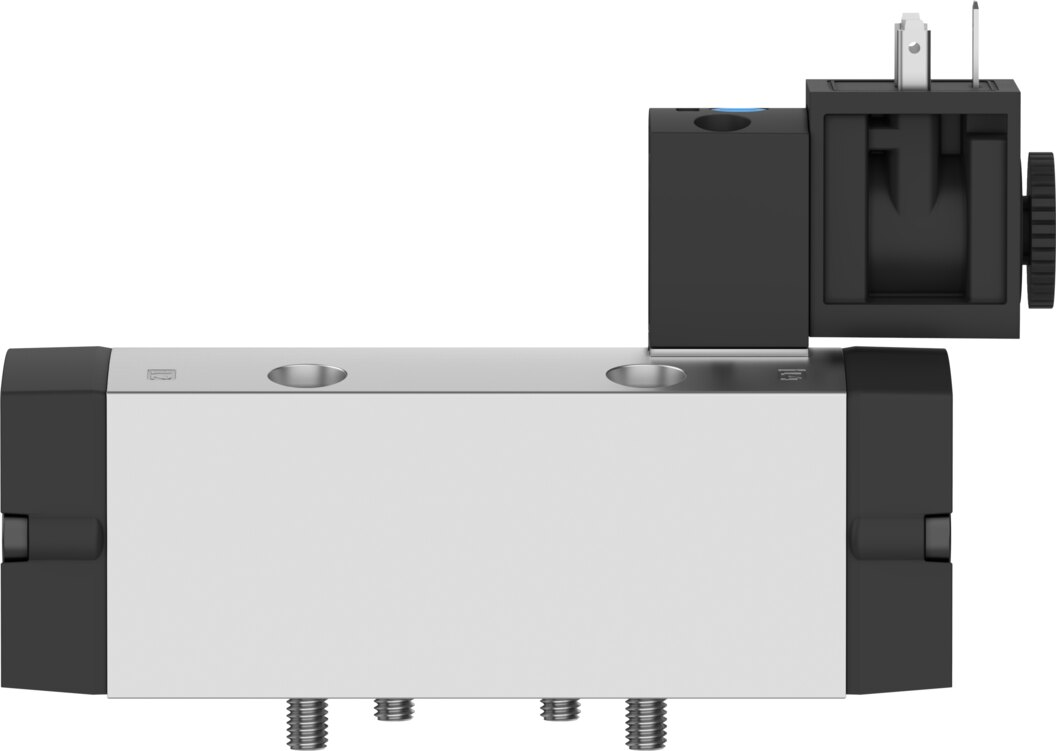

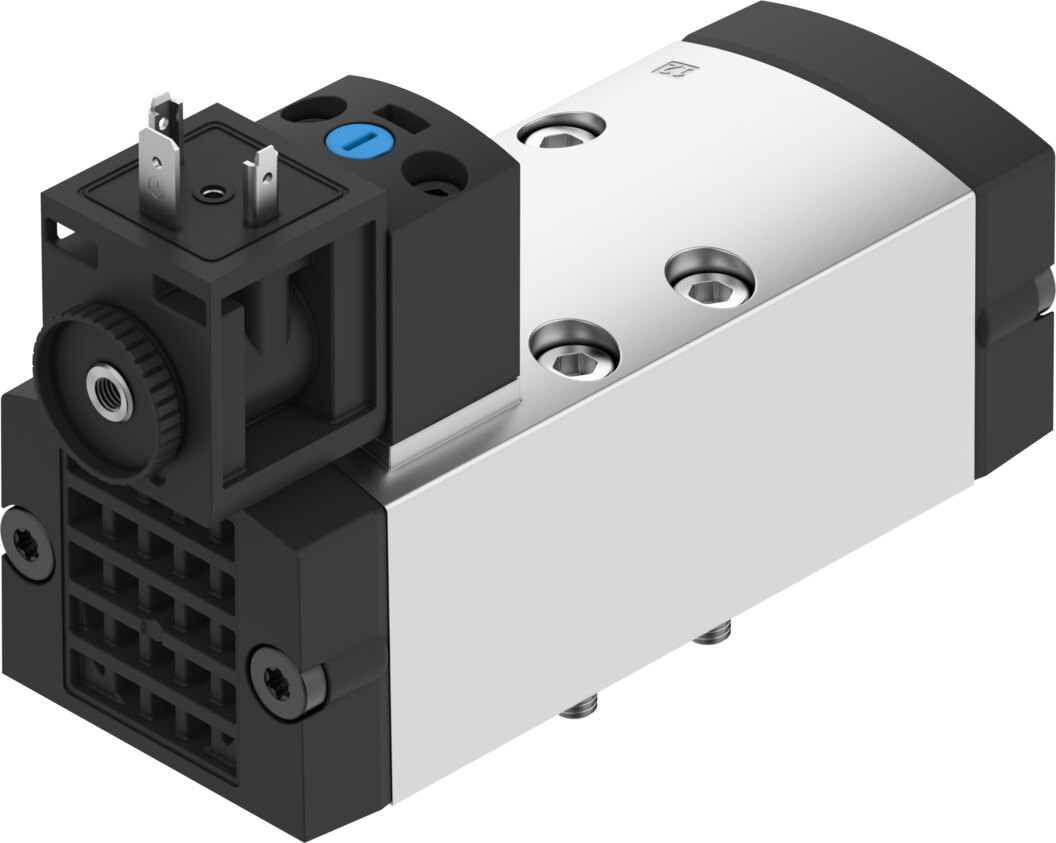

Solenoid valve 5/2-way, single solenoid, ISO 5599-1, width 52 mm VSVA-B-M52-MD-D2-F8-1A1 - Festo 8033788

Festo ✓ Original product Brand new

As a 5/2-way valve, single solenoid for sub-base size 2 to ISO 5599-1, the Festo VSVA-B-M52-MD-D2-F8-1A1 provides a nominal flow rate of 4100 l/min. Operating pressure 3 to 10 bar, 24 V DC coil with 2.6 W, electrical connection type A to EN 175301-803.

Net
€164.32
excl. VAT
Item FES-8033788
Manufacturer no. VSVA-B-M52-MD-D2-F8-1A1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo solenoid valve VSVA-B-M52-MD-D2-F8-1A1 from the VSVA series is a 5/2-way valve, single solenoid to ISO 5599-1 with 4100 l/min nominal flow.

Benefits

  • Interchangeable to ISO 5599-1: Sub-base size 2 to ISO 5599-1, width 52 mm, function 5/2-way, single solenoid.
  • Flow rate: 4100 l/min nominal flow to ISO 8778, 3200 l/min on individual sub-base, 2700 l/min pneumatically interlinked.
  • Coil: 24 V DC, 2.6 W, duty cycle 100%.
  • Electrical connection: type A to EN 175301-803.
  • Pressure range: 3 to 10 bar.
  • Degree of protection: IP65, NEMA 4.

Application

It controls double-acting cylinders and returns to its normal position when the signal is removed. Pilot air internal, pilot pressure 3 to 10 bar, ambient temperature -10 to 50 °C, product weight 713 g, medium compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

TypeVSVA-B-M52-MD-D2-F8-1A1
Festo part number8033788
Valve function5/2-way, single solenoid
Type of actuationElectrical
Construction width52 mm
Nominal flow rate standardised according to ISO 87784100 l/min
Pneumatic working portSub-base size 2 to ISO 5599-1
Operating voltage24 V DC
Operating pressure3 to 10 bar
DesignPiston gate valve
Type of resetMechanical spring
Degree of protectionIP65, NEMA 4
Nominal size11.5 mm
Grid dimension53 mm
Exhaust-air functionCan be throttled, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
LapOverlap
Pilot pressure3 to 10 bar
Suitability for vacuumNo
B value0.3
C value8.168 l/sbar
Flow rate of valve3800 l/min
Flow rate of valve on individual sub-base3200 l/min
Flow rate of pneumatically interlinked valve2700 l/min
Max. switching frequency1 Hz
Switching time off83 ms
Switching time on23 ms
Duty cycle100%
Characteristic coil data24 V DC: 2.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 50 °C
Relative air humidity0 - 90%
Sound pressure level85 dB(A)
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 50 °C
Max. tightening torque for valve mounting2 Nm
Product weight713 g
Electrical connectionType A, To EN 175301-803
Type of mountingOn sub-base
Pilot exhaust port 82M5, Not ducted
Pilot exhaust port 84M5, Not ducted
Pilot air port 12Sub-base size 2 to ISO 5599-1
Pilot air port 14Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsNBR
Material housingDie-cast aluminium
Material screwsSteel
Weight0.75 kg
ManufacturerFesto
Hersteller-NrVSVA-B-M52-MD-D2-F8-1A1
EAN4052568655464
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]11,5
Seal materialNBR
Housing materialDie-cast aluminium
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]4100
Actuation typeElectrical
NormDIN EN 175301-803, ISO 5599-1, ISO 15218
SeriesVSVA
Betriebsdruck max [bar]10
Protection ratingIP65
Temperaturbereich-10-50 °C
Temperature (max.)50
