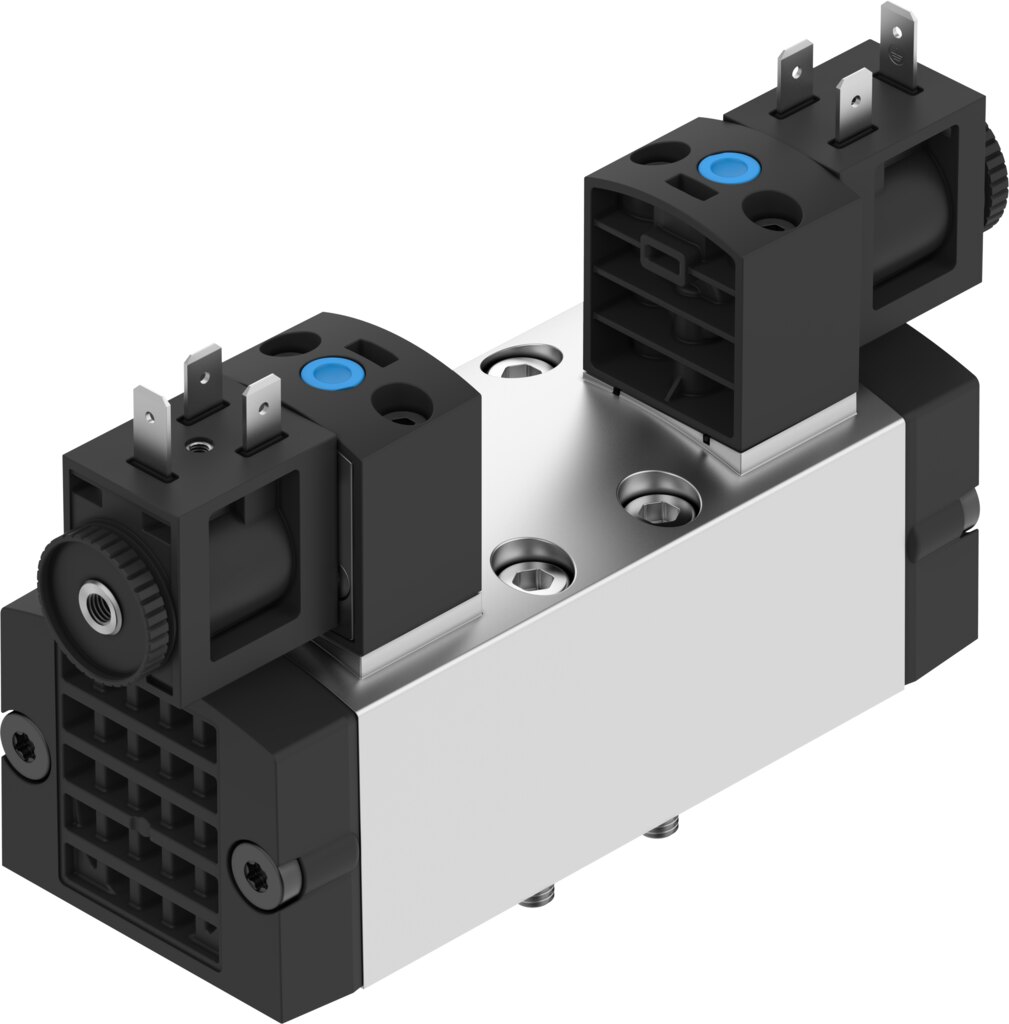

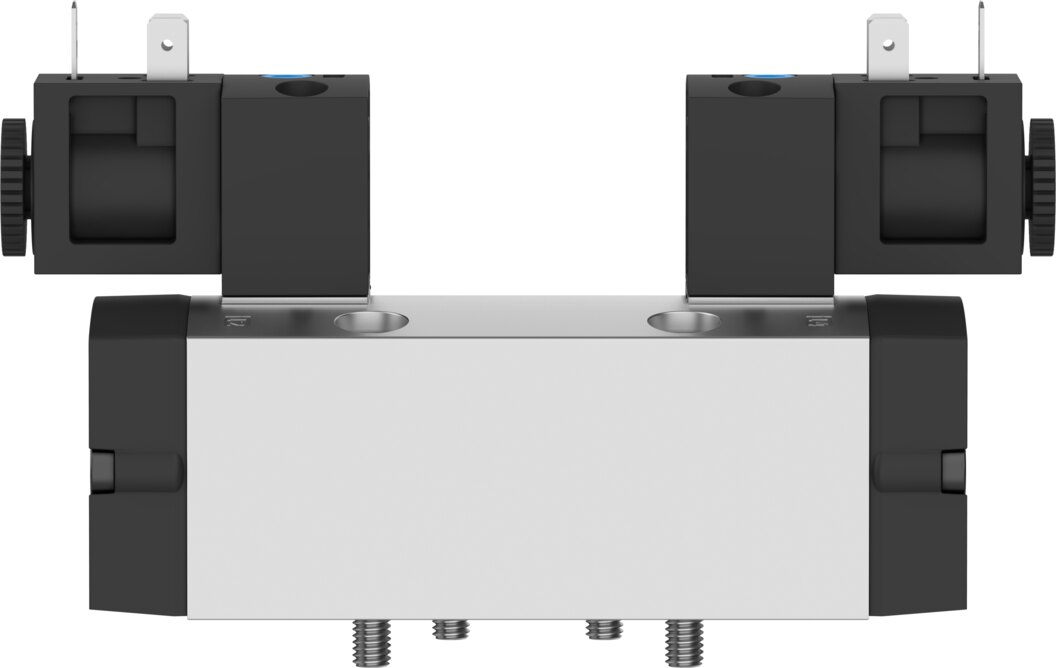

Solenoid valve 5/2-way, double solenoid, ISO 5599-1, width 52 mm VSVA-B-B52-H-D2-F8-1B2 - Festo 8033805
As a 5/2-way valve, double solenoid for sub-base size 2 to ISO 5599-1, the Festo VSVA-B-B52-H-D2-F8-1B2 provides a nominal flow rate of 4000 l/min. Operating pressure 3 to 10 bar, 24 V DC coil with 3.3 W, electrical connection type B.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo solenoid valve VSVA-B-B52-H-D2-F8-1B2 from the VSVA series is a 5/2-way valve, double solenoid to ISO 5599-1 with 4000 l/min nominal flow.
Benefits
- Interchangeable to ISO 5599-1: Sub-base size 2 to ISO 5599-1, width 52 mm, function 5/2-way, double solenoid.
- Flow rate: 4000 l/min nominal flow to ISO 8778, 3100 l/min on individual sub-base, 2600 l/min pneumatically interlinked.
- Electrical connection: type B.
- Pressure range: 3 to 10 bar.
- Degree of protection: IP65, NEMA 4.
- Manual override: non-detenting.
Application
As an impulse valve it holds the last switching position even if the signal drops out. The VSVA-B-B52-H-D2-F8-1B2 is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -10 to 50 °C ambient temperature, pilot air internal.
Technical data
| Type | VSVA-B-B52-H-D2-F8-1B2 |
|---|---|
| Festo part number | 8033805 |
| Valve function | 5/2-way, double solenoid |
| Type of actuation | Electrical |
| Construction width | 52 mm |
| Nominal flow rate standardised according to ISO 8778 | 4000 l/min |
| Pneumatic working port | Sub-base size 2 to ISO 5599-1 |
| Operating voltage | 24 V DC |
| Operating pressure | 3 to 10 bar |
| Design | Piston gate valve |
| Degree of protection | IP65, NEMA 4 |
| Nominal size | 11.5 mm |
| Grid dimension | 53 mm |
| Exhaust-air function | Can be throttled, Via individual sub-base |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Lap | Overlap |
| Pilot pressure | 3 to 10 bar |
| Suitability for vacuum | No |
| B value | 0.2 |
| C value | 8.578 l/sbar |
| Flow rate of valve | 3700 l/min |
| Flow rate of valve on individual sub-base | 3100 l/min |
| Flow rate of pneumatically interlinked valve | 2600 l/min |
| Max. switching frequency | 5 Hz |
| Switching time reversal | 23 ms |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 50 °C |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 85 dB(A) |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 50 °C |
| Max. tightening torque for valve mounting | 2 Nm |
| Product weight | 722 g |
| Electrical connection | Type B |
| Type of mounting | On sub-base |
| Pilot exhaust port 82 | M5, Not ducted |
| Pilot exhaust port 84 | M5, Not ducted |
| Pilot air port 12 | Sub-base size 2 to ISO 5599-1 |
| Pilot air port 14 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 1 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 2 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 3 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 4 | Sub-base size 2 to ISO 5599-1 |
| Pneumatic connection, port 5 | Sub-base size 2 to ISO 5599-1 |
| Pilot control interface | To ISO 15218 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
| Material screws | Steel |
| Weight | 0.85 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VSVA-B-B52-H-D2-F8-1B2 |
| EAN | 4052568655501 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 11,5 |
| Seal material | NBR |
| Housing material | Die-cast aluminium |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 4000 |
| Actuation type | Electrical |
| Norm | ISO 5599-1, ISO 15218 |
| Series | VSVA |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
| Temperaturbereich | -10-50 °C |
| Temperature (max.) | 50 |
