Solenoid valve 5/2-way, bistable, dominant, ISO 5599-1, width 52 mm VSVA-B-D52-ZD-D2-1R5L - Festo 567006

Festo ✓ Original product Brand new

As a 5/2-way valve, bistable with dominant signal for sub-base size 2 to ISO 5599-1, the Festo VSVA-B-D52-ZD-D2-1R5L provides a nominal flow rate of 2800 l/min. Operating pressure -0.9 to 16 bar, 24 V DC coil with 4.6 W, electrical connection 3-pin, M12x1, central plug, round design.

Net
€227.39
excl. VAT
Item FES-567006
Manufacturer no. VSVA-B-D52-ZD-D2-1R5L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

5/2-way valve, bistable with dominant signal VSVA-B-D52-ZD-D2-1R5L by Festo: 2800 l/min nominal flow, width 52 mm, designed to ISO 5599-1.

Benefits

  • Standardised hole pattern: Sub-base size 2 to ISO 5599-1, so the 5/2 valve can be replaced without changing the sub-base.
  • Flow rate: 2800 l/min nominal flow to DIN 1343, 2400 l/min on individual sub-base, 2800 l/min pneumatically interlinked.
  • Degree of protection: IP65, NEMA 4.
  • Manual override: detenting, non-detenting.
  • Coil: 24 V DC, 4.6 W, duty cycle 100%.
  • Electrical connection: 3-pin, M12x1, central plug, round design.

Application

If both signals are present at once, the dominant side takes over, so the switching position stays defined. The VSVA-B-D52-ZD-D2-1R5L is designed for compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 50 °C ambient temperature, pilot air external.

Technical data

TypeVSVA-B-D52-ZD-D2-1R5L
Festo part number567006

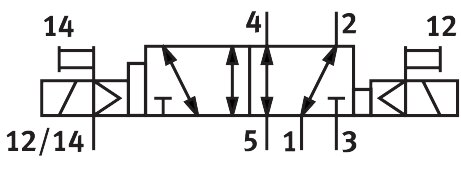

Valve function5/2-way, bistable, dominant
Type of actuationElectrical
Construction width52 mm
Standard nominal flow rate (standardised to DIN 1343)2800 l/min
Pneumatic working portSub-base size 2 to ISO 5599-1, G3/8
Operating voltage24 V DC
Operating pressure-0.9 to 16 bar
DesignPiston gate valve
ApprovalC-Tick, c CSA us (OL), c UL us - Recognised (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Degree of protectionIP65, NEMA 4
Nominal size15 mm
Grid dimension59 mm
Exhaust-air functionCan be throttled, Via throttle plate, Via individual sub-base
Sealing principleSoft
Mounting positionAny
Conforms to standardISO 5599-1
Manual overrideDetenting, Non-detenting
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionAny
LapOverlap
Signal status displayLED
Pilot pressure3 to 10 bar
Flow rate of valve4000 l/min
Flow rate of valve on individual sub-base2400 l/min
Flow rate of pneumatically interlinked valve2800 l/min
Switching time reversal18 ms
Duty cycle100%
Max. positive test pulse with 0 signal1000 µs
Max. negative test pulse with 1 signal3500 µs
Nominal pick-up current per solenoid coil165 mA to 30 ms
Nominal current with current reduction35 mA after 30 ms
Characteristic coil data24 V DC: 4.6 W
Permissible voltage fluctuations+/-10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 to 50 °C
Relative air humidity0 - 90%
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight732 g
Electrical connection3-pin, M12x1, Central plug, Round design
Type of mountingOn sub-base
Pilot air port 12/14Sub-base size 2 to ISO 5599-1
Pilot exhaust port 82/84Ducted, Not ducted as per standard, Either:
Pneumatic connection, port 1Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 2Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 3Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 4Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 5Sub-base size 2 to ISO 5599-1
Note on materialsRoHS compliant
Material sealsFluoro rubber, HNBR, NBR
Material housingDie-cast aluminium, PA
Material screwsSteel, Galvanised
Weight0.32 kg
ManufacturerFesto
Hersteller-NrVSVA-B-D52-ZD-D2-1R5L
EAN4052568007836
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]15
MediumCompressed air
Function5/2 bistable-dominant
Flow rate [l/min]2800
Actuation typeElectrical
NormISO 5599-1
SeriesVSVA
Betriebsdruck max [bar]16
Protection ratingIP65
Temperature (max.)50
