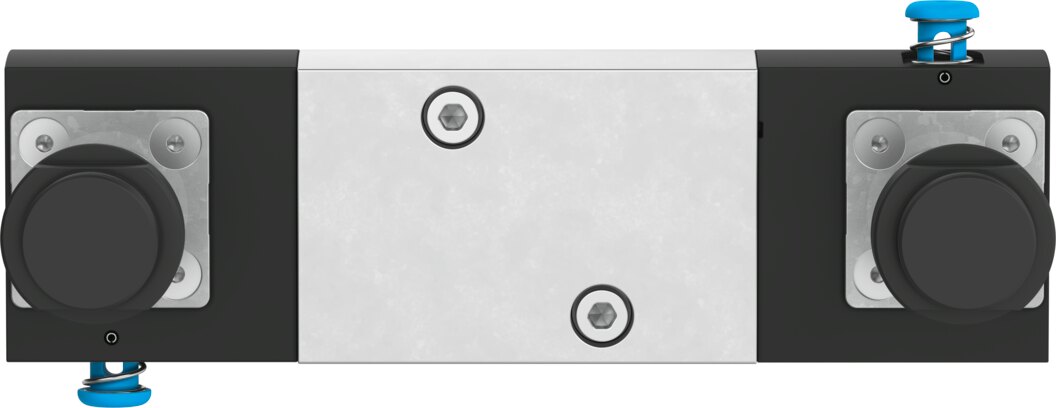

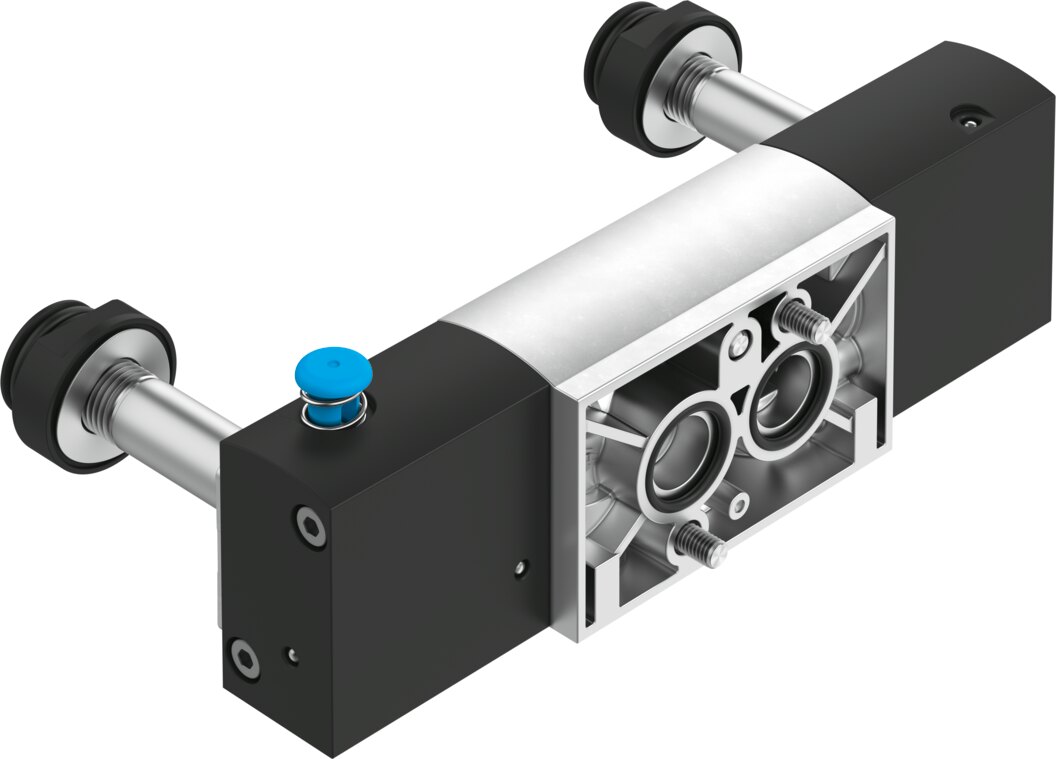

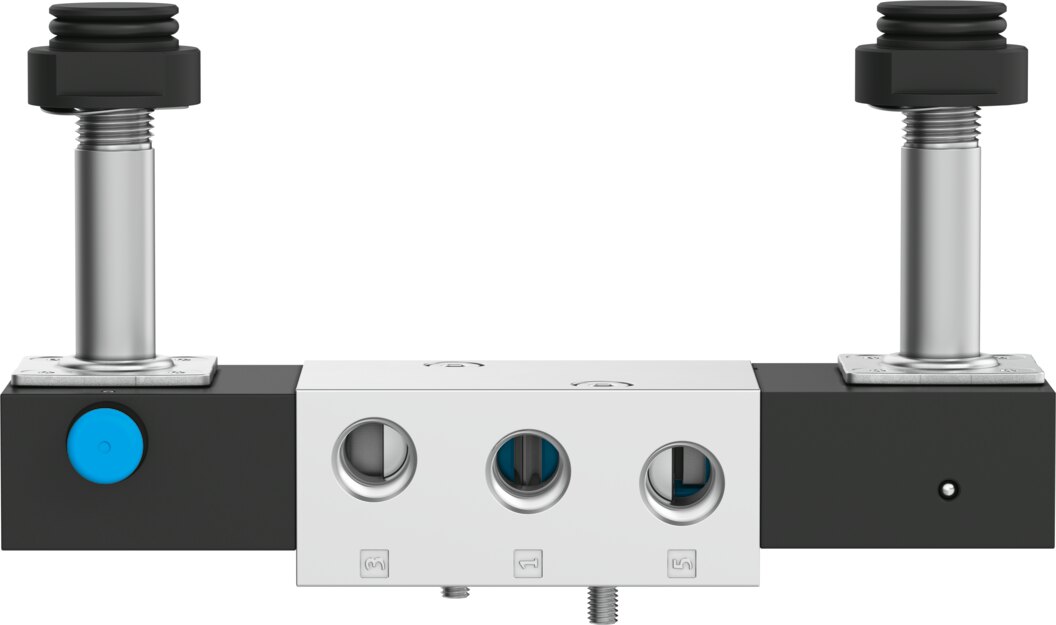

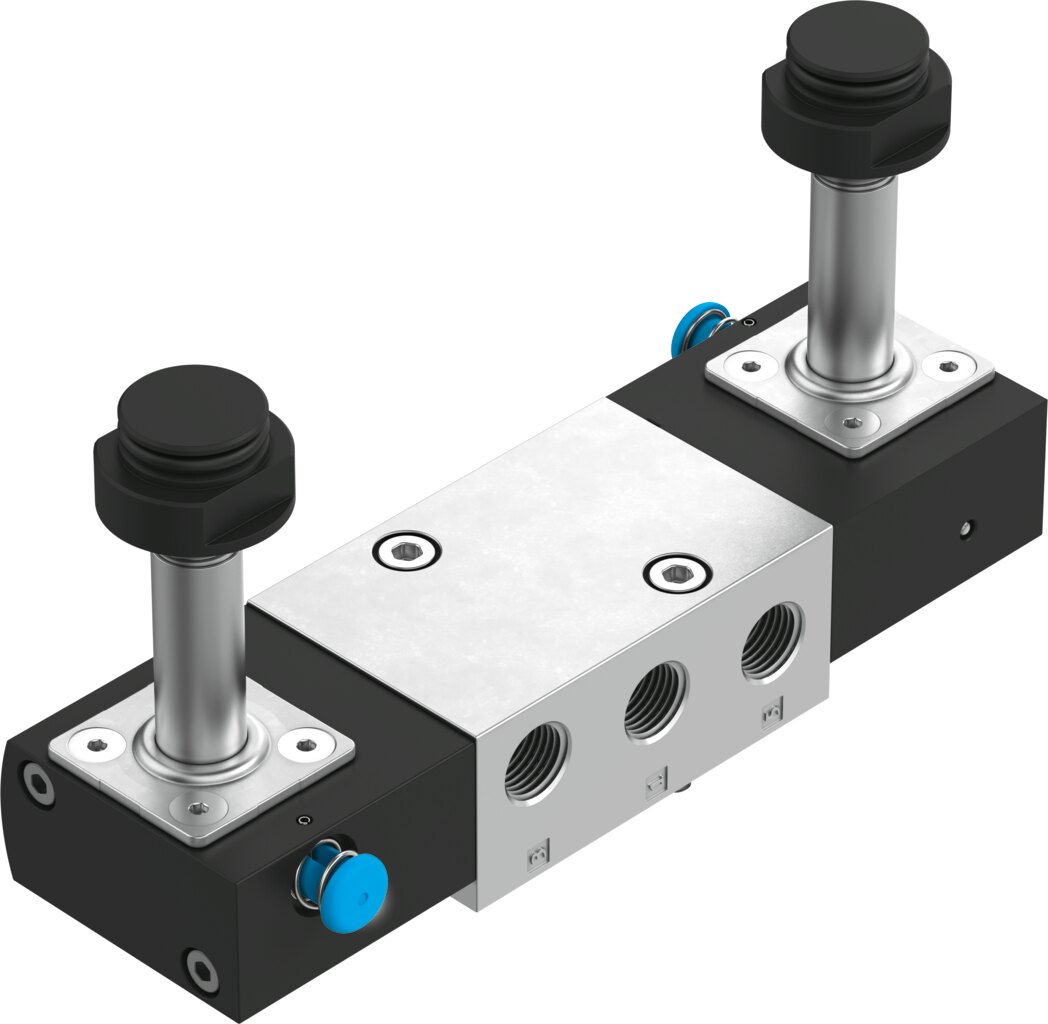

Solenoid valve 5/2-way double solenoid 1/4 NPT VSNC-FT-B52-H-N14-F19 - Festo 8116382
Solenoid valve VSNC-FT-B52-H-N14-F19 as a 5/2-way valve (double solenoid) with 1000 l/min standard nominal flow rate for controlling pneumatic actuators. Also 1.5 to 8 bar operating pressure, 1/4 NPT port and 32 mm width. NAMUR interface for quarter-turn actuators, no tubing needed.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VSNC-FT-B52-H-N14-F19 works as a 5/2-way valve (double solenoid) and reaches 1000 l/min standard nominal flow rate at 1.5 to 8 bar operating pressure. It also offers 1/4 NPT port and 32 mm width.
Key benefits
- Flow: 1000 l/min standard nominal flow rate at only 32 mm width
- Pressure range: 1.5 to 8 bar
- Reversing time: 20 ms
- Rugged: corrosion resistance class 2

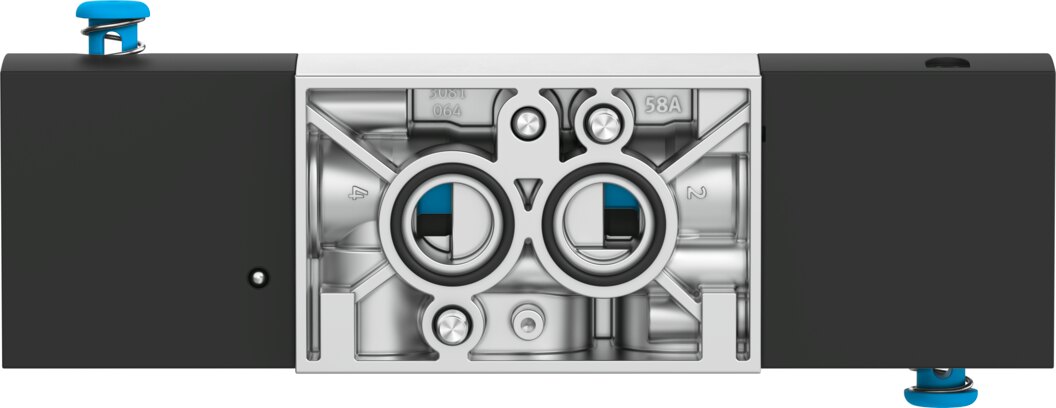

- Interface: NAMUR connection pattern to VDI/VDE 3845
- Temperature: -20 to 60 °C ambient
Applications
The VSNC-FT-B52-H-N14-F19 mounts directly on quarter-turn actuators with NAMUR interface, so no tubing is needed between valve and actuator. The solenoid coil is not included with the VSNC-FT-B52-H-N14-F19 and is ordered separately. Mounting: with through-hole. Operating medium for the VSNC-FT-B52-H-N14-F19: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VSNC-FT-B52-H-N14-F19 |
|---|---|
| Festo part number | 8116382 |

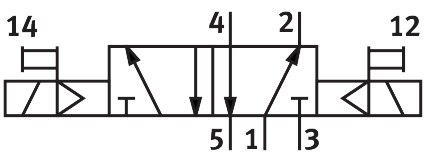

| Valve function | 5/2-way, double solenoid |
| Type of actuation | electrical |
| Width | 32 mm |
| Standard nominal flow rate | 1000 l/min |
| pneumatic working port | connection pattern to NAMUR |
| Operating voltage | via solenoid coil, must be ordered separately |
| Operating pressure | 1.5 to 8 bar |
| Design | poppet seat |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | non-detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | negative overlap |
| Switching time reversal | 20 ms |
| Duty cycle | 100% |
| Coil characteristics | see solenoid coil, to be ordered separately |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | -20 to 60 °C |
| Ambient temperature | -20 to 60 °C |
| Product weight | 613 g |
| Type of mounting | with through-hole |
| Breather connection | not ducted |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | connection pattern to NAMUR |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 4 | connection pattern to NAMUR |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | wrought aluminium alloy |
| Material screws | galvanised steel |
| Manufacturer | Festo |
| Hersteller-Nr | VSNC-FT-B52-H-N14-F19 |
| EAN | 4052568558260 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/4 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 1000 |
| Actuation type | Electrical |
| Norm | NAMUR, VDI/VDE 3845 |
| Series | VSNC |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -20-60 °C |
