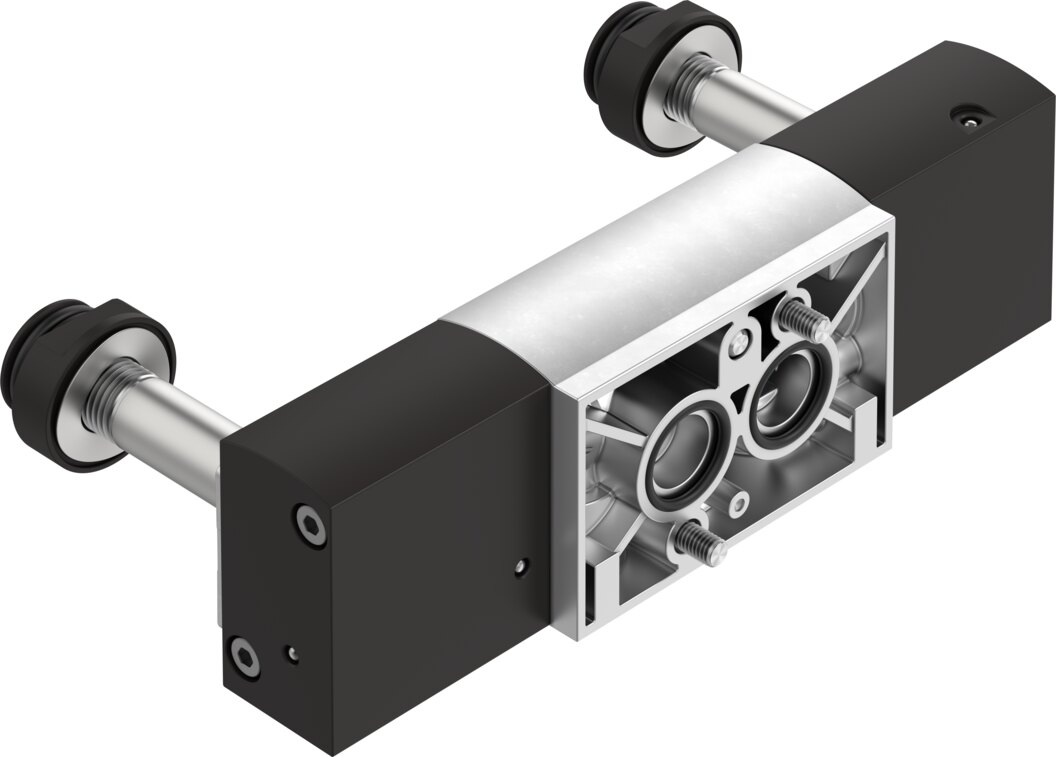

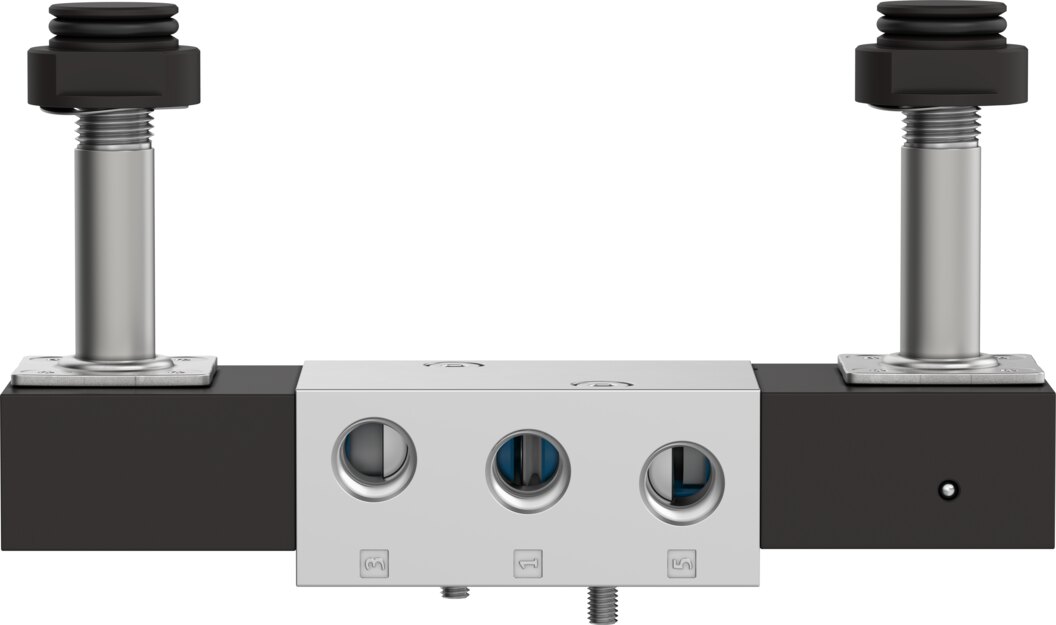

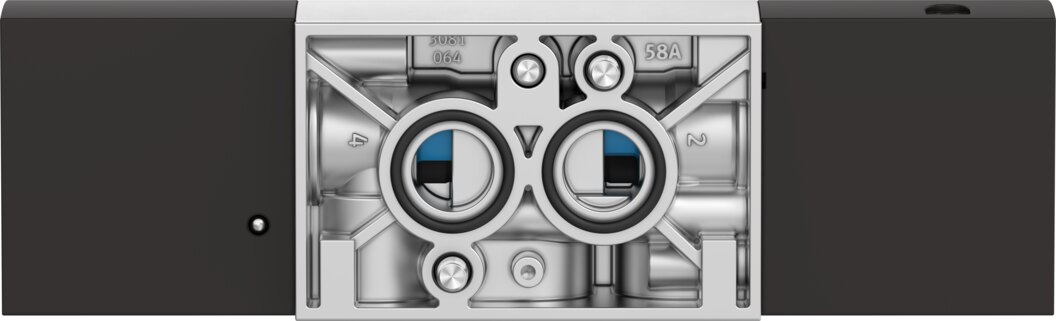

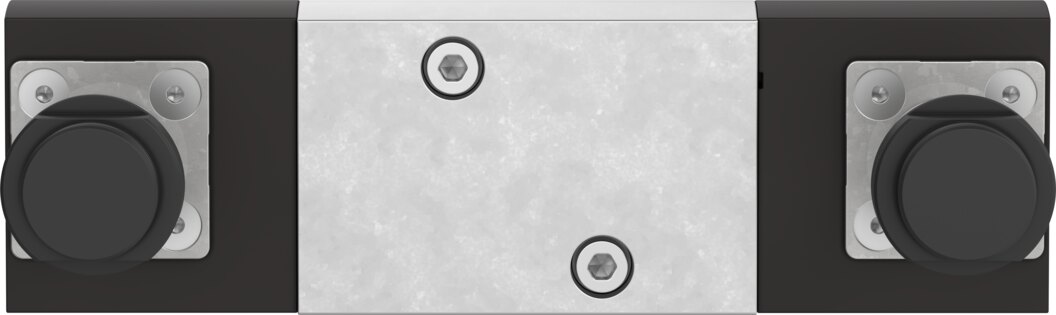

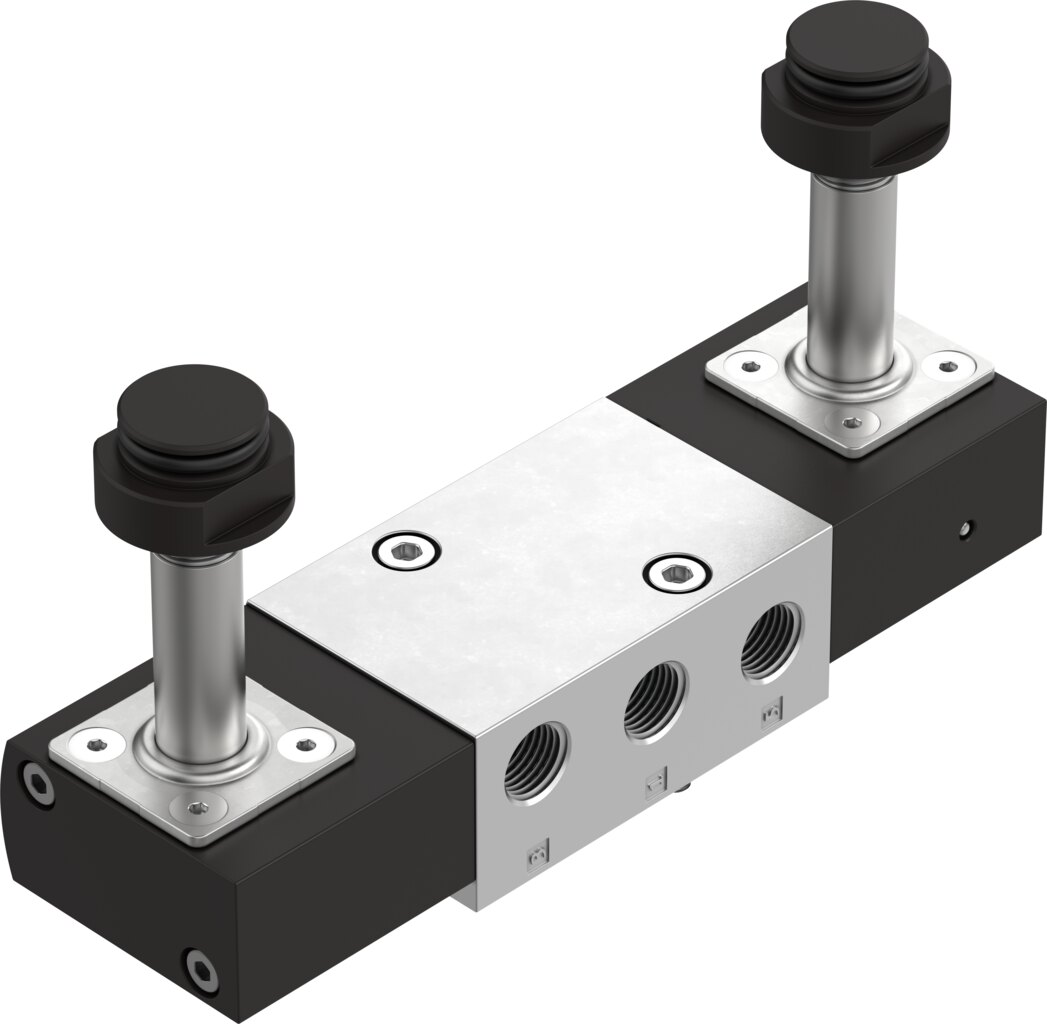

Solenoid valve 5/3-way pressurised 1/4 NPT VSNC-F-P53U-M-N14-F19 - Festo 8116405

Festo ✓ Original product Brand new

The VSNC-F-P53U-M-N14-F19 switches compressed air as a 5/3-way valve (pressurised) and reaches 950 l/min standard nominal flow rate. Designed for 3 to 8 bar operating pressure, 1/4 NPT port and 32 mm width. NAMUR connection pattern for direct mounting on quarter-turn actuators.

Net
€273.12
excl. VAT
Item FES-8116405
Manufacturer no. VSNC-F-P53U-M-N14-F19
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 5/3-way valve (pressurised), the Festo solenoid valve VSNC-F-P53U-M-N14-F19 delivers 950 l/min standard nominal flow rate at 3 to 8 bar operating pressure. Further ratings: 1/4 NPT port and 32 mm width.

Benefits

  • Flow: 950 l/min standard nominal flow rate at only 32 mm width
  • Pressure range: 3 to 8 bar
  • Switching times: 24 ms on, 85 ms off
  • Rugged: corrosion resistance class 2
  • Interface: NAMUR connection pattern to VDI/VDE 3845
  • Temperature: -20 to 60 °C ambient

Applications

The VSNC-F-P53U-M-N14-F19 mounts directly on quarter-turn actuators with NAMUR interface, so no tubing is needed between valve and actuator. The solenoid coil is not included with the VSNC-F-P53U-M-N14-F19 and is ordered separately. Mounting: with through-hole. Operating medium for the VSNC-F-P53U-M-N14-F19: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSNC-F-P53U-M-N14-F19
Festo part number8116405
Valve function5/3-way, pressurised
Type of actuationelectrical
Width32 mm
Standard nominal flow rate950 l/min
pneumatic working portconnection pattern to NAMUR
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure3 to 8 bar
Designpiston gate valve
Reset methodmechanical spring
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overridenone
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.5
C value2.1 l/sbar
Switching time off85 ms
Switching time on24 ms
Switching time reversal60 ms
Duty cycle100%
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 to 60 °C
Ambient temperature-20 to 60 °C
Product weight619 g
Type of mountingwith through-hole
Breather connectionnot ducted
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 2connection pattern to NAMUR
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 4connection pattern to NAMUR
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsNBR
Material housingwrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVSNC-F-P53U-M-N14-F19
EAN4052568558499
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Seal materialNBR
MediumCompressed air
Function5/3 pressurised
Flow rate [l/min]950
Actuation typeElectrical
NormNAMUR, VDI/VDE 3845
SeriesVSNC
Betriebsdruck max [bar]8
Pneumatic connectionNPT 1/4
Temperaturbereich-20-60 °C
