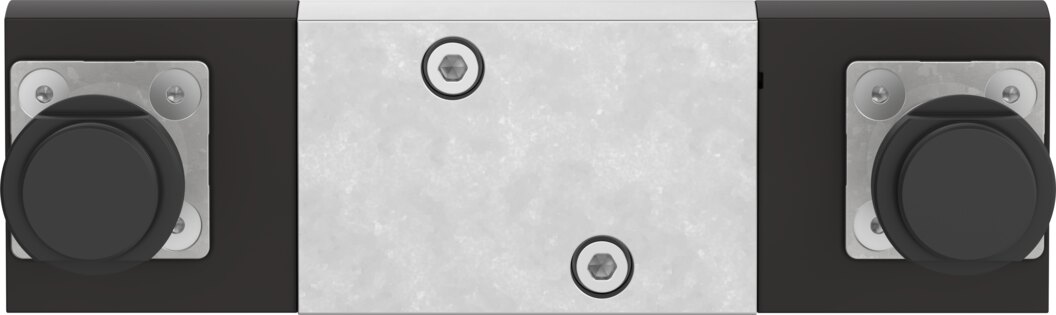

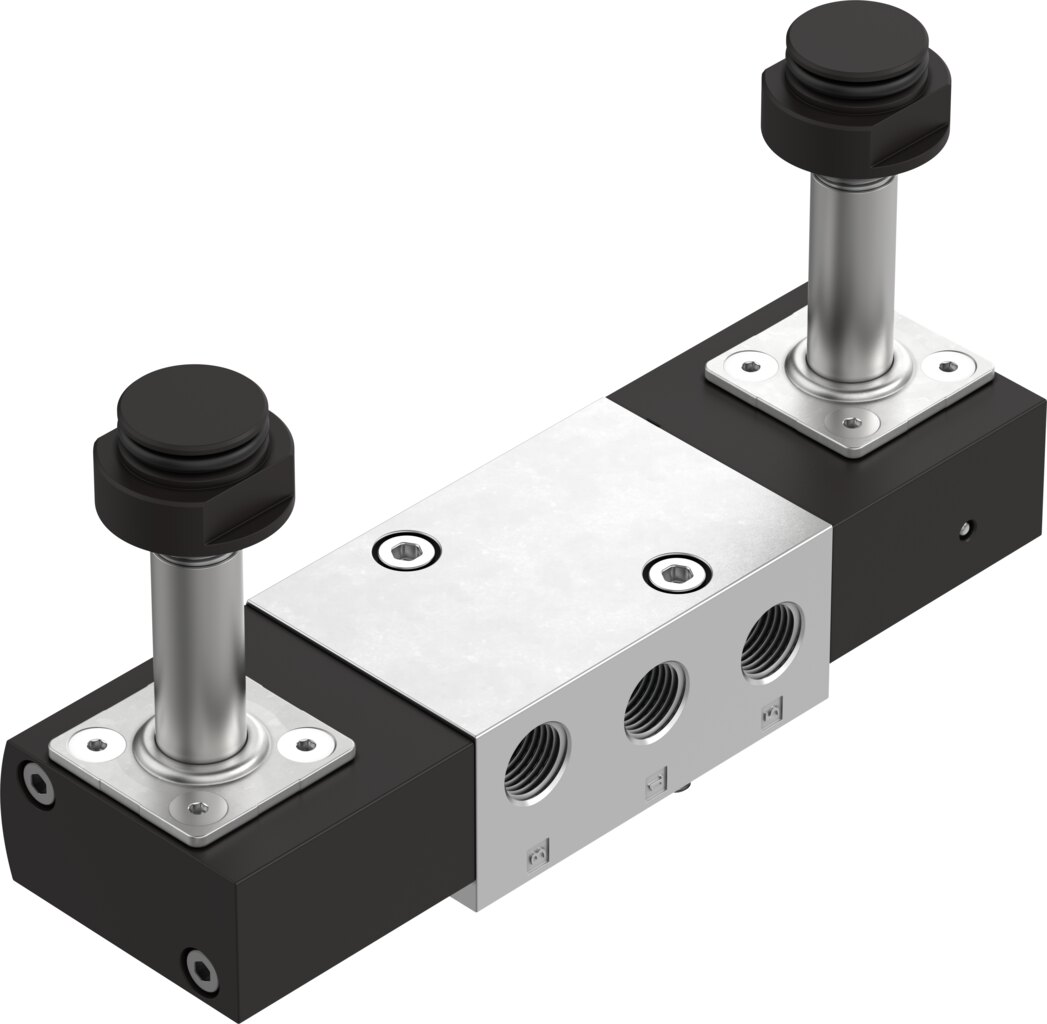

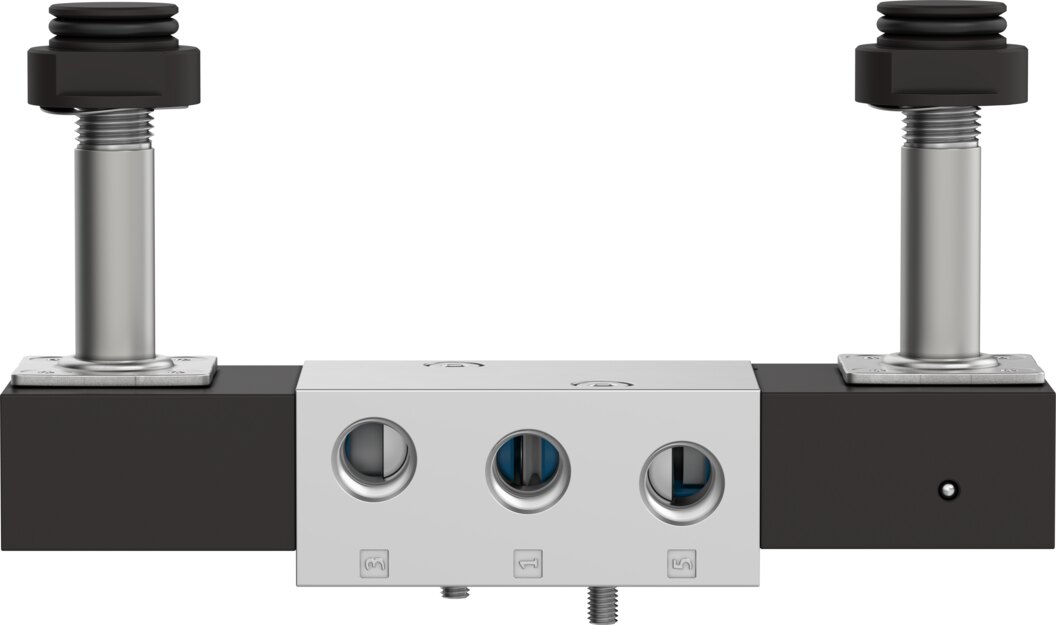

Solenoid valve 5/3-way closed 1/4 NPT VSNC-F-P53C-M-N14-F19A - Festo 8116403

Festo ✓ Original product Brand new

Solenoid valve VSNC-F-P53C-M-N14-F19A as a 5/3-way valve (closed) with 1250 l/min standard nominal flow rate for controlling pneumatic actuators. Also 3 to 8 bar operating pressure, 1/4 NPT port and 32 mm width. Mounts directly on the quarter-turn actuator via the NAMUR interface.

Net
€273.12
excl. VAT
Item FES-8116403
Manufacturer no. VSNC-F-P53C-M-N14-F19A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 1250 l/min standard nominal flow rate, the solenoid valve VSNC-F-P53C-M-N14-F19A switches as a 5/3-way valve (closed) at 3 to 8 bar operating pressure. In addition, the VSNC-F-P53C-M-N14-F19A offers 1/4 NPT port and 32 mm width.

Key benefits

  • Flow: 1250 l/min standard nominal flow rate at only 32 mm width
  • Pressure range: 3 to 8 bar
  • Switching times: 435 ms on, 380 ms off
  • Rugged: corrosion resistance class 2
  • Interface: NAMUR connection pattern to VDI/VDE 3845
  • Temperature: -20 to 60 °C ambient

Applications

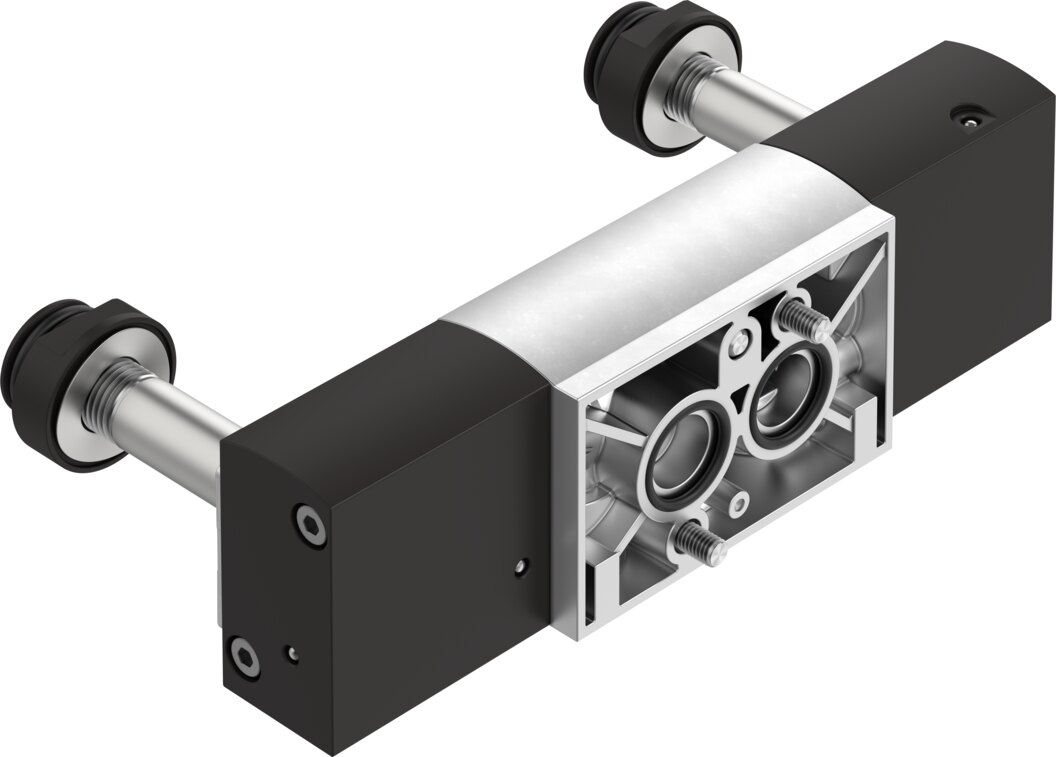

Thanks to the NAMUR connection pattern, the VSNC-F-P53C-M-N14-F19A mounts directly on pneumatic quarter-turn actuators without tubing between valve and actuator. The solenoid coil is not included with the VSNC-F-P53C-M-N14-F19A and is ordered separately. Mounting: with through-hole. Operating medium for the VSNC-F-P53C-M-N14-F19A: compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVSNC-F-P53C-M-N14-F19A
Festo part number8116403
Valve function5/3-way, closed
Type of actuationelectrical
Width32 mm
Standard nominal flow rate1250 l/min

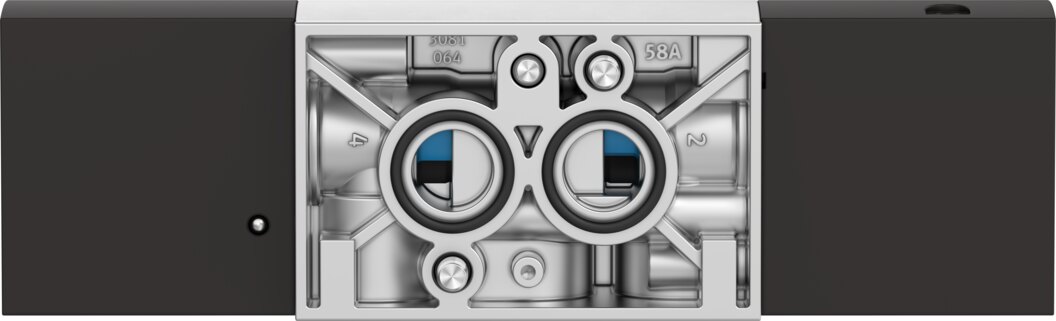

pneumatic working portconnection pattern to NAMUR
Operating voltagevia solenoid coil, must be ordered separately
Operating pressure3 to 8 bar
Designpiston gate valve
Reset methodmechanical spring
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overridenone
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.4
C value5.2 l/sbar
Switching time off380 ms
Switching time on435 ms
Switching time reversal435 ms
Duty cycle100%
Coil characteristicssee solenoid coil, to be ordered separately
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 to 60 °C
Ambient temperature-20 to 60 °C
Product weight619 g
Type of mountingwith through-hole
Breather connectionnot ducted
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 2connection pattern to NAMUR
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 4connection pattern to NAMUR
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material sealsNBR
Material housingwrought aluminium alloy
Material screwsgalvanised steel
ManufacturerFesto
Hersteller-NrVSNC-F-P53C-M-N14-F19A
EAN4052568558475
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Seal materialNBR
MediumCompressed air
Function5/3 closed
Flow rate [l/min]1250
Actuation typeElectrical
NormNAMUR, VDI/VDE 3845
SeriesVSNC
Betriebsdruck max [bar]8
Pneumatic connectionNPT 1/4
Temperaturbereich-20-60 °C
