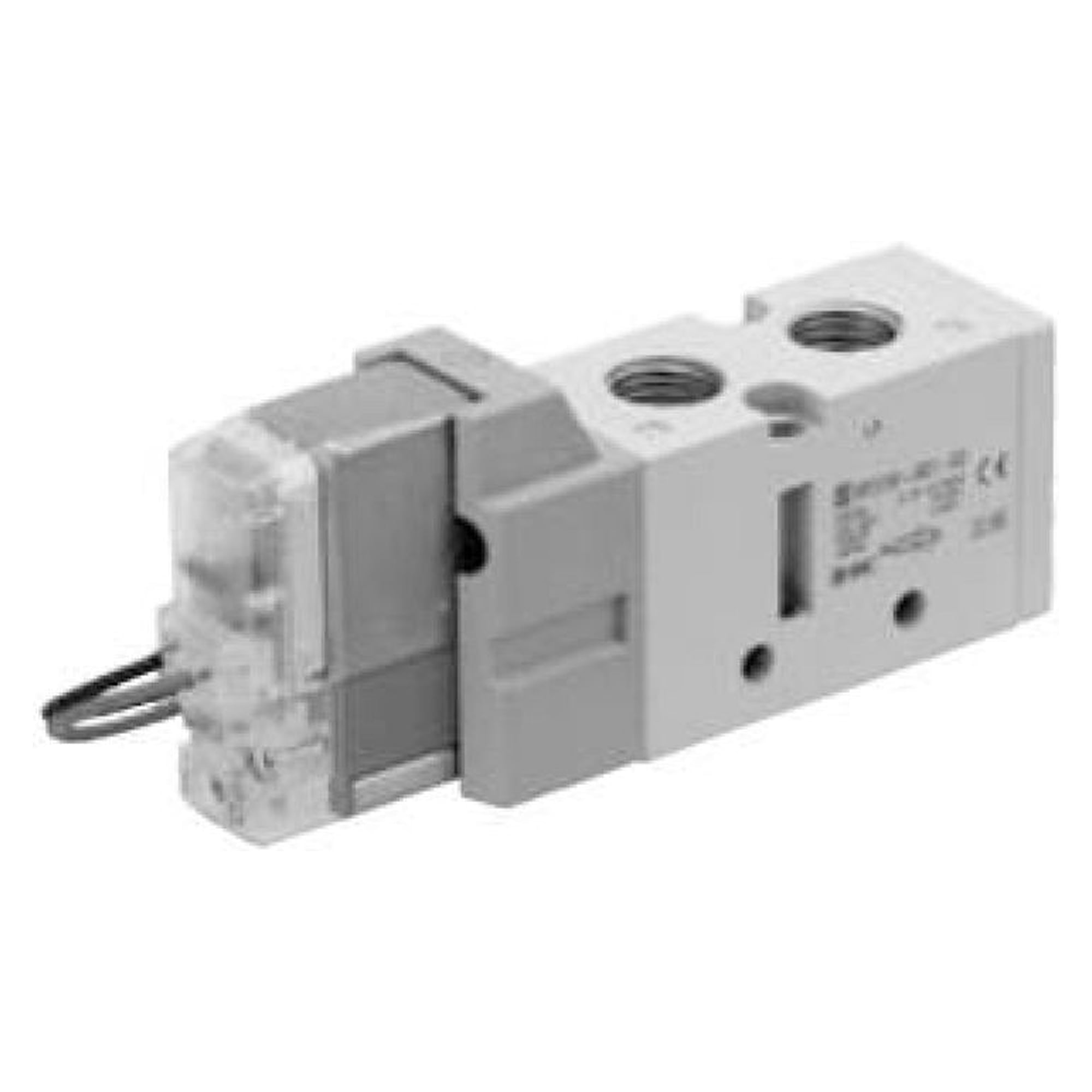

VF3000, 5 Port Solenoid Valve w/Rectifier - SMC VF3330-5YO1-02F
Configuration: 3 (3 Position Closed Centre) Piping: 3 (Body Ported) Exhaust: 0 (Individual) Pressure Specification: Standard (0.7MPa) Coil specification: Standard Rated Voltage: 5 (24VDC) Lead Wire: YO (DIN EN175301-803 Terminal w/o Connector) Light/Surge Suppressor: Without light/surge voltage suppressor Manual Override: Non-locking Push Type A, B Port Size: 02 (1/4) Thread: F (G) Bracket: None Made to Order: None
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Series VF, a five port pilot solenoid valve, offers large flow capacity in a compact size. The VF is available in many variations including three types of manual override and four types of electrical entry. Common exhaust for main valve and pilot valve is also available.
Technical data
| Weight | 0.100000 |
|---|---|
| Manufacturer | SMC |
| Hersteller-Nr | VF3330-5YO1-02F |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | SMC Deutschland GmbH Boschring 13-15 DE-63329 Egelsbach www.smc.eu |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | DIN EN 175301-803 |
