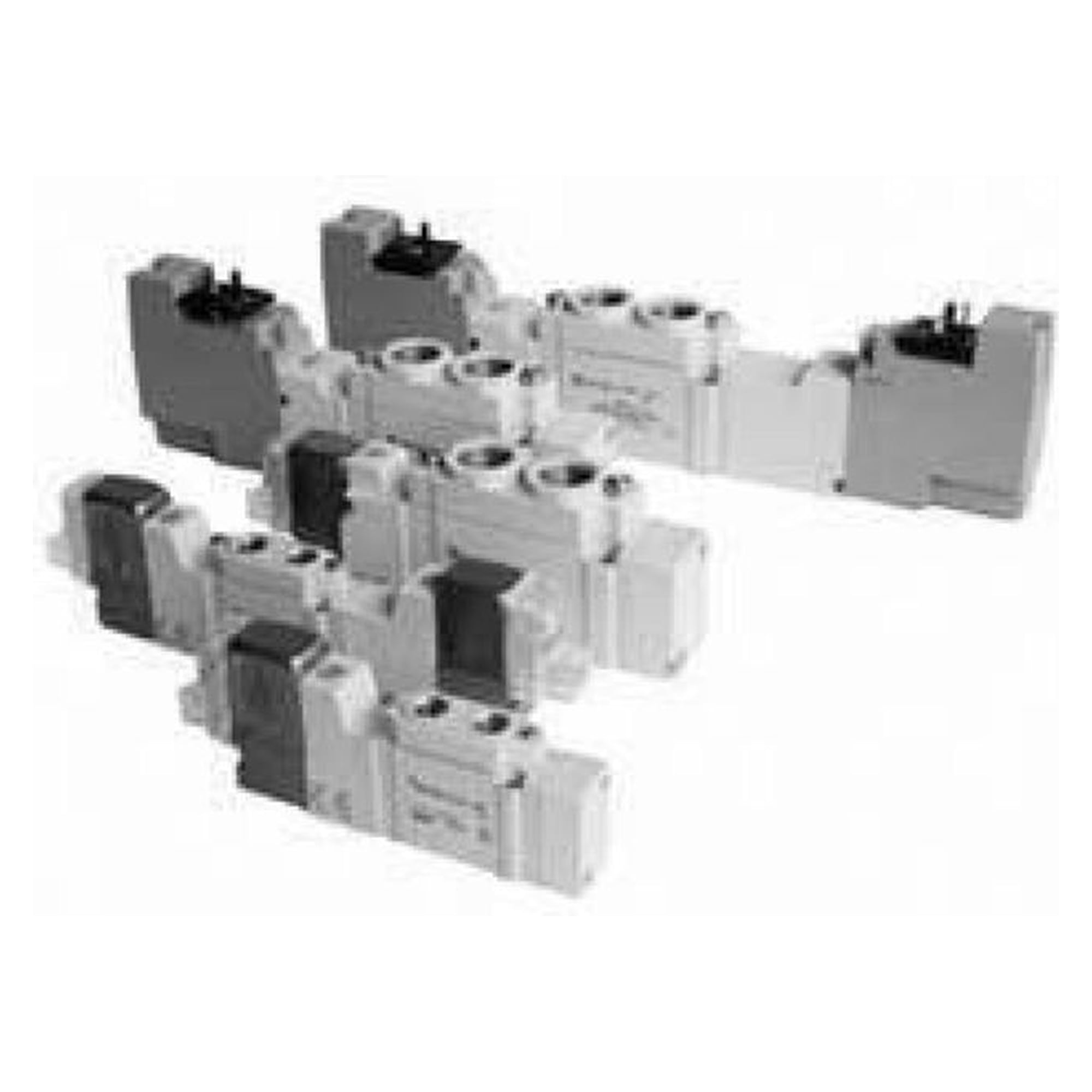

SY9000, 5 Port Solenoid Valve, All Types - SMC SY9120-5YO-03F-Q
Type of actuation: 1 (2 Position Single) Manifold Type: 20 (Body Ported) Pilot Type: Internal Pilot Coil Specifications: Standard Rated voltage: 5 (24VDC) Electrical Entry: YO [DIN Terminal w/o Connector (DIN 43650C)] Light/surge voltage suppressor: None Manual Override: Non-locking Push Style A, B Port Size: 03 (Body Ported 3/8) Thread: F (G) Made to Order: None
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Technical data
| Weight | 0.25 kg |
|---|---|
| Manufacturer | SMC |
| Hersteller-Nr | SY9120-5YO-03F-Q |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | SMC Deutschland GmbH Boschring 13-15 DE-63329 Egelsbach www.smc.eu |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Norm | DIN 43650 |
