Proportional-pressure regulator VPPM-6L-L-1-G18-0L6H-V1P - Festo 554043
Net
excl. VAT
€497.00
Item
FES-554043
Manufacturer no.
VPPM-6L-L-1-G18-0L6H-V1P
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, supply | 6 mm |
|---|---|
| Nominal size, exhaust | 4.5 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Piloted diaphragm regulator |
| Short circuit current rating | For all electrical connections |
| Safety instructions | Safety position VPPM: if the power supply cable is interrupted, output pressure is maintained unregulated. |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3-way proportional pressure regulator |
| Display type | LED |
| Pressure regulation range | 0.06 ... 6 bar |
| Inlet pressure 1 | 0 ... 8 bar |
| Max. pressure hysteresis | 0.03 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 900 l/min |
| Operational voltage range DC | 21.6 ... 26.4 V |
| Max. current consumption | 300 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 7 W |
| Residual ripple | 10% |
| Switching output | PNP |
| Signal range analogue output | 0 - 10 V |
| Accuracy analogue output in ± %FS | 2 %FS |
| Signal range analogue input | 0 - 10 V |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | 10 ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 ... 60 °C |
| Product weight | 400 g |
| Linearity | 1 %FS |
| Hysteresis | 0.5 %FS |
| Reproducibility | 0.5 %FS |
| Total accuracy | 2.25 %FS |
| Temperature cooefficient | 0.04 %/K |
| Repetition accuracy FS | 0.5 % |
| Electrical connection | 8-pin, M12, Plug |
| Type of mounting | Either:, With through-hole, With accessories |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material housing | Wrought aluminium alloy, anodised |
| Weight | 0.49 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VPPM-6L-L-1-G18-0L6H-V1P |
| EAN | 4052568198299 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Festo

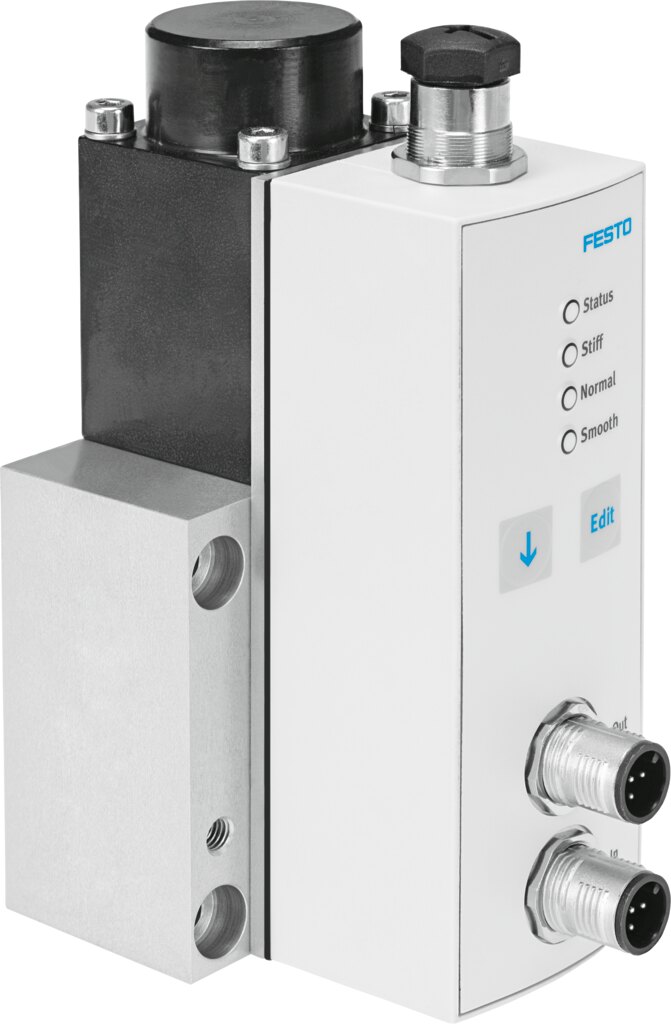

Proportional-pressure regulator VPPL-3Q-3-0L40H-V1-V-S1-1 - Festo 1635978
Item FES-1635978
€2,305.21
Festo

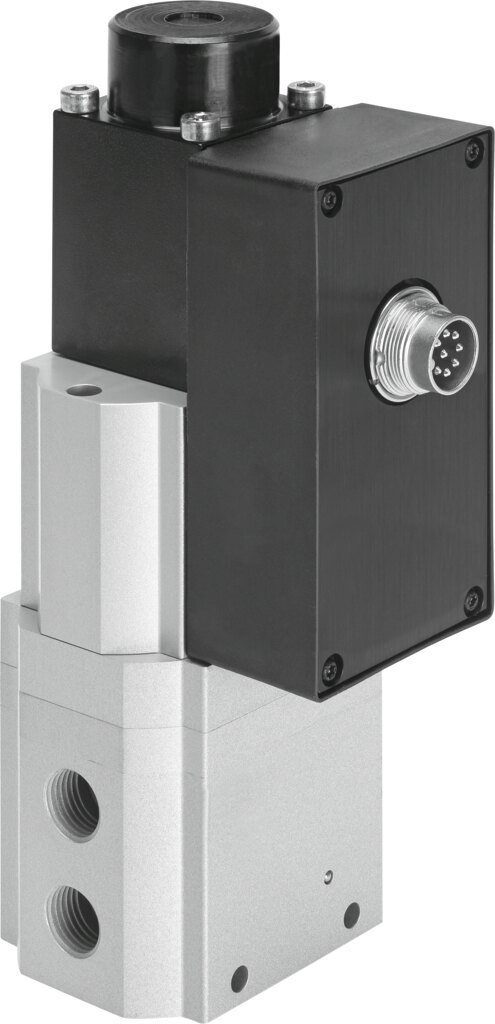

Proportional-pressure regulator MPPES-3-1/4-PU-PO-420 - Festo 187744
