Proportional pressure regulator 0.2 to 20 bar G1/4 VPPL-3L-3-G14-0L20H-V1-V-S1-6 - Festo 1635989

Festo ✓ Original product Brand new

Electrically adjustable pressure from 0.2 to 20 bar: proportional pressure regulator VPPL-3L-3-G14-0L20H-V1-V-S1-6 with 0 - 10 V setpoint. Standard nominal flow rate 245 l/min, port G1/4, max. pressure hysteresis 0.1 bar and degree of protection IP65. Genuine Festo part 1635989.

Net
€2,152.13
excl. VAT
Item FES-1635989
Manufacturer no. VPPL-3L-3-G14-0L20H-V1-V-S1-6
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

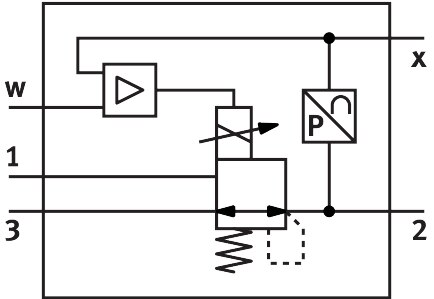

The proportional pressure regulator VPPL-3L-3-G14-0L20H-V1-V-S1-6 sets the output pressure electrically in the range 0.2 to 20 bar, specified via a 0 - 10 V setpoint signal. With a standard nominal flow rate of 245 l/min, it is connected via G1/4. Design: directly actuated piston regulator.

Benefits at a glance

  • Repeatable results: linearity 0.5 %FS, repeatability 0.5 %FS
  • Fine pressure control: max. pressure hysteresis 0.1 bar
  • Air capacity: standard nominal flow rate 245 l/min
  • Actual value feedback to the controller via analogue output 0 - 10 V
  • Defined safety position: if the power supply cable is interrupted, the output pressure drops to 0 bar
  • For harsh environments: degree of protection IP65, corrosion resistance class CRC 2

Application and mounting

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. Mounting position of the VPPL-3L-3-G14-0L20H-V1-V-S1-6: any, preferably upright, mounting: with through-hole. Permissible ambient temperature 5 to 50 °C. The VPPL-3L-3-G14-0L20H-V1-V-S1-6 is connected electrically via plug connector, M12, 5-pin, A-coded.

Technical data

TypeVPPL-3L-3-G14-0L20H-V1-V-S1-6
Festo part number1635989
Nominal size, supply3 mm
Nominal size, exhaust3 mm
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny, Preferably upright
DesignDirectly actuated piston regulator
Short circuit current ratingNo
Max. cable length30 M
Safety instructionsSafety position VPPL: if the power supply cable is interrupted, the output pressure drops to 0 bar.
Reverse polarity protectionFor all electrical connections
Type of resetMechanical spring
Type of pilotingDirect
Valve function3-way proportional-pressure regulator, closed
Display typeLED indicator
Operating pressure20 bar
Pressure regulation range0.2 to 20 bar
Inlet pressure 10 to 50 bar
Max. pressure hysteresis0.1 bar
b value0.25
C value0.8 l/sbar
Standard nominal flow rate (standardised to DIN 1343)245 l/min
Standard nominal flow rate 2-3282 l/min
Switching time off654 ms
Switching time on428 ms
Operational voltage range DC21.6 to 27.6 V
Duty cycle100%
Max. electrical power consumption26.7 W
Residual ripple10%
Signal range analogue output0 - 10 V
Signal range analogue input0 - 10 V
SETPOINT/ACTUAL valuesVoltage type 0 - 10 V
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
Approvalc UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature5 to 50 °C
Degree of protectionIP65
Ambient temperature5 to 50 °C
Storage temperature-10 to 60 °C
Product weight1100 g
Linearity error in ± %FS0.5 %FS
Total accuracy0.5 %FS
Temperature coefficient0.04 %/K
Repetition accuracy in ± %FS0.5 %FS
Electrical connection diagnostics interfaceSocket, M12, 5-pin, A-coded
Electrical connection, INPlug connector, M12, 5-pin, A-coded
Electrical connection, OUTPlug connector, M12, 5-pin, A-coded
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Note on materialsRoHS compliant
Material housingAnodised wrought aluminium alloy
Weight1.1 kg
ManufacturerFesto
Hersteller-NrVPPL-3L-3-G14-0L20H-V1-V-S1-6
EAN4052568263836
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/4
Control range max. [bar]20
MediumCompressed air, neutral gases
Function3-way proportional pressure regulating valve closed
Inlet pressure max. [bar]50
Actuation typeElectrical
Druckregelbereich [bar]0,2 bis 20
Medientemperatur [°C]5 bis 50
Betriebsdruck max [bar]20
Pneumatic connectionG1/4
Protection ratingIP65
Temperature (max.)50
