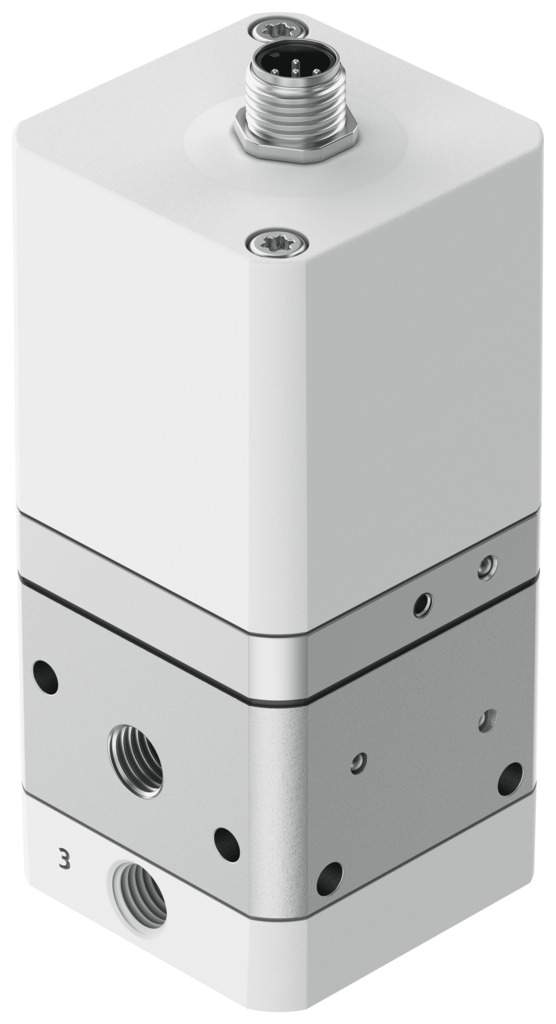

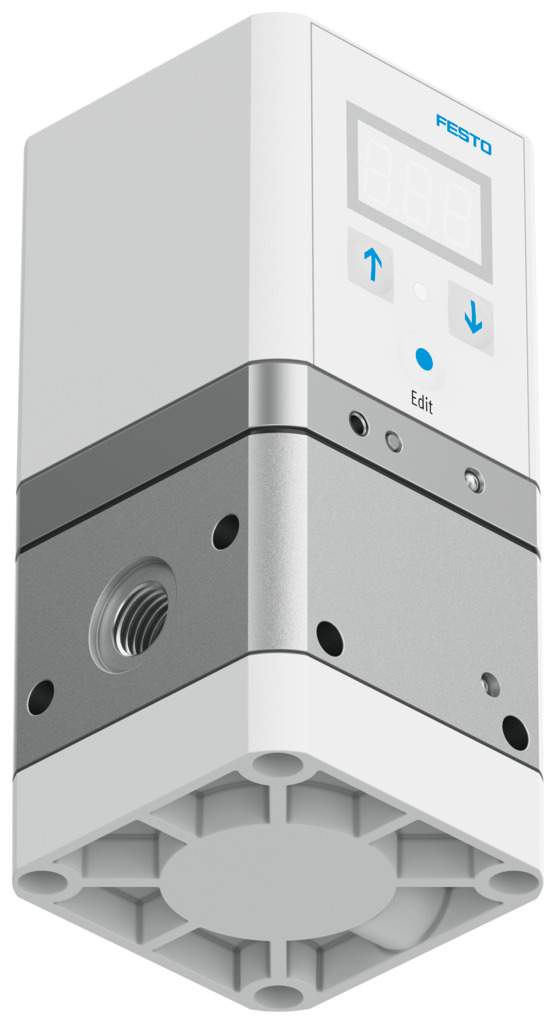

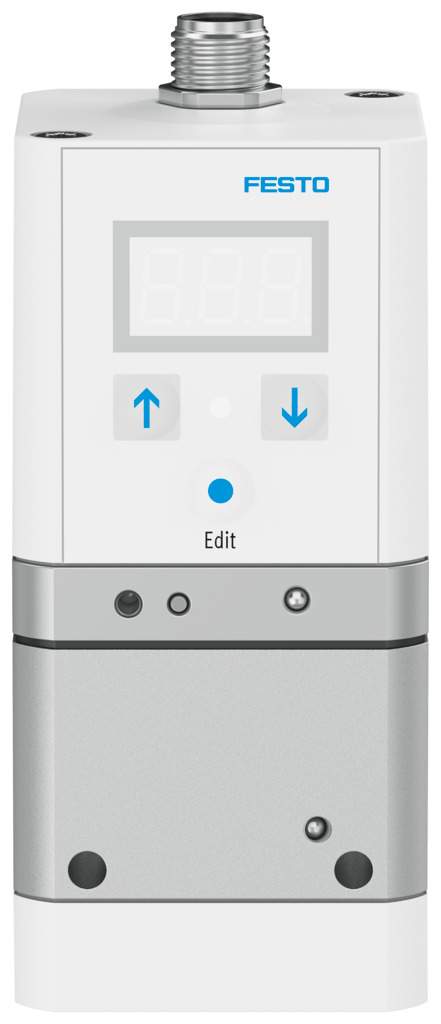

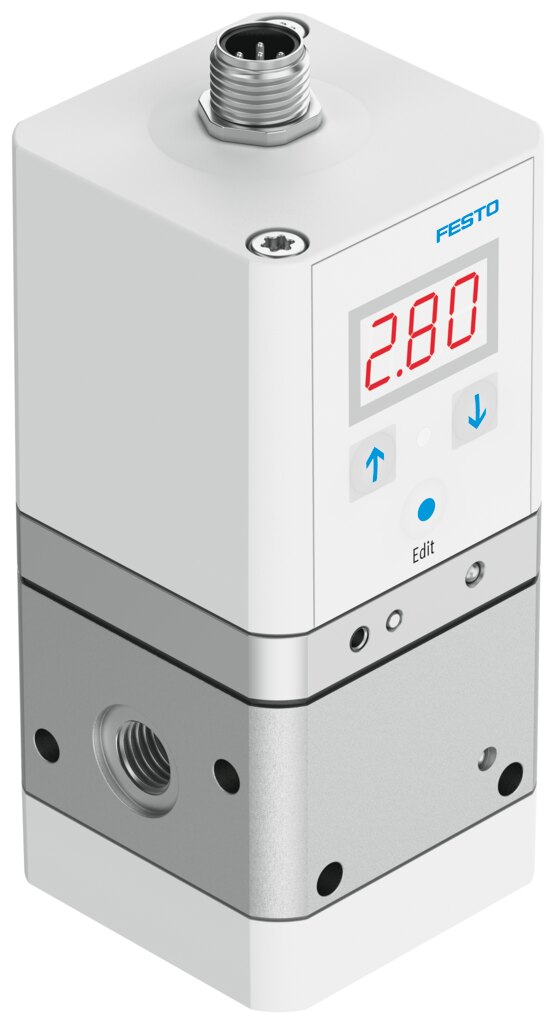

Proportional pressure regulator 0.1 to 10 bar G1/8 VPPE-3-1-1/8-10-420-E1-F1A - Festo 8156424
Electrically adjustable pressure from 0.1 to 10 bar: proportional pressure regulator VPPE-3-1-1/8-10-420-E1-F1A with 4 - 20 mA setpoint. Standard nominal flow rate 1250 l/min, port G1/8, max. pressure hysteresis 0.05 bar and degree of protection IP65. Genuine Festo part 8156424.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo VPPE-3-1-1/8-10-420-E1-F1A regulates the output pressure in proportion to the 4 - 20 mA setpoint, pressure regulation range 0.1 to 10 bar. With a standard nominal flow rate of 1250 l/min, it is connected via G1/8. Design: piloted diaphragm regulator.
Key benefits
- Fine pressure control: max. pressure hysteresis 0.05 bar
- Repeatable results: linearity 1 %FS, repeatability 0.5 %FS
- Air capacity: standard nominal flow rate 1250 l/min
- Actual value feedback to the controller via analogue output 4 - 20 mA
- Defined safety position: if the power supply cable is interrupted, output pressure is maintained unregulated
- PNP switching output for limit value signals
Application and mounting
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. Mounting position of the VPPE-3-1-1/8-10-420-E1-F1A: any, preferably upright, mounting: with through-hole. Permissible ambient temperature 0 to 60 °C. The VPPE-3-1-1/8-10-420-E1-F1A is suitable for Li-ion battery production (reduced Cu/Zn/Ni content, F1a). Electrical connection of the VPPE-3-1-1/8-10-420-E1-F1A: 5-pin, M12, plug.
Technical data
| Type | VPPE-3-1-1/8-10-420-E1-F1A |
|---|---|
| Festo part number | 8156424 |
| Nominal size, supply | 5 mm |
| Nominal size, exhaust | 2.5 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any, Preferably upright |
| Design | Piloted diaphragm regulator |
| Short circuit current rating | For all electrical connections |
| Safety instructions | Safety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated. |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3-way proportional pressure regulator |
| Display type | LED indicator, 3 digits |
| Pressure regulation range | 0.1 to 10 bar |
| Inlet pressure 1 | 6 to 11 bar |
| Max. pressure hysteresis | 0.05 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 1250 l/min |
| Operational voltage range DC | 21.6 to 26.4 V |
| Max. current consumption | 160 mA |
| Duty cycle | 100% |
| Max. electrical power consumption | 4.2 W |
| Residual ripple | 10% |
| Switching output | PNP |
| Signal range analogue output | 4 - 20 mA |
| Signal range analogue input | 4 - 20 mA |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Media temperature | 10 to 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 to 60 °C |
| Product weight | 390 g |
| Linearity | 1 %FS |
| Hysteresis | 0.5 %FS |
| Reproducibility | 0.5 %FS |
| Total accuracy | 1.25 %FS |
| Temperature coefficient | 0.04 %/K |
| Electrical connection | 5-pin, M12, Plug |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material housing | Aluminium, powder-coated |
| Weight | 0.42 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VPPE-3-1-1/8-10-420-E1-F1A |
| EAN | 4052568596798 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Control range max. [bar] | 10 |
| Medium | Compressed air, neutral gases |
| Function | 3-way proportional pressure regulating valve |
| Inlet pressure max. [bar] | 11 |
| Flow rate [l/min] | 1250 |
| Actuation type | Electrical |
| Druckregelbereich [bar] | 0,1 bis 10 |
| Medientemperatur [°C] | 10 bis 50 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
