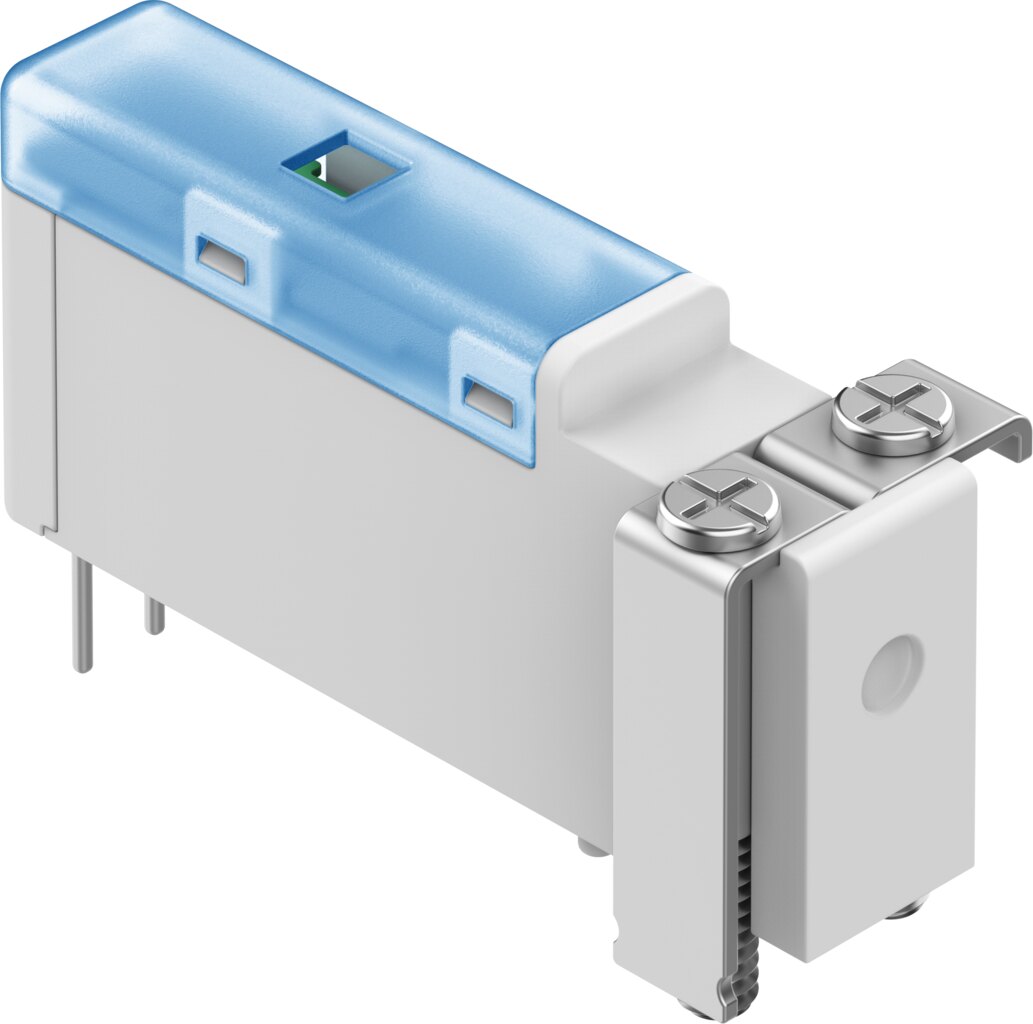

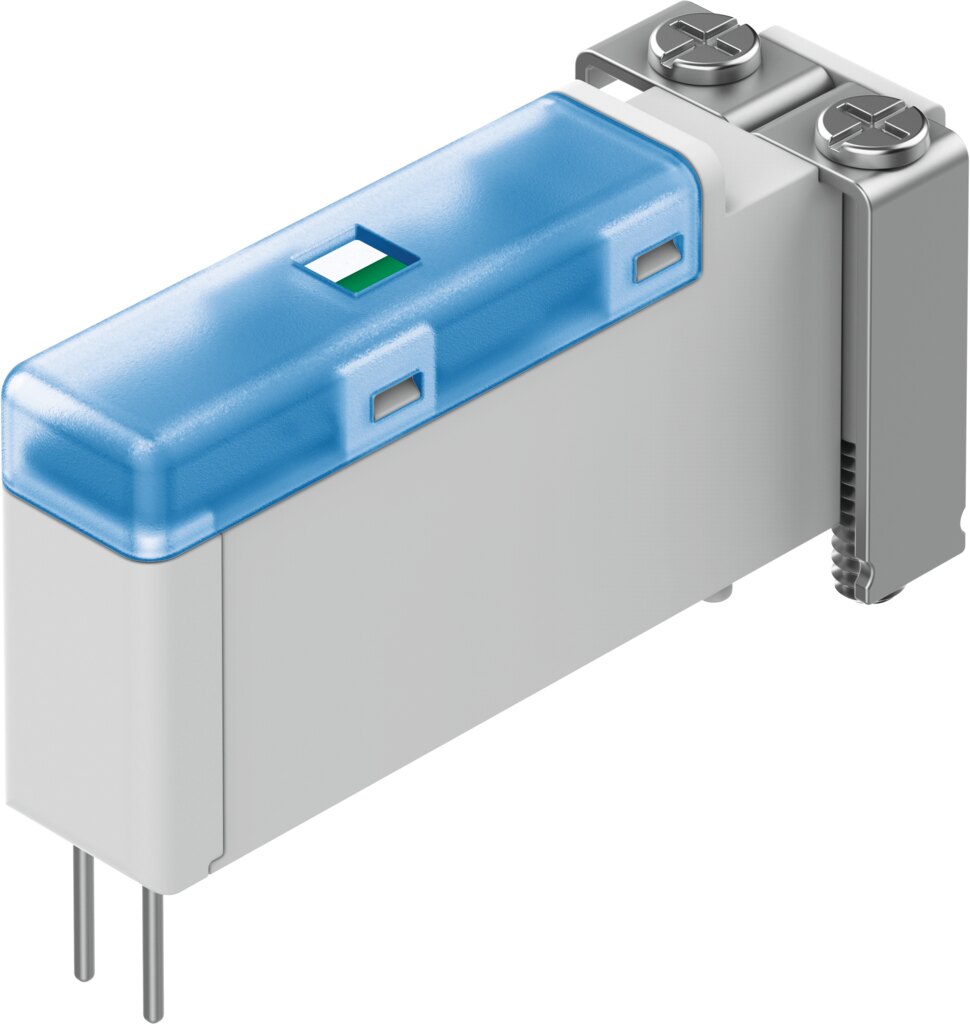

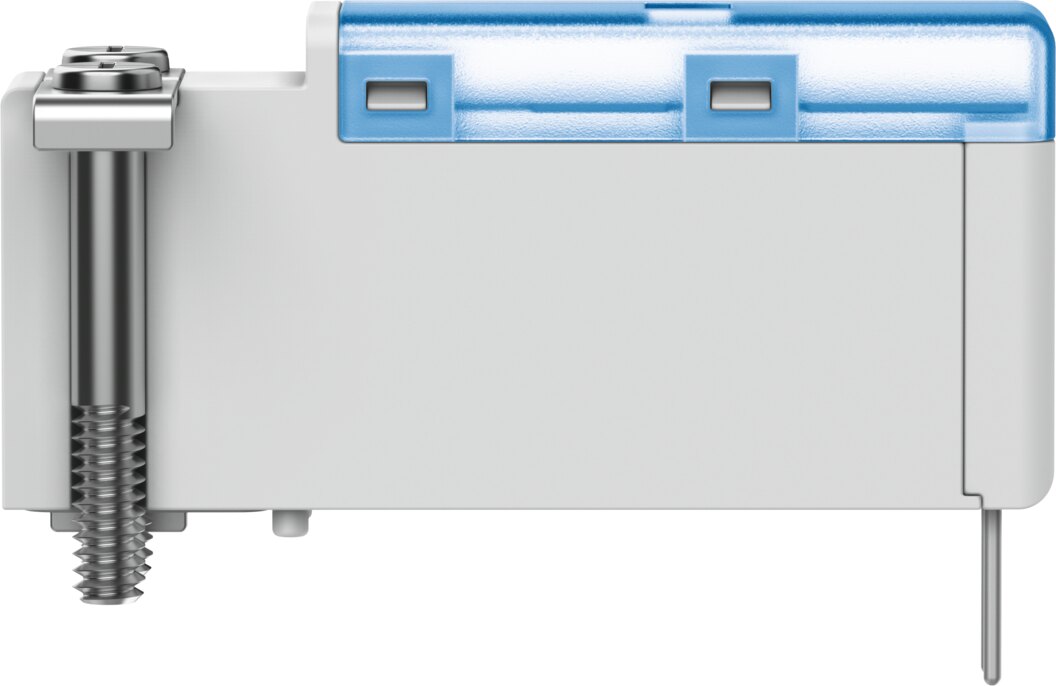

Solenoid valve 3/2-way single solenoid, closed 5.9 mm width VOVK-BT6-M32C-MN-1T1P-FB - Festo 8122774

Festo ✓ Original product Brand new

Solenoid valve VOVK-BT6-M32C-MN-1T1P-FB as a 3/2-way valve (single solenoid, closed) with 5.5 l/min standard nominal flow rate for controlling pneumatic actuators. Also -1 to 7 bar operating pressure, sub-base mounting and 5.9 mm width. Switching times 13 ms on and 6 ms off.

Net
€34.29
excl. VAT
Item FES-8122774
Manufacturer no. VOVK-BT6-M32C-MN-1T1P-FB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VOVK-BT6-M32C-MN-1T1P-FB works as a 3/2-way valve (single solenoid, closed) and reaches 5.5 l/min standard nominal flow rate at -1 to 7 bar operating pressure. It also offers sub-base mounting, 5.9 mm width and 24 V DC operating voltage.

Benefits

  • Flow: 5.5 l/min standard nominal flow rate at only 5.9 mm width
  • Pressure range: -1 to 7 bar, vacuum included
  • Switching times: 13 ms on, 6 ms off
  • Switching frequency: up to 10 Hz
  • Rugged: IP40 protection, corrosion resistance class 1
  • Temperature: 5 to 50 °C ambient

Applications

Typical tasks for the VOVK-BT6-M32C-MN-1T1P-FB are single-acting cylinders, blow air and piloting larger valves. Mounting: with through-hole. Operating medium for the VOVK-BT6-M32C-MN-1T1P-FB: compressed air to ISO 8573-1:2010 [6:4:1], lubricated operation not possible.

Technical data

TypeVOVK-BT6-M32C-MN-1T1P-FB
Festo part number8122774
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Width5.9 mm
Standard nominal flow rate5.5 l/min
pneumatic working portsub-base
Operating pressure-1 to 7 bar
Note on operating pressureoperating pressure at port 3: -1 to 0 bar only
Designpoppet valve with spring return
Reset methodmechanical spring
Degree of protectionIP40
Nominal size0.36 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridenone
Type of pilotingelectrical
Flow directionreversible
Cv value0.006 Gal/min US
Max. switching frequency10 Hz
Switching time off6 ms
Note on switching time offat p between -1 and 6 bar
Switching time on13 ms
Note on switching time on≤ 6 ms at p between 0 and 6 bar, ≤ 13 ms at p between -1 and 0 bar
Duty cycle100% within 500 h
Electrical power consumption0.5 W
Nominal operating voltage DC24 V
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [6:4:1]
Note on operating and pilot mediumlubricated operation not possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-Zone III
Media temperature5 to 50 °C
Relative air humidity70 %
Note on relative air humidityat ambient temperature
Ambient temperature5 to 50 °C
Product weight4.5 g
Electrical connection2-pin
Type of mountingwith through-hole
Pneumatic connection, port 1sub-base
Pneumatic connection, port 3sub-base
Note on materialsRoHS compliant
Material housingPBT
Material springhigh-alloy stainless steel
Weight (shipping)0.007 kg
Weight0.007 kg
ManufacturerFesto
Hersteller-NrVOVK-BT6-M32C-MN-1T1P-FB
EAN4052568550165
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MediumCompressed air
Function3/2 closed monostable
Actuation typeElectrical
Operating voltage24 V DC
Betriebsdruck max [bar]7
Protection ratingIP40
