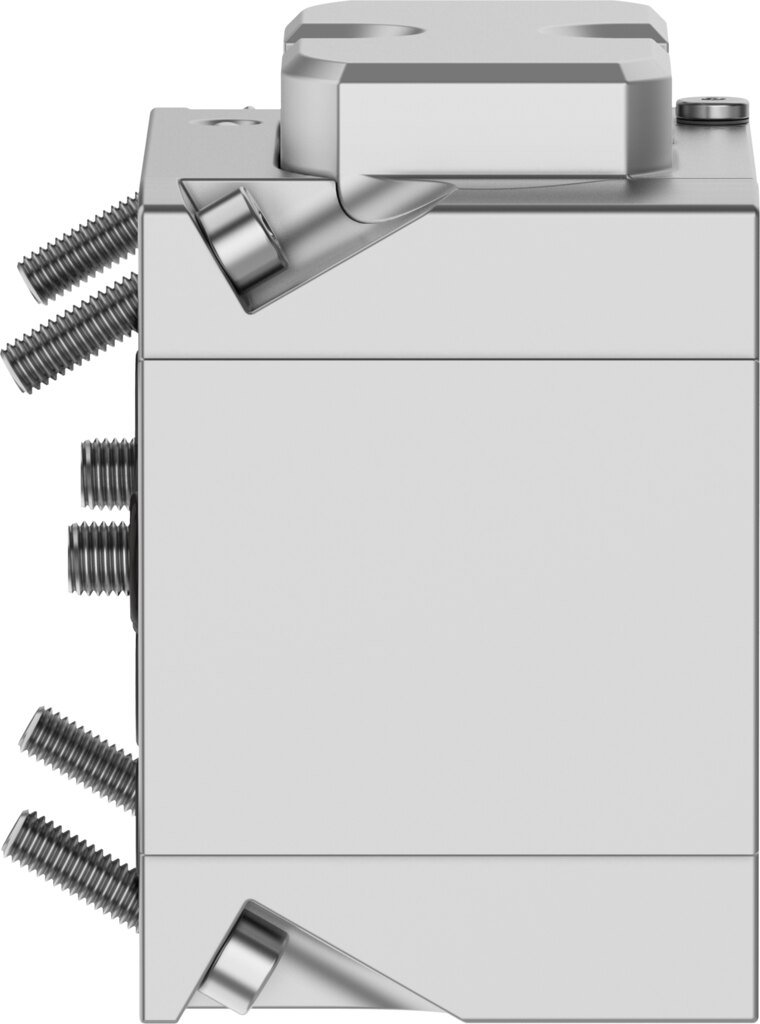

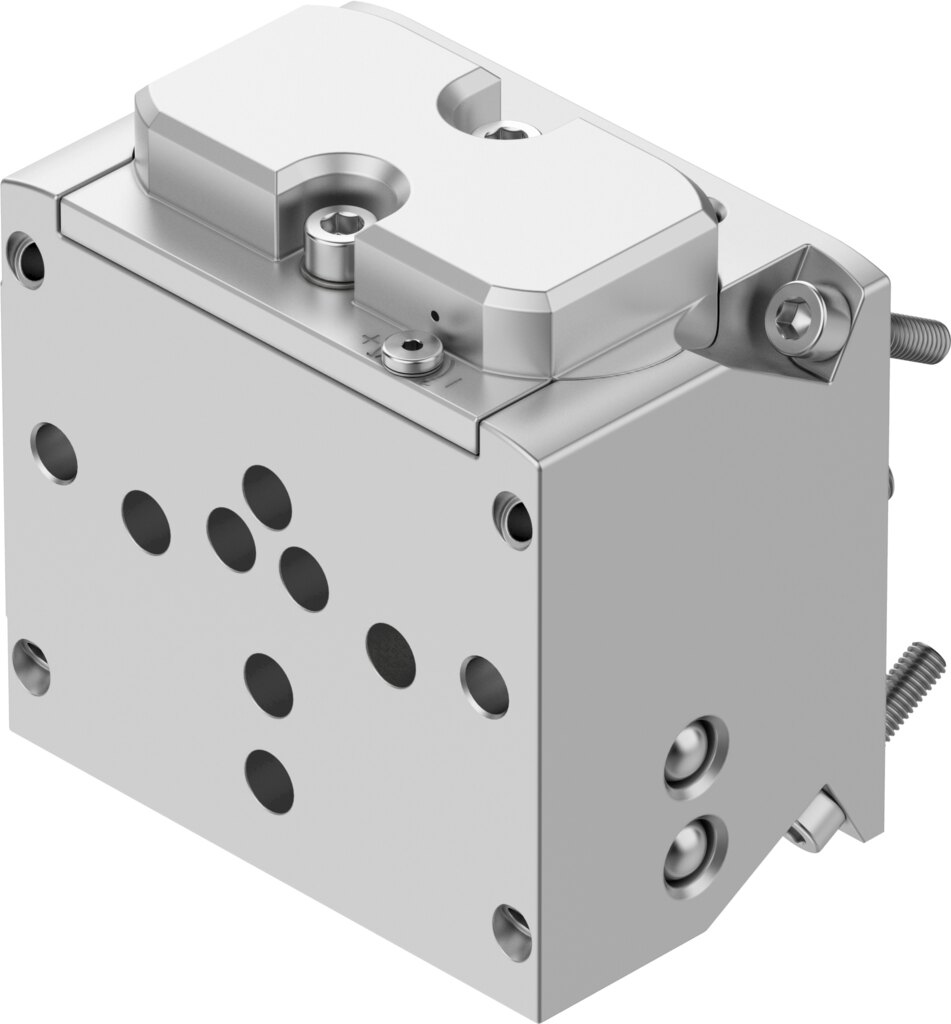

Pneumatic valve ATEX 1240 l/min VOGM-FD100-M33E-M-F90 - Festo 8141658

Festo ✓ Original product Brand new

The VOGM-FD100-M33E-M-F90 switches compressed air as a proportional 3/3-way valve and reaches 1240 l/min standard nominal flow rate. Also 1.4 to 8 bar operating pressure. For hazardous areas: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX).

Net
€636.51
excl. VAT
Item FES-8141658
Manufacturer no. VOGM-FD100-M33E-M-F90
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a proportional 3/3-way valve, the Festo pneumatic valve VOGM-FD100-M33E-M-F90 delivers 1240 l/min standard nominal flow rate at 1.4 to 8 bar operating pressure.

Benefits at a glance

  • Flow: 1240 l/min standard nominal flow rate
  • Pressure range: 1.4 to 8 bar
  • Explosion protection: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
  • Rugged: corrosion resistance class 3
  • Temperature: -40 to 80 °C ambient

Applications

The VOGM-FD100-M33E-M-F90 is designed for hazardous areas: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX). Mounting: with accessories. The VOGM-FD100-M33E-M-F90 operates on compressed air to ISO 8573-1:2010 [7:7:-], inert gas, lubricated operation not possible.

Technical data

TypeVOGM-FD100-M33E-M-F90
Festo part number8141658
Designdiaphragm valve, piloted piston poppet valve
Type of actuationpneumatic
Sealing principlesoft
Mounting positionany
Type of mountingwith accessories
Valve functionproportional 3/3-way valve
Mode of operationsingle-acting
Operating pressure1.4 to 8 bar
Reset methodmechanical spring
Pneumatic connectionsub-base design, airing
Operating mediumcompressed air to ISO 8573-1:2010 [7:7:-], inert gas
Note on operating and pilot mediumlubricated operation not possible
Media temperature-40 to 80 °C
Ambient temperature-40 to 80 °C
Standard nominal flow rate1240 l/min
C value5.58 l/sbar
b value0.214
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364-Zone III
Material housingsmooth-anodised wrought aluminium alloy (20 µm)
Material coversmooth-anodised wrought aluminium alloy (20 µm)
Material sealsEPDM, NBR
Material screwshigh-alloy stainless steel
Material springspring steel
Product weight1560 g
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC3 - high corrosion stress
ManufacturerFesto
Hersteller-NrVOGM-FD100-M33E-M-F90
EAN4052568580292
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MediumCompressed air
Actuation typepneumatic
Betriebsdruck max [bar]8
Temperaturbereich-40-80 °C
