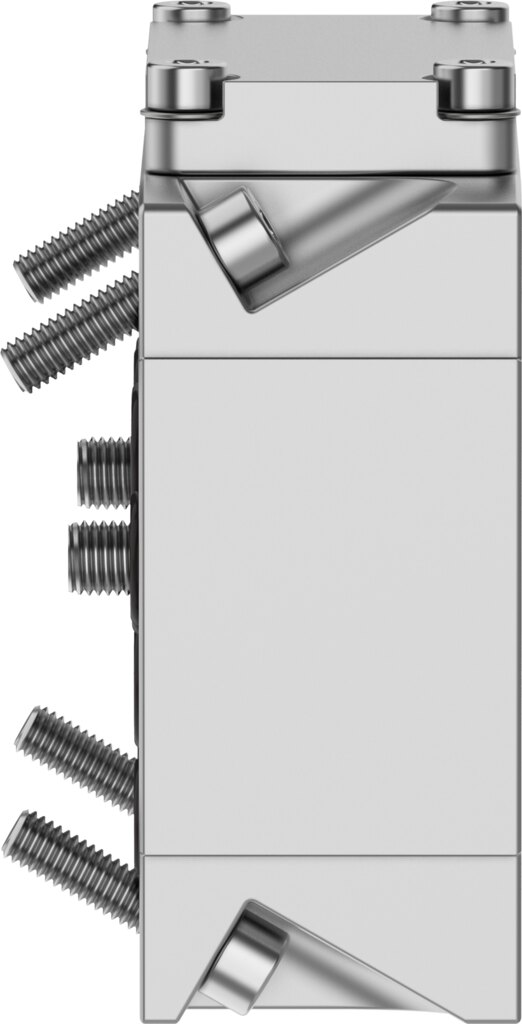

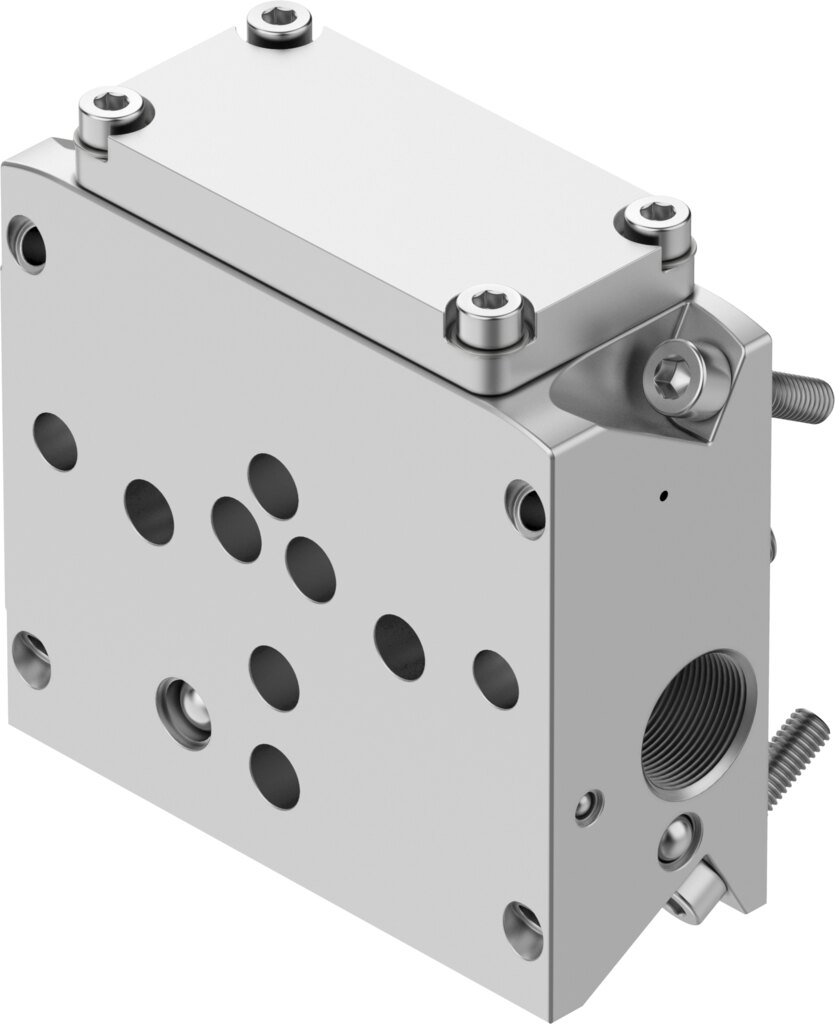

Pneumatic valve G1/2 ATEX VOGI-F100FS-T32H-M-F90 - Festo 8141660
As a fail safe, the Festo pneumatic valve VOGI-F100FS-T32H-M-F90 delivers 1093 l/min standard nominal flow rate. Designed for 3.3 to 8 bar operating pressure and G1/2 port. Explosion protection: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a fail safe, the Festo pneumatic valve VOGI-F100FS-T32H-M-F90 delivers 1093 l/min standard nominal flow rate at 3.3 to 8 bar operating pressure. Designed with G1/2 port.
Benefits at a glance
- Flow: 1093 l/min standard nominal flow rate
- Pressure range: 3.3 to 8 bar
- Explosion protection: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Rugged: corrosion resistance class 3
- Temperature: -20 to 80 °C ambient
Applications
The VOGI-F100FS-T32H-M-F90 is designed for hazardous areas: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX). Mounting: with accessories. Operating medium for the VOGI-F100FS-T32H-M-F90: compressed air to ISO 8573-1:2010 [7:7:-], inert gas, lubricated operation not possible.
Technical data
| Type | VOGI-F100FS-T32H-M-F90 |
|---|---|
| Festo part number | 8141660 |
| Design | piloted piston poppet valve |
| Type of actuation | pneumatic |
| Sealing principle | soft |
| Mounting position | any |
| Type of mounting | with accessories |
| Valve function | fail safe |
| Mode of operation | double-acting |
| Operating pressure | 3.3 to 8 bar |
| Reset method | mechanical spring |
| Pneumatic connection | sub-base design, airing |
| Pneumatic connection, port 1 | G1/2 |
| Operating medium | compressed air to ISO 8573-1:2010 [7:7:-], inert gas |
| Note on operating and pilot medium | lubricated operation not possible |
| Media temperature | -20 to 80 °C |
| Ambient temperature | -20 to 80 °C |
| Standard nominal flow rate | 1093 l/min |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Material housing | smooth-anodised wrought aluminium alloy (20 µm) |
| Material cover | smooth-anodised wrought aluminium alloy (20 µm) |
| Material seals | EPDM, NBR |
| Material screws | high-alloy stainless steel |
| Material spring | spring steel |
| Product weight | 880 g |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VOGI-F100FS-T32H-M-F90 |
| EAN | 4052568580513 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/2 |
| Medium | Compressed air |
| Actuation type | pneumatic |
| Betriebsdruck max [bar] | 8 |
| Temperaturbereich | -20-80 °C |
