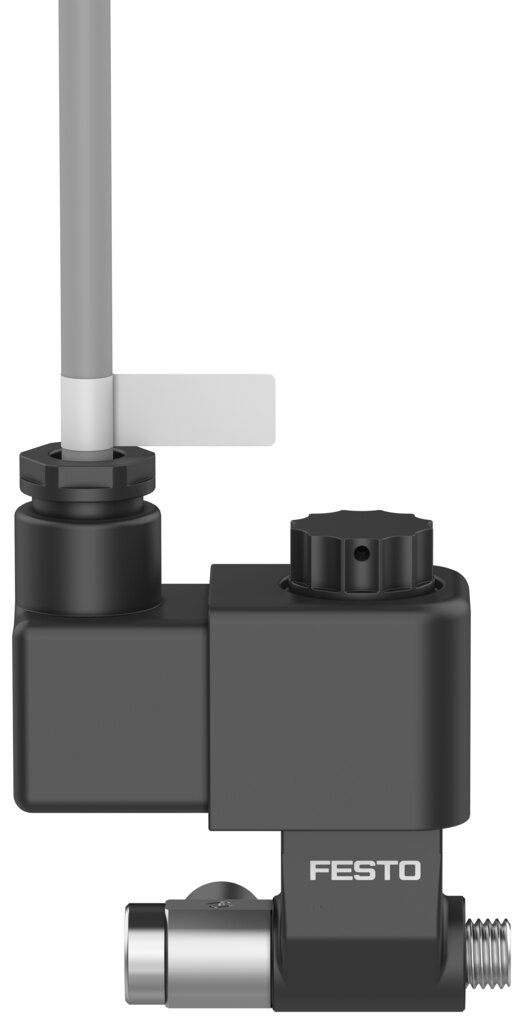

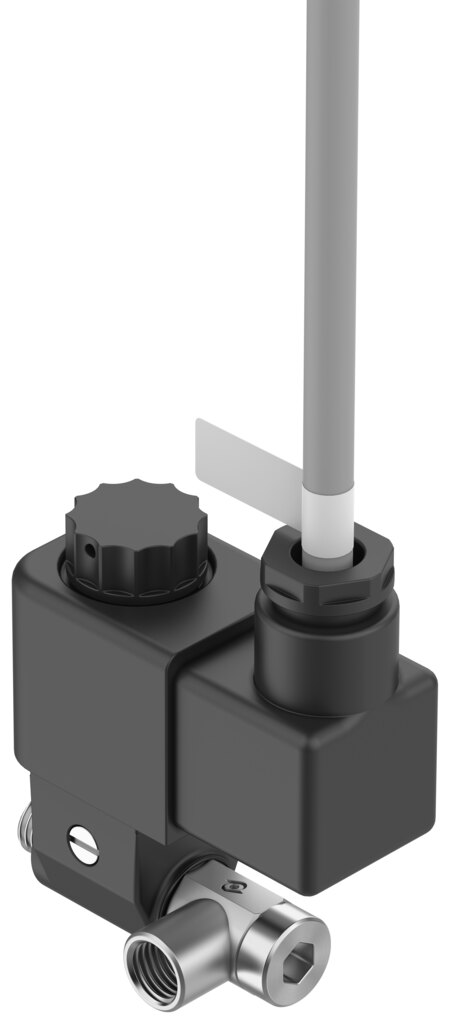

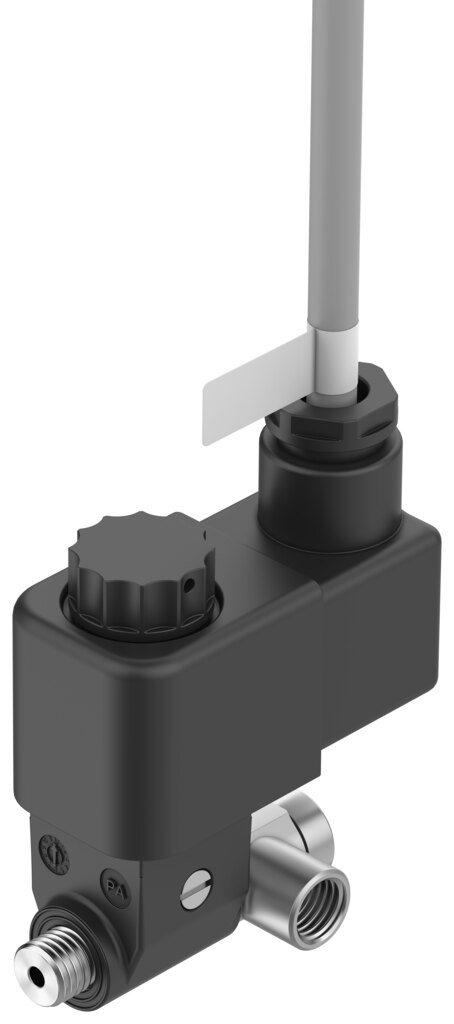

Pilot valve 3/2-way single solenoid, closed G1/8 ATEX VOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M - Festo 8178212

Festo ✓ Original product Brand new

As a 3/2-way valve (single solenoid, closed), the Festo pilot valve VOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M delivers 50 l/min standard nominal flow rate. Also -0.9 to 8 bar operating pressure, G1/8 port and 22 mm width. Approved for hazardous areas to ATEX II 2G, II 2D.

Net
€163.63
excl. VAT
Item FES-8178212
Manufacturer no. VOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As a 3/2-way valve (single solenoid, closed), the Festo pilot valve VOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M delivers 50 l/min standard nominal flow rate at -0.9 to 8 bar operating pressure. Its direct-acting design adds G1/8 port, 22 mm width and 24 V DC operating voltage.

Benefits

  • Flow: 50 l/min standard nominal flow rate at only 22 mm width
  • Pressure range: -0.9 to 8 bar, vacuum included
  • Explosion protection: ATEX category II 2G, II 2D
  • Rugged: IP65 protection, corrosion resistance class 2
  • Temperature: -10 to 50 °C ambient
  • Continuous duty: 100 % duty cycle

Applications

For hazardous areas it is rated ATEX II 2G, II 2D. The VOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M operates on compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

TypeVOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M
Festo part number8178212
Valve function3/2-way, single solenoid, closed
Type of actuationelectrical
Width22 mm
Standard nominal flow rate50 l/min
pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure-0.9 to 8 bar
Designdirectly actuated poppet valve
Reset methodmechanical spring
Degree of protectionIP65
CE mark (see declaration of conformity)to EU Explosion Protection Directive (ATEX), in accordance with EU RoHS Directive
Explosion protection certification outside the EUEPL Gb (BR)
Certificate issuing authorityIECEx PTB 15.0016X, PTB 14 ATEX 2027 X
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx mb IIC T6 Gb
Explosion ignition protection type for dustEx mb tb IIIC T80°C Db
Explosion ambient temperature-20°C ≤ Ta ≤ +50°C
Nominal size1.3 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting
Type of pilotingdirect
Pilot air supplyinternal
Flow directionnon-reversible
Duty cycle100%
Insulation material classF
Coil characteristics24 V DC: 2.6 W
Permissible voltage fluctuations± 10 %
Explosion protectionZone 1 (ATEX), Zone 1 (BR), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (BR), Zone 21 (CN), Zone 21 (IEC-EX), Zone 22 (ATEX)
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-Zone III
Ambient temperature-10 to 50 °C
Product weight418 g
Electrical connectioncable
Cable length3 m
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3M5
Note on materialsRoHS compliant
Material sealsNBR
Material housingPA
Material solenoid coilcopper
Weight (shipping)0.45 kg
Weight0.45 kg
ManufacturerFesto
Hersteller-NrVOFX-LT-M32C-MY-G18-SG18-1C3-EX4-M
EAN4052568630256
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Nominal size DN [mm]1,3
Seal materialNBR
Housing materialPA
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]50
Actuation typeElectrical
Betriebsdruck max [bar]8
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich-10-50 °C
