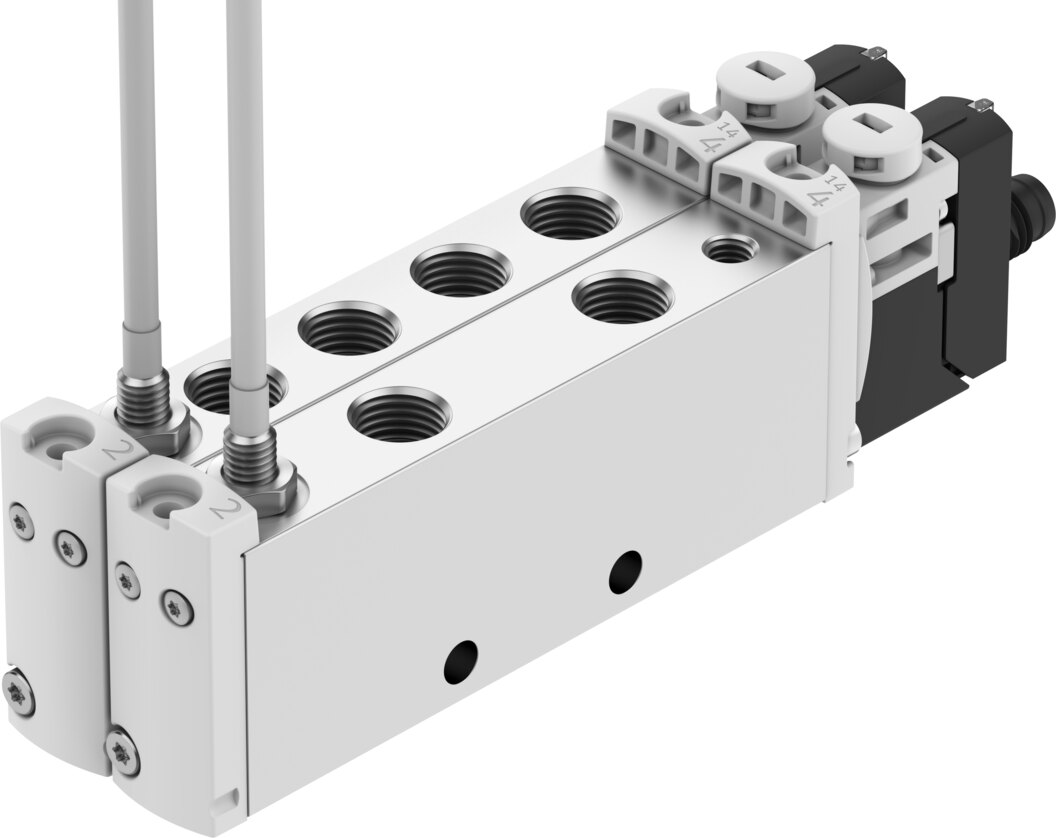

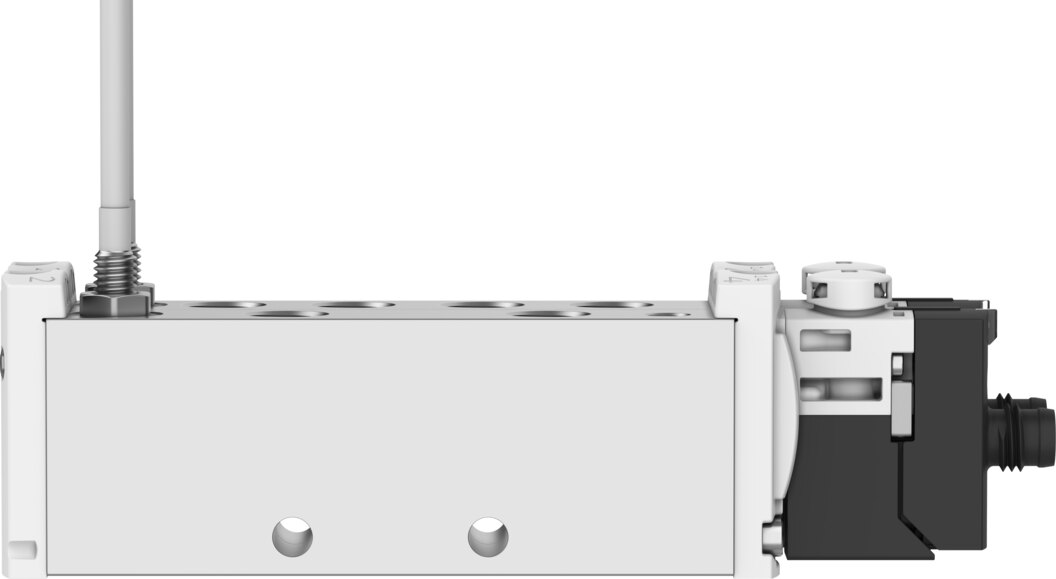

Control block VOFT-L14-T62-MZT2-G18-1M8RL-2APC - Festo 8219317
Net
excl. VAT
€269.10
Item
FES-8219317
Manufacturer no.
VOFT-L14-T62-MZT2-G18-1M8RL-2APC
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

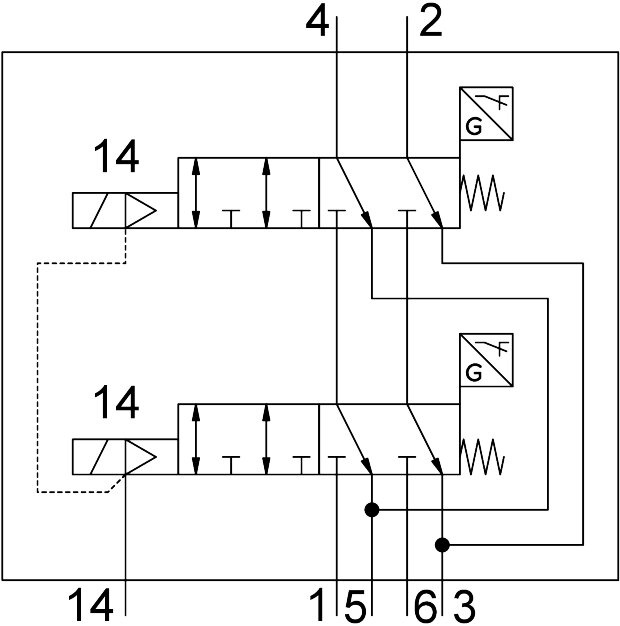

| Valve function | 6/2-way valve, monostable, two-channel |
|---|---|
| Type of actuation | Electrical |
| Construction width | 29 mm |
| Nominal flow rate standardised according to ISO 8778 | 400 l/min |
| Standard nominal flow rate (standardised to DIN 1343) | 360 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | 24 V DC |
| Operating pressure | 0 ... 10 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Exhaust-air function | Cannot be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | EN 60947-5-2 |
| Manual override | Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Non-reversible |
| Measuring principle | Inductive |
| lap | Underlap |
| Reverse polarity protection | For all electrical connections |
| Reverse polarity protection sensor | For all electrical connections |
| Note on forced dynamization | Current information on this topic can be found in Technical Report V |
| Switching position indicator | LED |
| Signal status display | Yellow LED, valve control |
| Switching position sensing | Normal position with sensor |
| Switching status display sensor | LED |
| Pilot pressure | 3.5 ... 8 bar |
| b value | 0.45 |
| C value | 1.5 l/sbar |
| Switching time off | 65 ms |
| Switching time on | 14 ms |
| Valve - sensor switching time on | 11 ms |
| Valve - sensor switching time off | 70 ms |
| Operational voltage range DC | 24 V |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 800 µs |
| Max. negative test pulse with 1 signal | 400 µs |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | -10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 5 according to ISO 14644-1 |
| Storage temperature | -10 ... 60 °C |
| Media temperature | -5 ... 50 °C |
| Sound pressure level | 64 dB(A) |
| Protection against direct and indirect contact | PELV |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 ... 50 °C |
| Nominal altitude of use | 1000 m in accordance with VDE 0580 |
| Product weight | 280 g |
| Operating voltage range, DC sensor | 10 ... 30 V |
| Short-circuit strength sensor | Yes |
| Idle current sensor | 10 mA |
| Max. output current sensor | 200 mA |
| Max. switching frequency sensor | 5000 Hz |
| Residual ripple sensor | ±10% |
| Voltage drop sensor | 2 V |
| Electrical connection | 2x plugs, 3-pin, M8x1 A-encoded to EN 61076-2-104 |
| Sensor connection | Cable, 3-pin, 2.5 m |
| Type of mounting | Via through-hole for M4 screw |
| Pilot air port 14 | M5 |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Pneumatic connection 6 | G1/8 |
| Note on materials | RoHS compliant |
| Material seals | Fluoro rubber, HNBR, NBR |
| Material housing | Wrought aluminium alloy |
| Material cable sheath | PVC |
| Material screws | Steel, chemically nickel-plated |
| Switching element function | N/C contact |
| Weight | 0.29 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VOFT-L14-T62-MZT2-G18-1M8RL-2APC |
| EAN | 4052568903053 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
