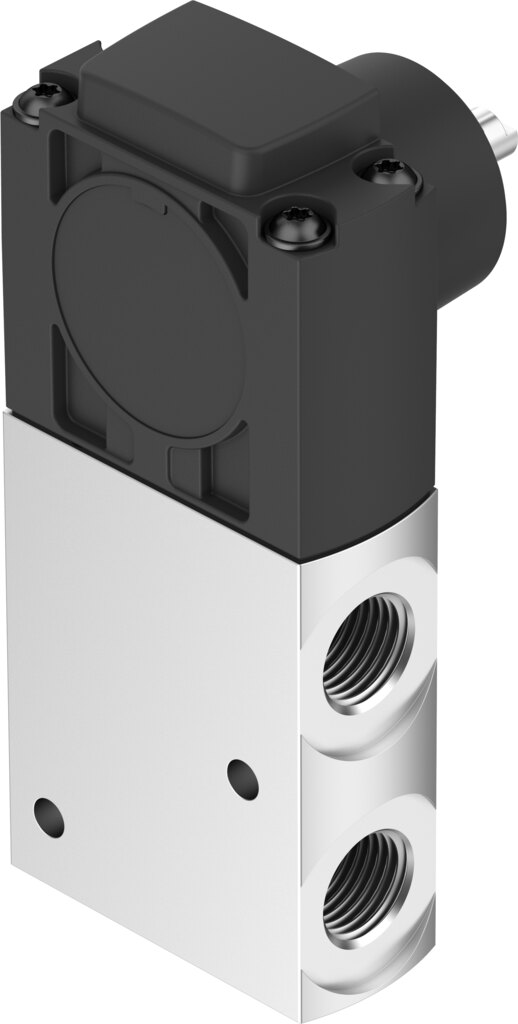

Swivel lever valve 3/2-way monostable, G1/4, 870 l/min, up to 10 bar VMEF-VLT-M32-M-G14 - Festo 8048976

Festo ✓ Original product Brand new

The Festo swivel lever valve VMEF-VLT-M32-M-G14 is designed for detecting end positions on moving machine parts and switches as a monostable 3/2-way valve. Rated for 870 l/min standard nominal flow, G1/4 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.2 Nm.

Net
€82.19
excl. VAT
Item FES-8048976
Manufacturer no. VMEF-VLT-M32-M-G14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

870 l/min standard nominal flow at up to 10 bar operating pressure: that is the capacity of the swivel lever valve VMEF-VLT-M32-M-G14. The swivel lever valve switches as a monostable 3/2-way valve.

Your benefits

  • Standard nominal flow rate of 870 l/min at 6 mm nominal size.
  • Switches vacuum from -0.95 bar as well as positive pressure up to 10 bar.
  • G1/4 connection on all 3 valve ports.
  • Actuating torque 1.2 Nm.
  • Corrosion resistance class CRC 1.
  • Maximum switching frequency 2.5 Hz.

Application

The VMEF-VLT-M32-M-G14 is the right choice for detecting end positions on moving machine parts. For mounting, the VMEF-VLT-M32-M-G14 is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VMEF-VLT-M32-M-G14.

Technical data

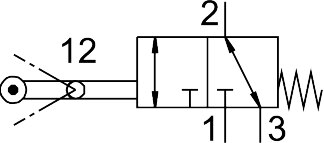

Valve function3/2-way, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)870 l/min
Pneumatic working portG1/4
Operating pressure-0.95 to 10 bar
DesignSwivel actuation, poppet seat
Type of resetMechanical spring
Nominal size6 mm
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapZero overlap
Maximum actuating speed with lateral actuation1 m/s
Maximum switching frequency2.5 Hz
Cam angle45°
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Note on ambient temperatureInfluence of heat on wear
Actuating torque1.2 Nm
Product weight178 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.22 kg
ManufacturerFesto
Hersteller-NrVMEF-VLT-M32-M-G14
EAN4052568646868
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/4
Nominal size DN [mm]6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 monostable
Flow rate [l/min]870
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
