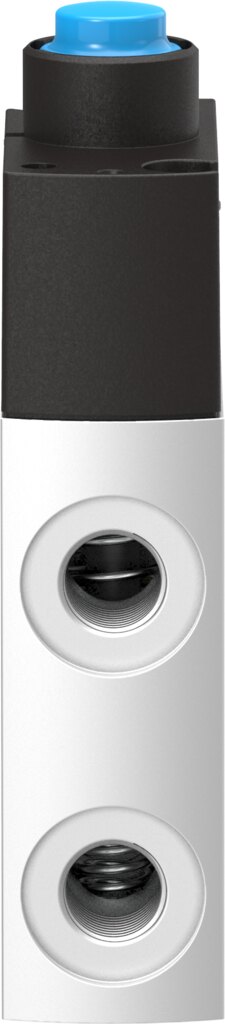

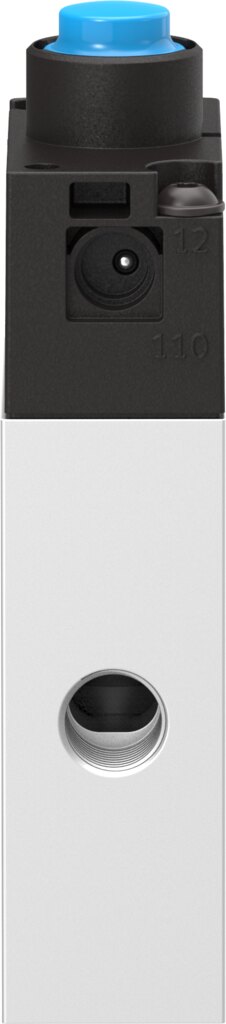

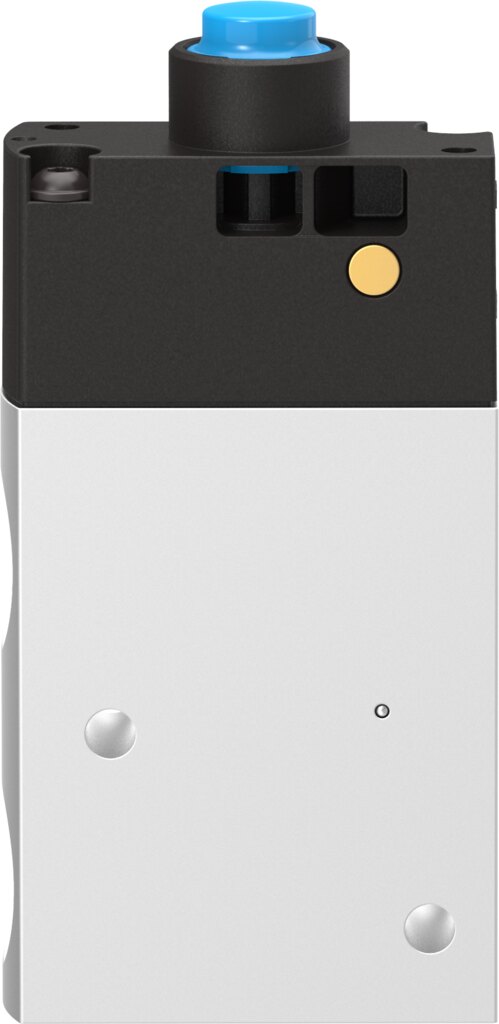

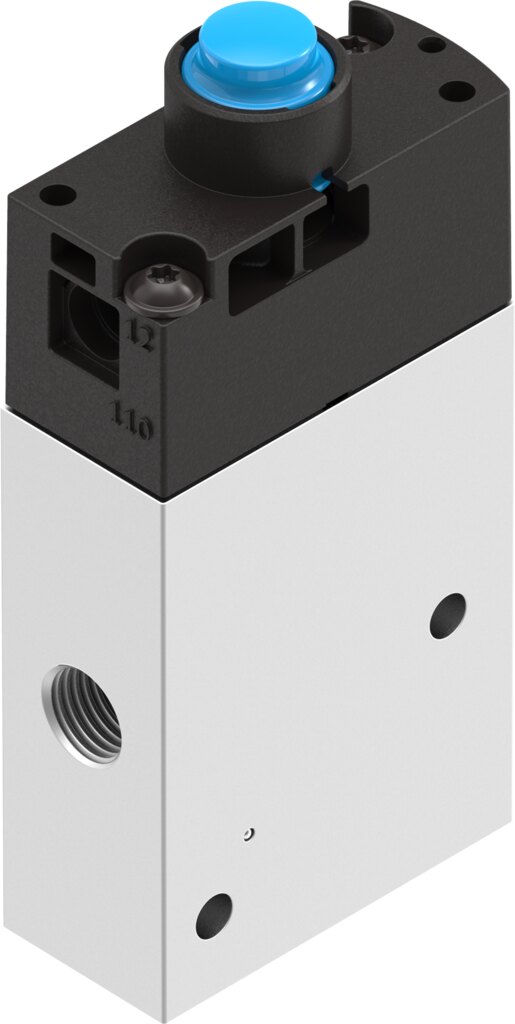

Stem actuated valve 3/2-way normally closed, 1/8 NPT, 750 l/min VMEF-STC-M32-M-N18 - Festo 8031333

Festo ✓ Original product Brand new

The Festo stem actuated valve VMEF-STC-M32-M-N18 is designed for detecting end positions on moving machine parts and switches as a 3/2-way valve (normally closed, monostable). Key data: 750 l/min standard nominal flow, 1/8 NPT ports and 3.5 to 10 bar operating pressure. 20 mm width.

Net
€57.08
excl. VAT
Item FES-8031333
Manufacturer no. VMEF-STC-M32-M-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The stem actuated valve VMEF-STC-M32-M-N18 switches up to 10 bar and passes 750 l/min standard nominal flow. The stem actuated valve switches as a 3/2-way valve (normally closed, monostable).

Why this valve

  • Standard nominal flow rate of 750 l/min at 5.6 mm nominal size.
  • Operating pressure 3.5 to 10 bar.
  • 1/8 NPT thread for direct fitting connection.
  • Actuating force 14 N.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VMEF-STC-M32-M-N18.
  • Corrosion resistance class CRC 2.

Application

In operation the VMEF-STC-M32-M-N18 mainly handles detecting end positions on moving machine parts. The stem actuated valve is fastened via through-holes. If the VMEF-STC-M32-M-N18 is run on lubricated air, lubrication must be maintained from then on. Do not use the actuator as a mechanical stop.

Technical data

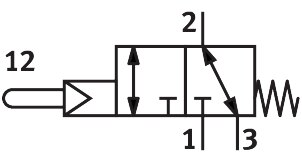

Valve function3/2-way, normally closed, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure3.5 to 10 bar
DesignPoppet seat
Type of resetMechanical spring
Nominal size5.6 mm
Note on useDo not use as a mechanical stop
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionReversible
OverlapZero overlap
Pilot pressure3.5 to 10 bar
Maximum switching frequency3 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force14 N
Product weight131 g
Type of mountingWith through-hole
Pilot air port 12/14M5
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.14 kg
ManufacturerFesto
Hersteller-NrVMEF-STC-M32-M-N18
EAN4052568428556
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]750
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
