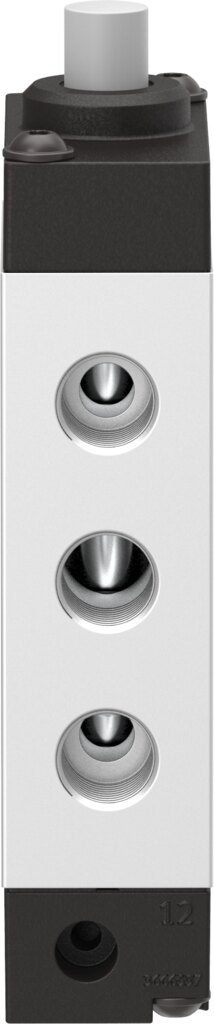

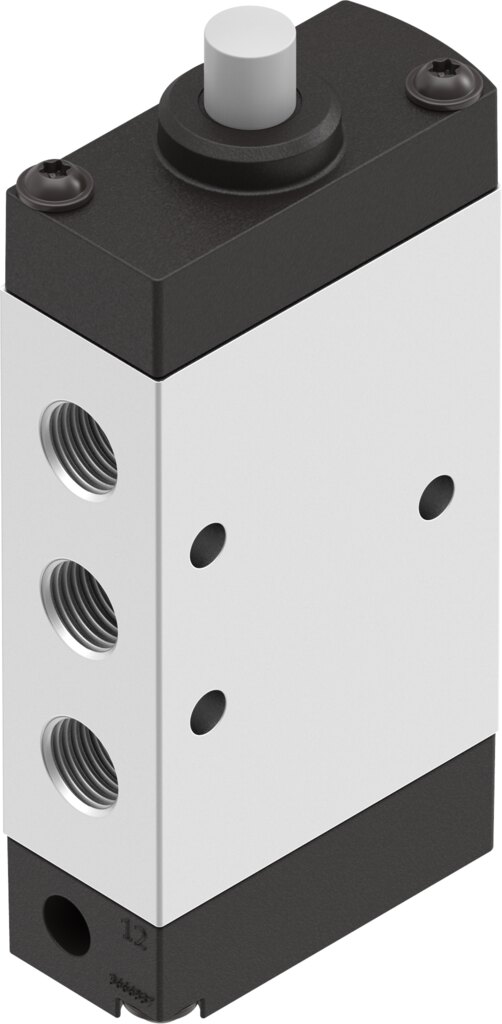

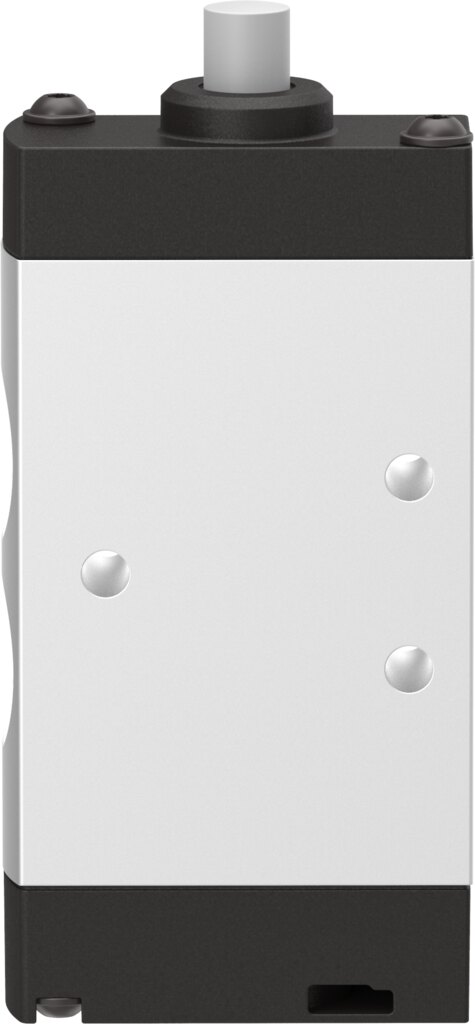

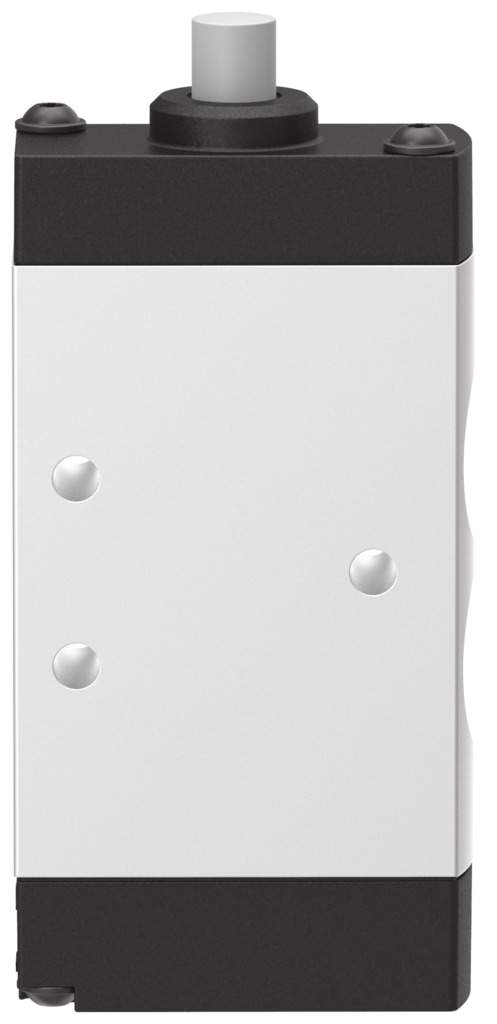

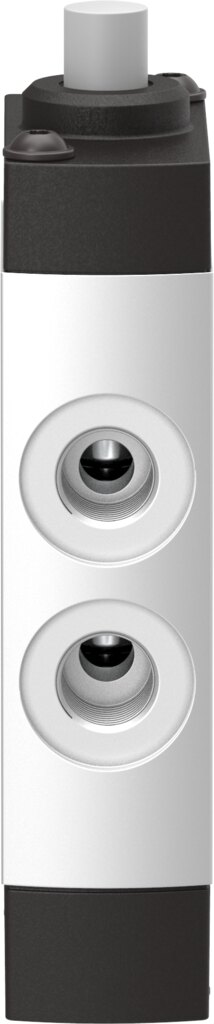

Stem actuated valve 5/2-way monostable, 1/8 NPT, 750 l/min VMEF-S-M52-E-N18 - Festo 8031309
The Festo stem actuated valve VMEF-S-M52-E-N18 is designed for limit switch tasks without electrical signals and switches as a monostable 5/2-way valve. Key data: 750 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating force 28 N.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The stem actuated valve VMEF-S-M52-E-N18 switches up to 10 bar and passes 750 l/min standard nominal flow. The stem actuated valve switches as a monostable 5/2-way valve.
Why this valve
- Standard nominal flow rate of 750 l/min at 5.2 mm nominal size.
- Vacuum and positive pressure: -0.95 to 10 bar.
- 1/8 NPT thread for direct fitting connection.
- Actuating force 28 N.
- Rated for ATEX zones 1 and 2 (gas) and 21 and 22 (dust), so the VMEF-S-M52-E-N18 can also switch in hazardous areas.
- Corrosion resistance class CRC 2.
Application
In operation the VMEF-S-M52-E-N18 mainly handles limit switch tasks without electrical signals. The stem actuated valve is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VMEF-S-M52-E-N18. Do not use the actuator as a mechanical stop.
Technical data

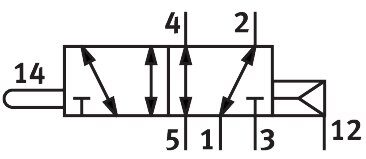

| Valve function | 5/2-way, monostable |
|---|---|
| Type of actuation | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 750 l/min |
| Pneumatic working port | 1/8 NPT |
| Operating pressure | -0.95 to 10 bar |
| Design | Piston spool |
| Type of reset | Pneumatic spring |
| Nominal size | 5.2 mm |
| Note on use | Do not use as a mechanical stop |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Overlap | Positive overlap |
| Maximum switching frequency | 3 Hz |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Actuating force | 28 N |
| Product weight | 144 g |
| Type of mounting | With through-hole |
| Pilot air port 12/14 | M5 |
| Pneumatic connection, port 1 | 1/8 NPT |
| Pneumatic connection, port 2 | 1/8 NPT |
| Pneumatic connection, port 3 | 1/8 NPT |
| Pneumatic connection, port 4 | 1/8 NPT |
| Pneumatic connection, port 5 | 1/8 NPT |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
| Weight | 0.155 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMEF-S-M52-E-N18 |
| EAN | 4052568428372 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Thread | NPT 1/8 |
| Nominal size DN [mm] | 5,2 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Flow rate [l/min] | 750 |
| Actuation type | Mechanical |
| Series | VMEF |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/8 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
