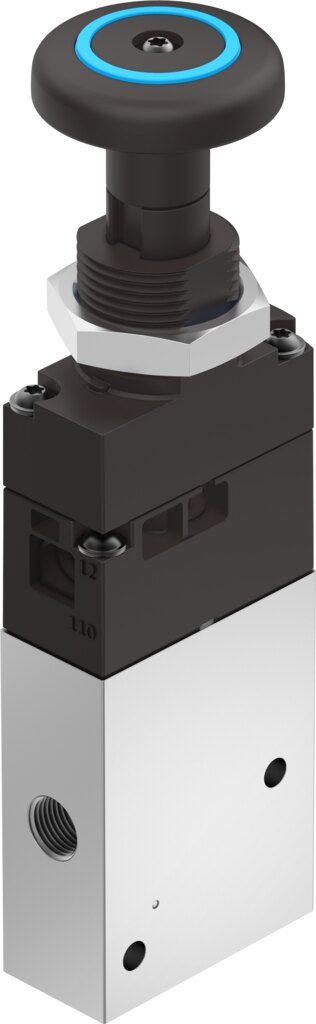

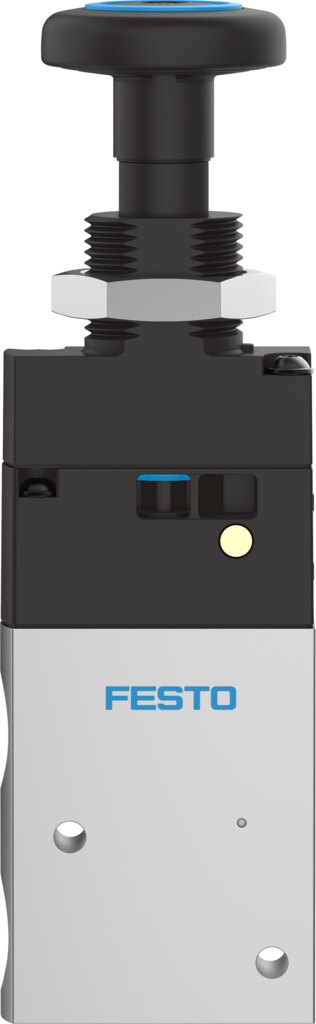

Pushbutton valve 3/2-way bistable, 1/8 NPT, 750 l/min, up to 10 bar VHEF-PTC-B32-N18 - Festo 5299719

Festo ✓ Original product Brand new

The Festo pushbutton valve VHEF-PTC-B32-N18 works with a bistable 3/2-way function and suits control panels and set-up mode on compressed air systems. Key data: 750 l/min standard nominal flow, 1/8 NPT ports and 3.5 to 10 bar operating pressure. 20 mm width. Switches with 20 N actuating force.

Net
€79.89
excl. VAT
Item FES-5299719
Manufacturer no. VHEF-PTC-B32-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

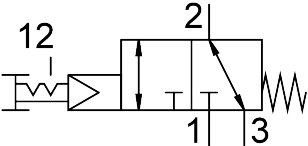

With 750 l/min standard nominal flow and up to 10 bar operating pressure, the pushbutton valve VHEF-PTC-B32-N18 switches the compressed air. The pushbutton valve switches as a bistable 3/2-way valve.

Your benefits

  • Standard nominal flow rate of 750 l/min at 5.6 mm nominal size.
  • Operating pressure 3.5 to 10 bar.
  • 1/8 NPT connection on all 3 valve ports.
  • Switches with 20 N actuating force.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VHEF-PTC-B32-N18.
  • Corrosion resistance class CRC 1.

Application

The VHEF-PTC-B32-N18 is the right choice for control panels and set-up mode on compressed air systems. The pushbutton valve is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VHEF-PTC-B32-N18. The manufacturer specifies actuation by hand only.

Technical data

Valve function3/2-way, bistable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure3.5 to 10 bar
DesignPoppet seat
Nominal size5.6 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionReversible
OverlapZero overlap
Pilot pressure3.5 to 10 bar
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force20 N
Unlocking force25 N
Product weight168 g
Type of mountingWith through-hole
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
ManufacturerFesto
Hersteller-NrVHEF-PTC-B32-N18
EAN4052568422752
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 bistable
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
