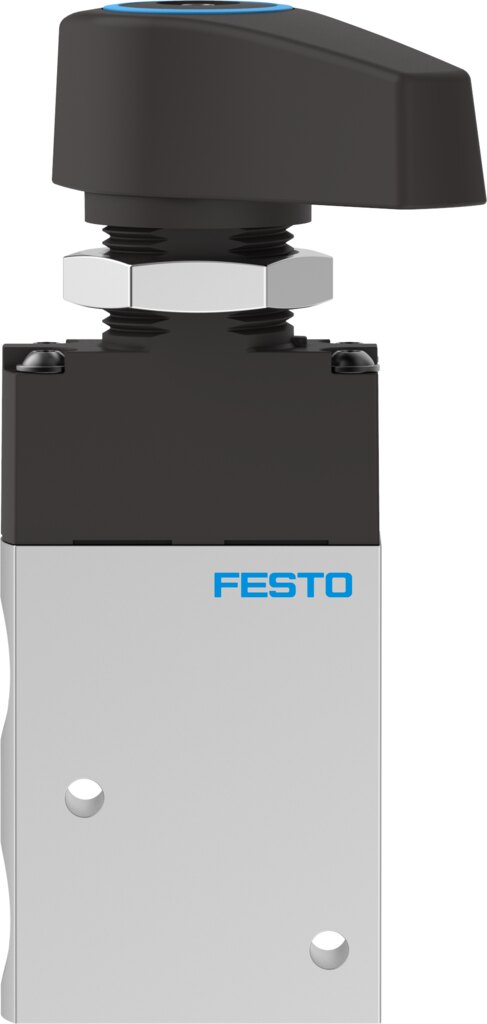

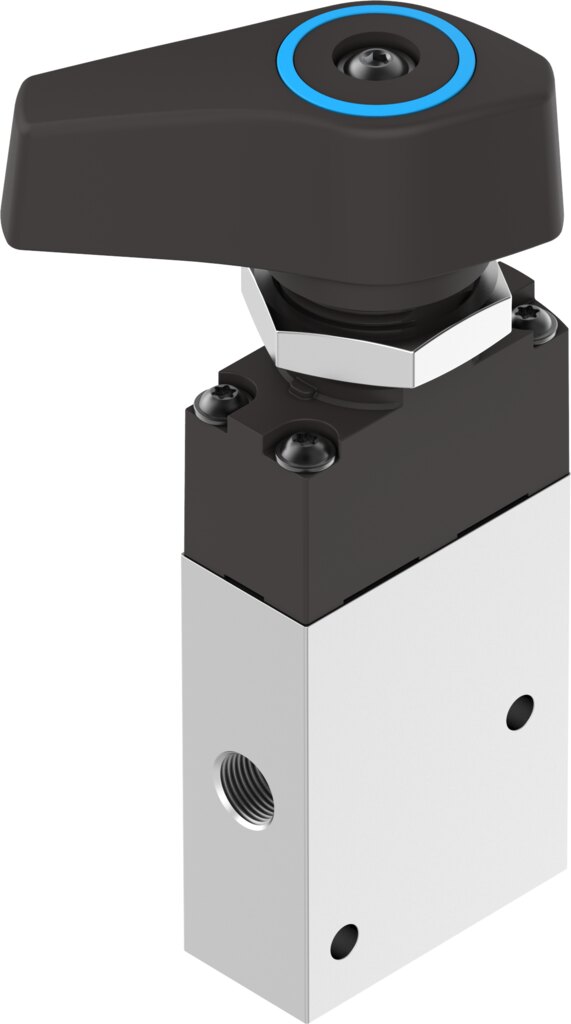

Selector valve 3/2-way bistable, G1/8, 750 l/min, up to 10 bar VHEF-ET-B32-G18 - Festo 8080964

Festo ✓ Original product Brand new

The Festo selector valve VHEF-ET-B32-G18 is designed for controlling cylinders and drives by hand and switches as a bistable 3/2-way valve. Rated for 750 l/min standard nominal flow, G1/8 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 0.7 Nm. Detenting manual override.

Net
€61.46
excl. VAT
Item FES-8080964
Manufacturer no. VHEF-ET-B32-G18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 750 l/min standard nominal flow and up to 10 bar operating pressure, the selector valve VHEF-ET-B32-G18 switches the compressed air directly, without pilot control. It works as a bistable 3/2-way valve.

Why this valve

  • Standard nominal flow rate of 750 l/min at 5.6 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • G1/8 thread for direct fitting connection.
  • Actuating torque 0.7 Nm.
  • Explosion protection for ATEX zones 1, 2, 21 and 22, so the VHEF-ET-B32-G18 can be used in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

The VHEF-ET-B32-G18 is the right choice for controlling cylinders and drives by hand. The selector valve is fastened via through-holes. If the VHEF-ET-B32-G18 is run on lubricated air, lubrication must be maintained from then on. The manufacturer specifies actuation by hand only.

Technical data

Valve function3/2-way, bistable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working portG1/8
Operating pressure-0.95 to 10 bar
DesignPoppet seat
Nominal size5.6 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting
Type of pilotingDirect
Flow directionReversible
OverlapZero overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.7 Nm
Unlocking torque0.4 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation200 N
Product weight206 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
Weight0.23 kg
ManufacturerFesto
Hersteller-NrVHEF-ET-B32-G18
EAN4052568454098
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/8
Nominal size DN [mm]5,6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 bistable
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionG1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
