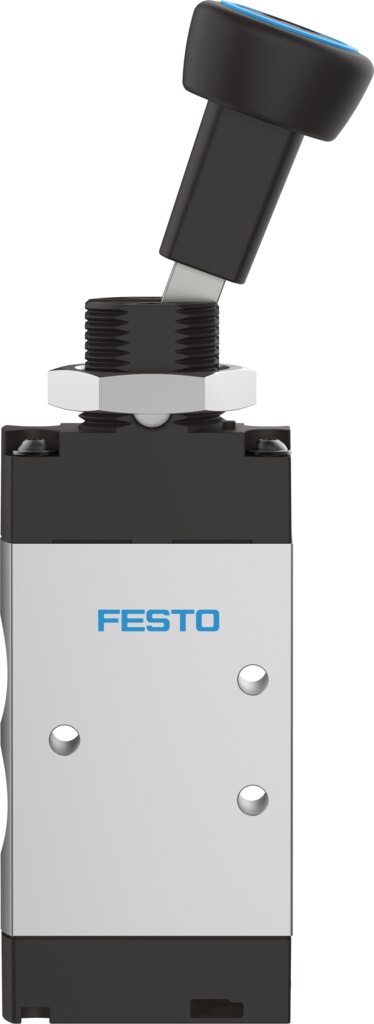

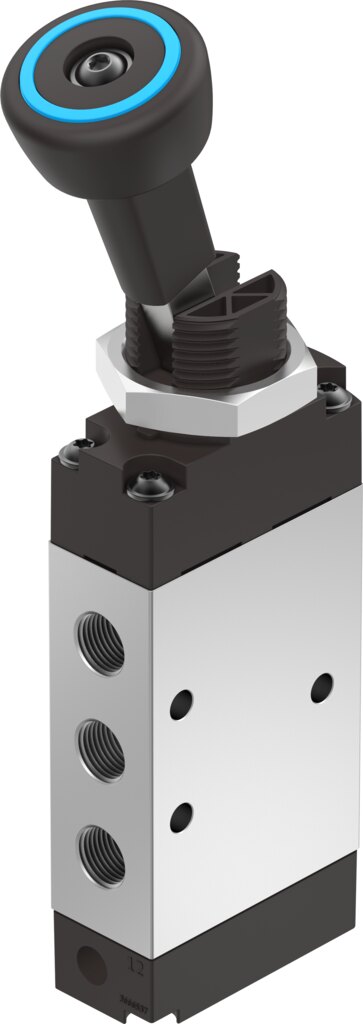

Toggle lever valve 5/2-way bistable, G1/4, 1200 l/min, up to 10 bar VHEF-V-B52-G14 - Festo 5300035
For control panels and set-up mode on compressed air systems, Festo supplies the toggle lever valve VHEF-V-B52-G14 with a bistable 5/2-way function. Key data: 1200 l/min standard nominal flow, G1/4 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.1 Nm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 1200 l/min standard nominal flow and up to 10 bar operating pressure, the toggle lever valve VHEF-V-B52-G14 switches the compressed air directly, without pilot control. It works as a bistable 5/2-way valve.
Benefits
- 1200 l/min standard nominal flow through a 7 mm nominal size.
- Vacuum and positive pressure: -0.95 to 10 bar.
- G1/4 connection on all 5 valve ports.
- Actuating torque 1.1 Nm.
- ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VHEF-V-B52-G14.
- Corrosion resistance class CRC 1.
Application
Typical tasks for the VHEF-V-B52-G14: control panels and set-up mode on compressed air systems. For mounting, the VHEF-V-B52-G14 is fastened via through-holes. Lubricated operation of the VHEF-V-B52-G14 is possible, but must then be maintained permanently. The manufacturer specifies actuation by hand only.
Technical data

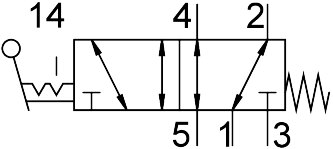

| Valve function | 5/2-way, bistable |
|---|---|
| Type of actuation | Manual |
| Width | 20 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 1200 l/min |
| Pneumatic working port | G1/4 |
| Operating pressure | -0.95 to 10 bar |
| Design | Piston spool |
| Nominal size | 7 mm |
| Exhaust air function | Can be throttled |
| Note on use | Actuate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Overlap | Positive overlap |
| Maximum switching frequency | 0.5 Hz |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Actuating torque | 1.1 Nm |
| Unlocking torque | 0.6 Nm |
| Maximum force on actuation | 200 N |
| Maximum lateral force on actuation | 140 N |
| Product weight | 240 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
| Material lever | Reinforced PA |
| Weight | 0.26 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VHEF-V-B52-G14 |
| EAN | 4052568422882 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Thread | G 1/4 |
| Nominal size DN [mm] | 7 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 1200 |
| Actuation type | Manually |
| Series | VHEF |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
