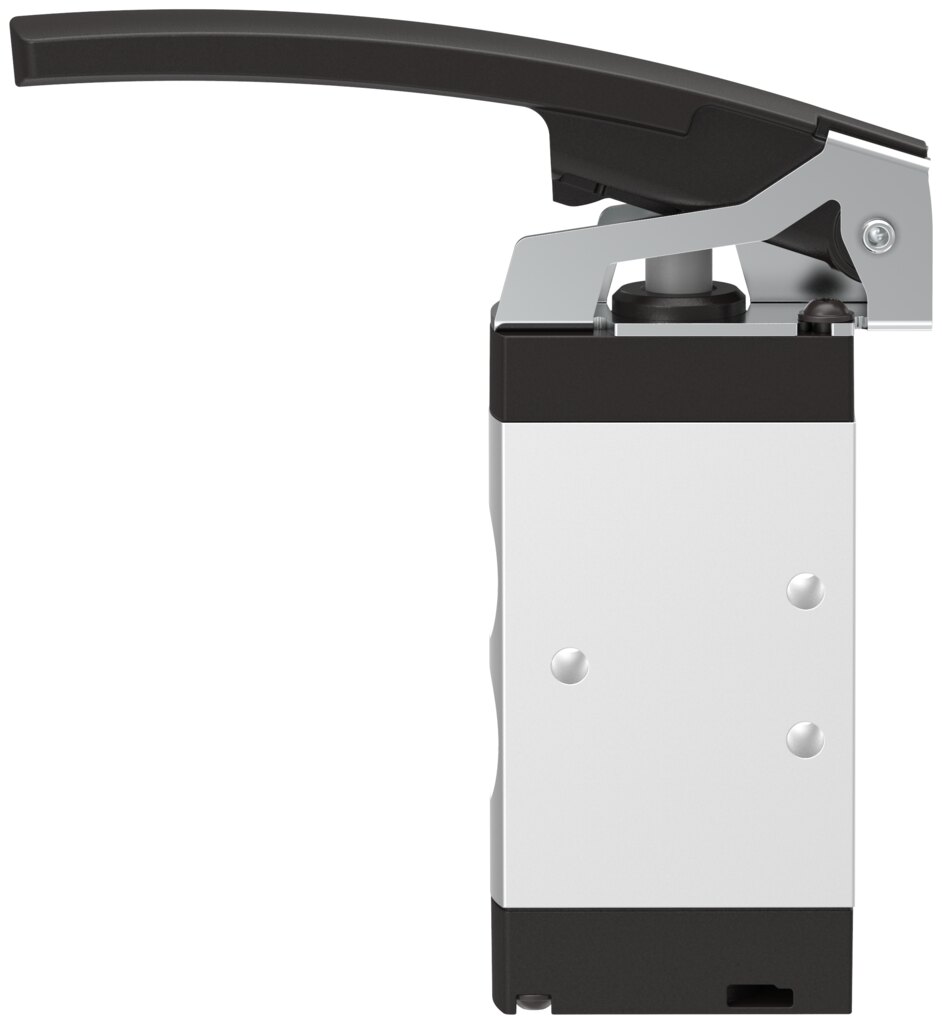

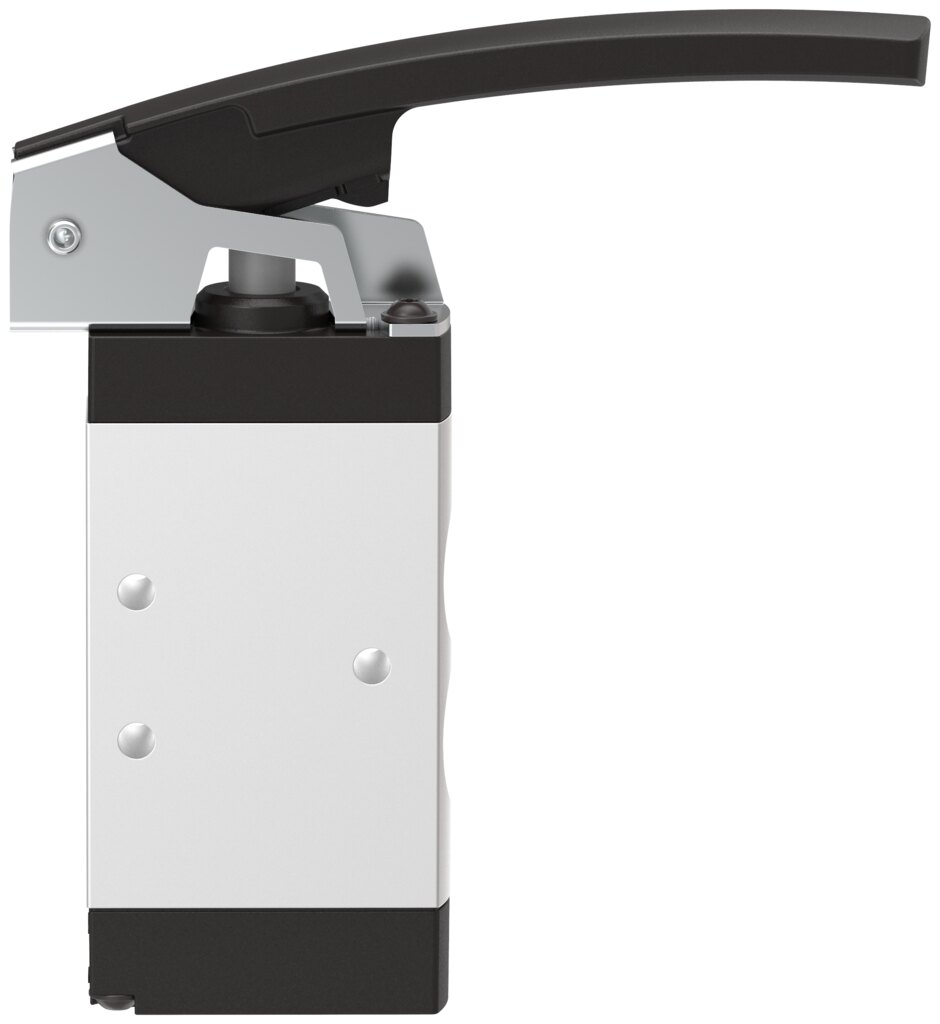

Finger lever valve 5/2-way monostable, 1/8 NPT, 750 l/min VHEF-L-M52-E-N18 - Festo 4500007

Festo ✓ Original product Brand new

For controlling cylinders and drives by hand, Festo supplies the finger lever valve VHEF-L-M52-E-N18 with a monostable 5/2-way function. It offers 750 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating force 8 N.

Net
€108.81
excl. VAT
Item FES-4500007
Manufacturer no. VHEF-L-M52-E-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 750 l/min standard nominal flow and up to 10 bar operating pressure, the finger lever valve VHEF-L-M52-E-N18 switches the compressed air directly, without pilot control. It works as a monostable 5/2-way valve.

Your benefits

  • Standard nominal flow rate of 750 l/min at 5.2 mm nominal size.
  • Works from -0.95 bar vacuum up to 10 bar positive pressure.
  • 1/8 NPT connection on all 5 valve ports.
  • Actuating force 8 N.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VHEF-L-M52-E-N18.
  • Corrosion resistance class CRC 1.

Application

The VHEF-L-M52-E-N18 is the right choice for controlling cylinders and drives by hand. For mounting, the VHEF-L-M52-E-N18 is fastened via through-holes. If the VHEF-L-M52-E-N18 is run on lubricated air, lubrication must be maintained from then on. The manufacturer specifies actuation by hand only.

Technical data

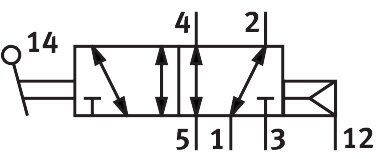

Valve function5/2-way, monostable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Nominal size5.2 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force8 N
Product weight184 g
Type of mountingWith through-hole
Pilot air port 12/14M5
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
ManufacturerFesto
Hersteller-NrVHEF-L-M52-E-N18
EAN4052568418496
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
