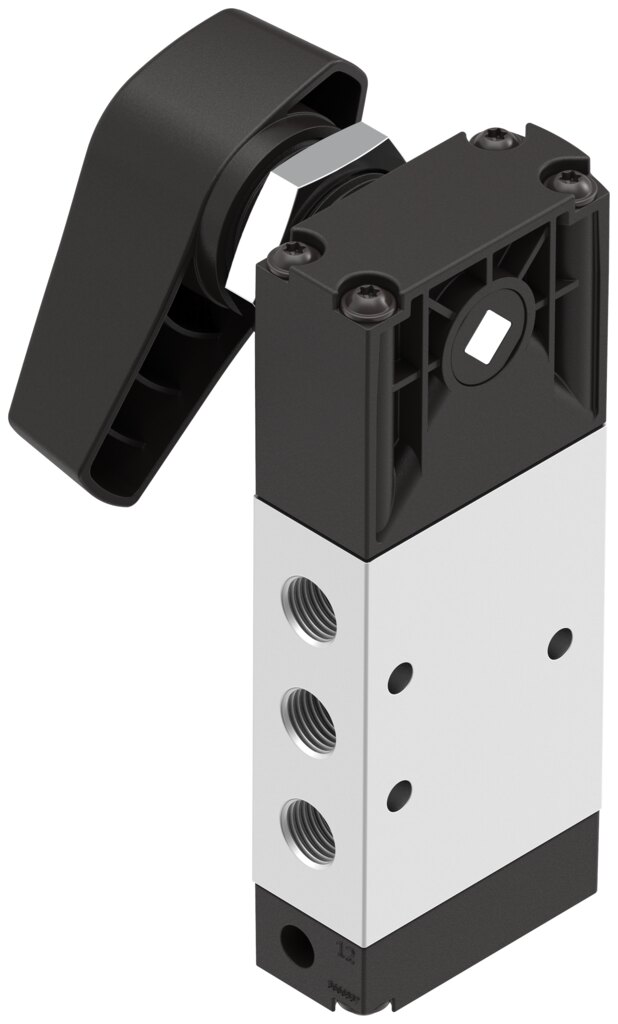

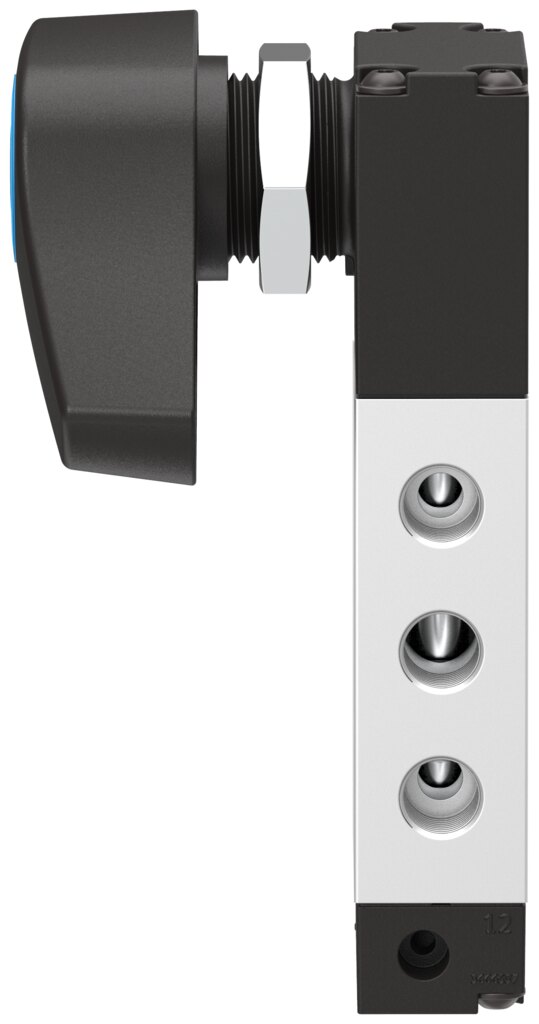

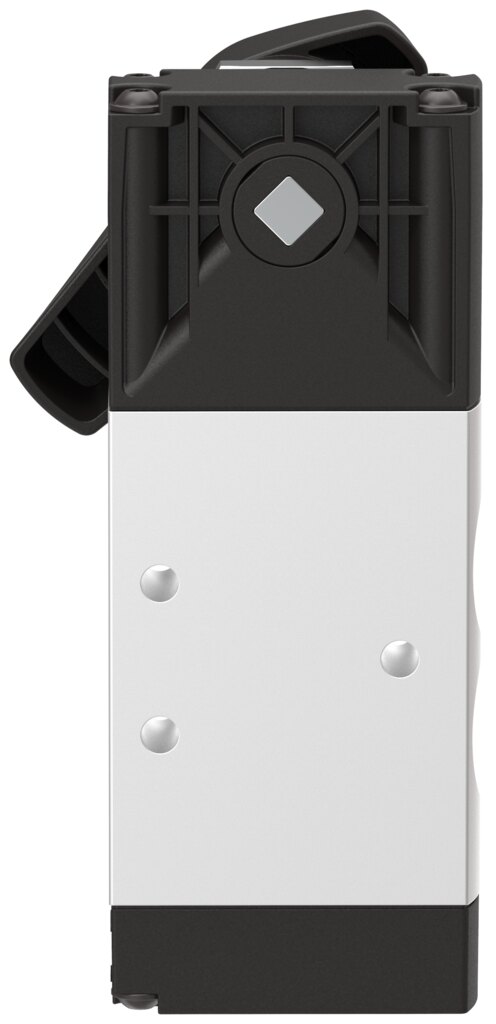

Selector valve 5/3-way mid-position exhausted, 1/8 NPT, 530 l/min VHEF-ES-B53E-N18 - Festo 4414820

Festo ✓ Original product Brand new

The Festo selector valve VHEF-ES-B53E-N18 is designed for controlling cylinders and drives by hand and switches as a 5/3-way valve with exhausted mid-position. Rated for 530 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 0.3 Nm.

Net
€105.75
excl. VAT
Item FES-4414820
Manufacturer no. VHEF-ES-B53E-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 530 l/min standard nominal flow and up to 10 bar operating pressure, the selector valve VHEF-ES-B53E-N18 switches the compressed air directly, without pilot control. It works as a 5/3-way valve with exhausted mid-position.

Your benefits

  • Standard nominal flow rate of 530 l/min at 5.2 mm nominal size.
  • Operating pressure -0.95 to 10 bar, so vacuum circuits on the 1/8 NPT port are covered too.
  • 1/8 NPT connection on all 5 valve ports.
  • Actuating torque 0.3 Nm.
  • Rated for ATEX zones 1 and 2 (gas) and 21 and 22 (dust), so the VHEF-ES-B53E-N18 can also switch in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

In operation the VHEF-ES-B53E-N18 mainly handles controlling cylinders and drives by hand. The selector valve is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VHEF-ES-B53E-N18. The manufacturer specifies actuation by hand only.

Technical data

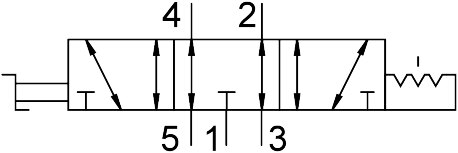

Valve function5/3-way, mid-position exhausted
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)530 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Nominal size5.2 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.3 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation200 N
Product weight235 g
Type of mountingWith through-hole
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
ManufacturerFesto
Hersteller-NrVHEF-ES-B53E-N18
EAN4052568418267
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]530
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
