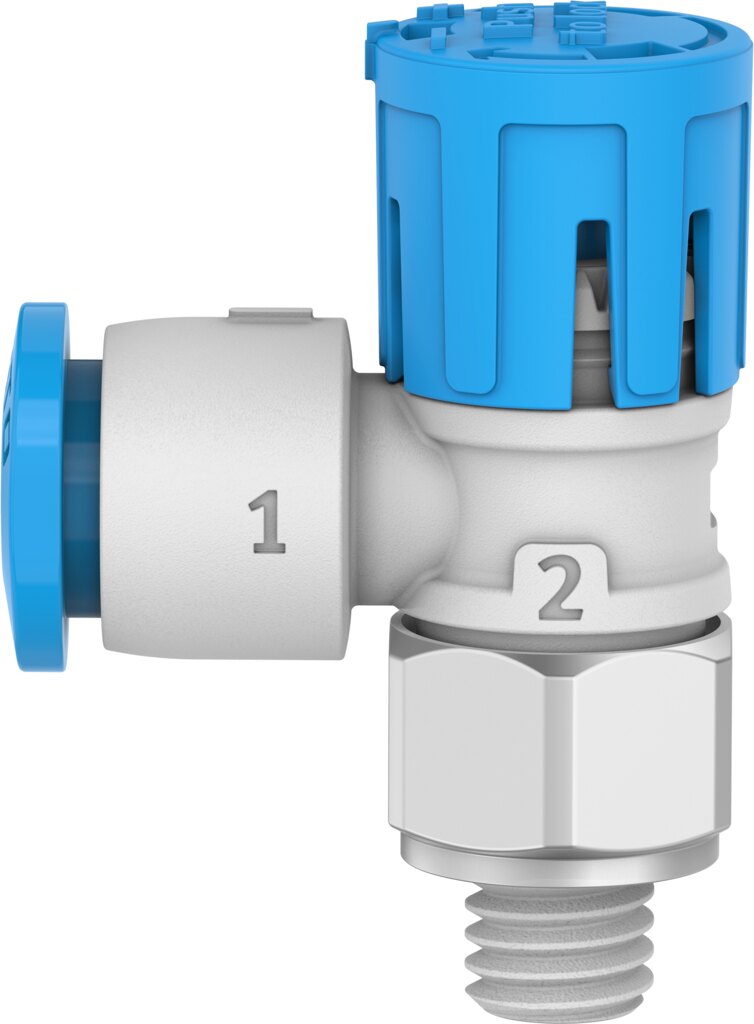

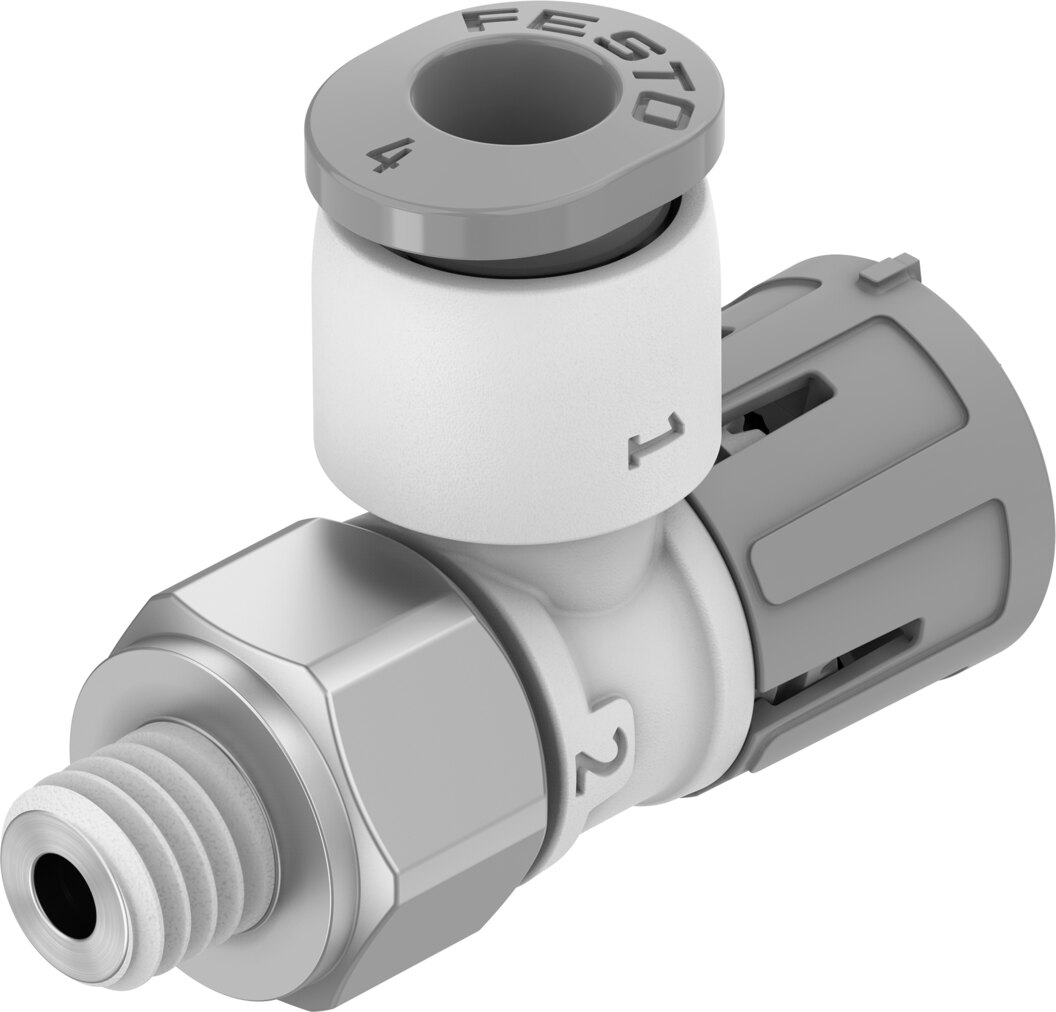

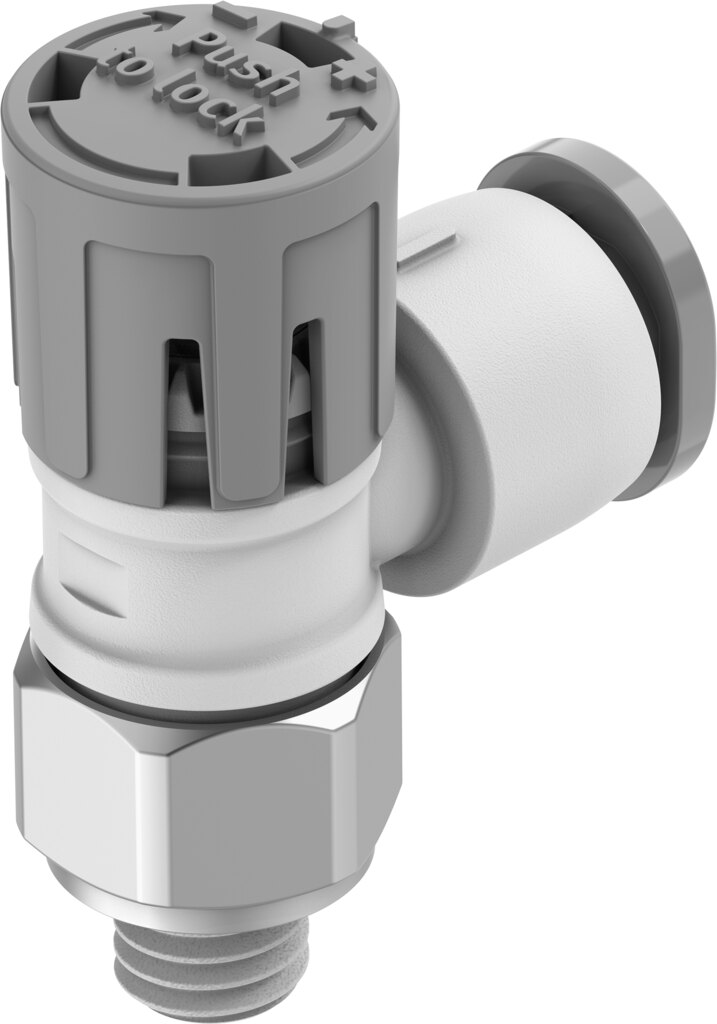

One-way flow control valve for exhaust air, M5 and QS-4, 90 l/min VFOE-LE-T-M5-Q4-F1A - Festo 8157642

Festo ✓ Original product Brand new

VFOE-LE-T-M5-Q4-F1A controls the piston speed by throttling the exhaust air. Main values: ports M5 and QS-4, nominal flow in flow control direction 90 l/min, operating pressure 0.2 to 10 bar. The return flow of 50 to 90 l/min passes freely through the check valve. Weight 6.4 g.

Net
€11.05
excl. VAT
Item FES-8157642
Manufacturer no. VFOE-LE-T-M5-Q4-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

90 l/min standard nominal flow rate in flow control direction: VFOE-LE-T-M5-Q4-F1A controls the piston speed by throttling the exhaust air. The return flow of 50 to 90 l/min passes freely through the check valve.

Benefits

  • Flow rate: standard nominal flow rate in flow control direction 90 l/min, in non-return direction 50 to 90 l/min
  • Pressure range: 0.2 to 10 bar operating pressure
  • Connections: QS-4, M5
  • Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364 zone III
  • Explosion protection: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
  • Battery production: suitable with reduced Cu/Zn/Ni values (F1a)

Applications

It is typically installed directly in the port of a double-acting cylinder. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in. Lubricated operation possible, then required.

Technical data

TypeVFOE-LE-T-M5-Q4-F1A
Festo part number8157642
Valve functionExhaust air one-way flow control function
Pneumatic connection, port 1QS-4
Pneumatic connection, port 2M5
Type of actuationManual
Adjustment componentRotary knob with lock
Type of mountingScrew-in
Standard nominal flow rate in flow control direction90 l/min
Standard nominal flow rate in non-return direction50 to 90 l/min
Ambient temperature-10 to 60 °C
Material housingPBT
Explosion protectionObserve the note in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Mounting positionAny
Width across flats9 mm
Rotatability360°, no continuous swivelling permitted
Operating pressure, full temperature range0.2 to 10 bar
Standard flow rate in flow control direction (6 to 0 bar)150 l/min
Standard flow rate in non-return direction (6 to 0 bar)130 to 160 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
LABS (PWIS) conformityVDMA24364 zone III
Suitability for Li-ion battery productionSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability (measured to ISO 14644-14)Class 4 to ISO 14644-1
Medium temperature-10 to 60 °C
Max. tightening torque2.4 Nm
Nominal tightening torque2 Nm
Tolerance for nominal tightening torque± 20 %
Product weight3.3 g
Note on materialsRoHS-compliant
Material coverPBT
Material dynamic sealsHNBR
Material threaded boltElectroless nickel-plated steel
Material release ringPBT
Material static sealsNBR
Weight (shipping)6.4 g
Weight0.006 kg
ManufacturerFesto
Hersteller-NrVFOE-LE-T-M5-Q4-F1A
EAN4052568590000
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
ThreadM5
For hose OD [mm]4
MediumCompressed air
FunctionExhaust air throttle check valve function
Flow rate [l/min]90
Actuation typeManually
Schlüsselweite [mm]9
Betriebsdruck max [bar]10
Pneumatic connectionQS-4
Temperaturbereich-10-60 °C
Temperature (max.)60
