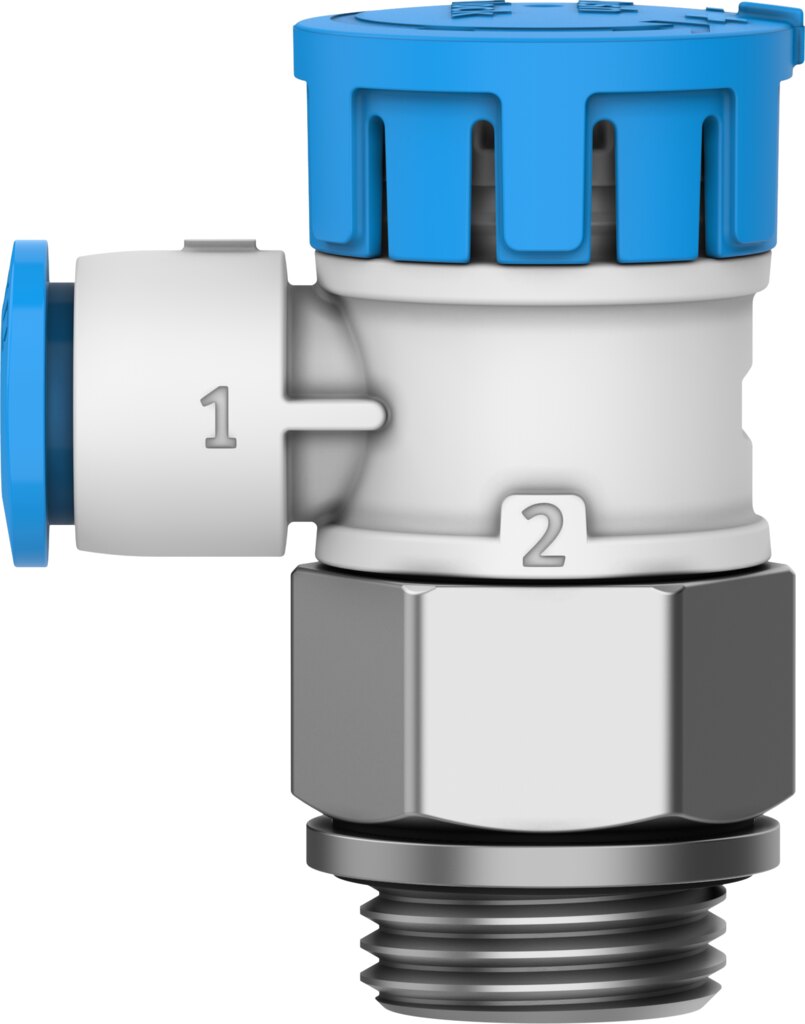

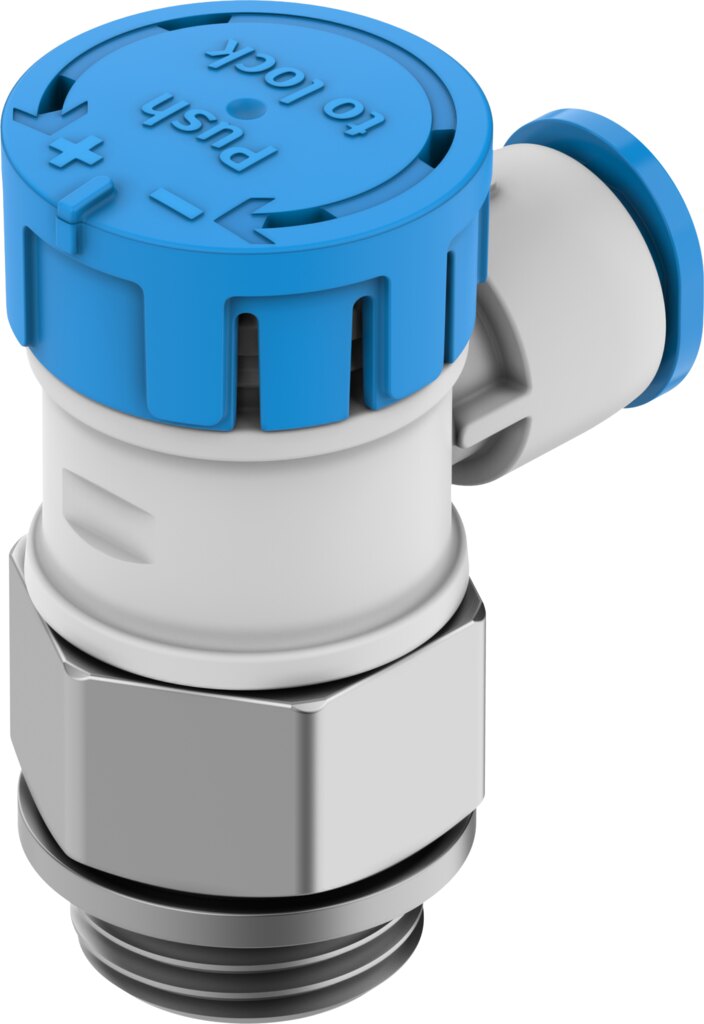

One-way flow control valve for exhaust air, G1/4 and QS-6, 400 l/min VFOE-LE-T-G14-Q6-F1A - Festo 8223997
VFOE-LE-T-G14-Q6-F1A throttles the exhaust air of a cylinder and so determines its speed. Key data: ports G1/4 and QS-6, nominal flow in flow control direction 400 l/min, operating pressure 0.2 to 10 bar. The return flow of 350 to 450 l/min passes freely through the check valve. Weight 18 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
400 l/min standard nominal flow rate in flow control direction: VFOE-LE-T-G14-Q6-F1A throttles the exhaust air of a cylinder and so determines its speed. The return flow of 350 to 450 l/min passes freely through the check valve.
Benefits
- Flow rate: standard nominal flow rate in flow control direction 400 l/min, in non-return direction 350 to 450 l/min
- Pressure range: 0.2 to 10 bar operating pressure
- Connections: QS-6, G1/4
- Cleanroom and paint compatibility: class 4 to ISO 14644-1, LABS conformity VDMA24364 zone III
- Explosion protection: Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Battery production: suitable with reduced Cu/Zn/Ni values (F1a)
Applications
It is typically installed directly in the port of a double-acting cylinder. Operating medium: compressed air to ISO 8573-1:2010 [7:4:4]. Mounting: screw-in. Lubricated operation possible, then required.
Technical data
| Type | VFOE-LE-T-G14-Q6-F1A |
|---|---|
| Festo part number | 8223997 |
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | QS-6 |
| Pneumatic connection, port 2 | G1/4 |
| Type of actuation | Manual |
| Adjustment component | Rotary knob with lock |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 400 l/min |
| Standard nominal flow rate in non-return direction | 350 to 450 l/min |
| Ambient temperature | -10 to 60 °C |
| Material housing | PBT |
| Explosion protection | Observe the note in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Mounting position | Any |
| Width across flats | 16 mm |
| Rotatability | 360°, no continuous swivelling permitted |
| Operating pressure, full temperature range | 0.2 to 10 bar |
| Standard flow rate in flow control direction (6 to 0 bar) | 610 l/min |
| Standard flow rate in non-return direction (6 to 0 bar) | 700 to 800 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (measured to ISO 14644-14) | Class 4 to ISO 14644-1 |
| Medium temperature | -10 to 60 °C |
| Max. tightening torque | 12 Nm |
| Nominal tightening torque | 10 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 16 g |
| Note on materials | RoHS-compliant |
| Material cover | PBT |
| Material dynamic seals | HNBR |
| Material threaded bolt | Electroless nickel-plated steel |
| Material release ring | PBT |
| Material static seals | NBR |
| Weight (shipping) | 18 g |
| Weight | 0.018 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VFOE-LE-T-G14-Q6-F1A |
| EAN | 4052568771768 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Thread | G 1/4 |
| For hose OD [mm] | 6 |
| Medium | Compressed air |
| Function | Exhaust air throttle check valve function |
| Flow rate [l/min] | 400 |
| Actuation type | Manually |
| Schlüsselweite [mm] | 16 |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | QS-6 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
