With 8 stations this valve terminal bundles the valves of a machine in one place. The supply is 24 V DC. The materials are body and spool aluminium, seals NBR, pilot plastic.
Valve terminal, 8 stations, DeviceNet, outlets M 5 at base plate (side), 16x M 5, 24 V DC
E.MC
Original product
Net price (excl. VAT)
€1,300.60
Item
FL-816699
Manufacturer no.
S1V-M5-8M-DN
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.S1V-M5-8M-DN
EAN4070497020030
Customs tariff number84812090
ConditionNew
Artikel
FL-816699
Frequently Bought Together
-
This Item:
€1,300.60
-

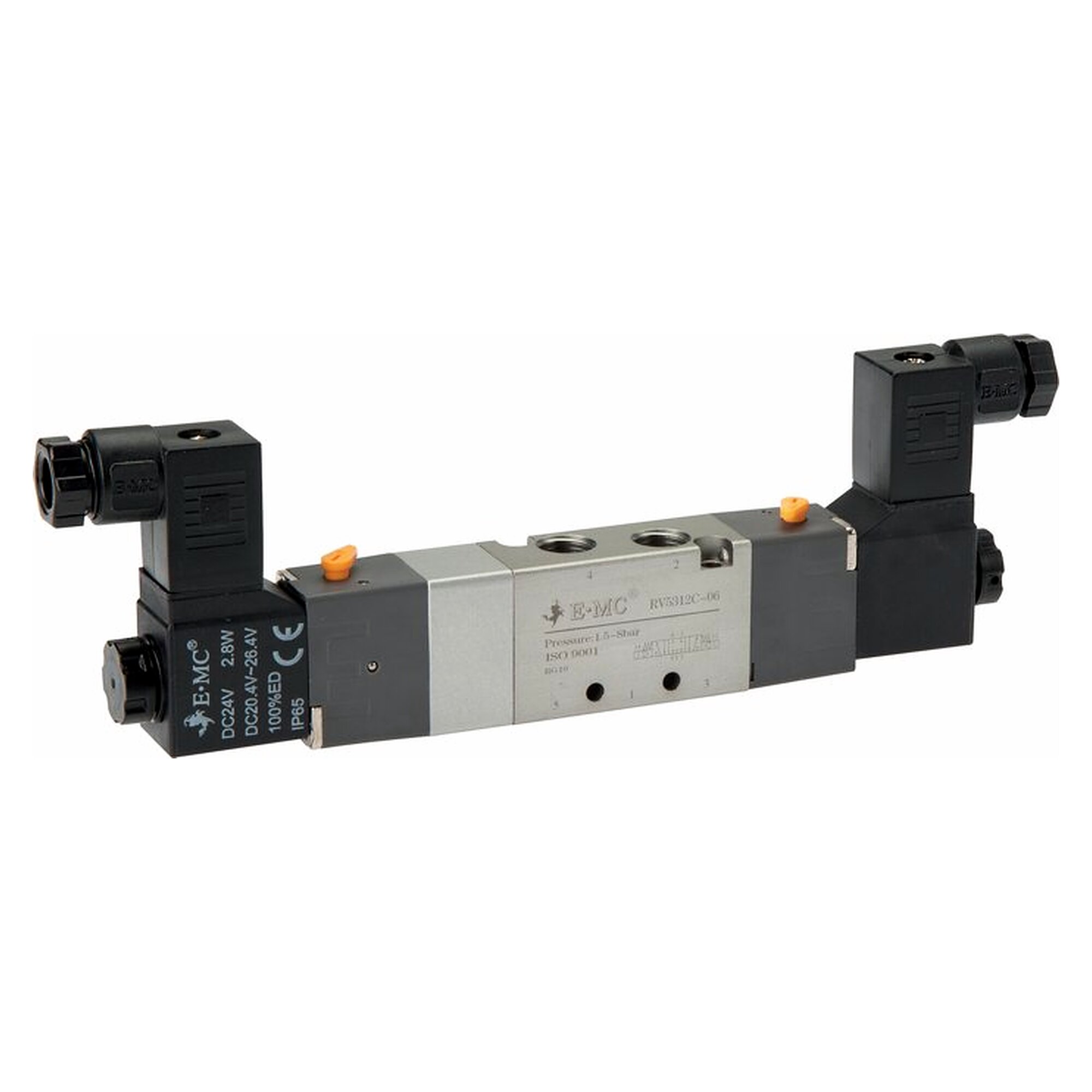

5/3-way solenoid valve, centre position closed, G 1/8", 24 V DC, 450 l/min, nominal size 3.4 mm
€139.37
-

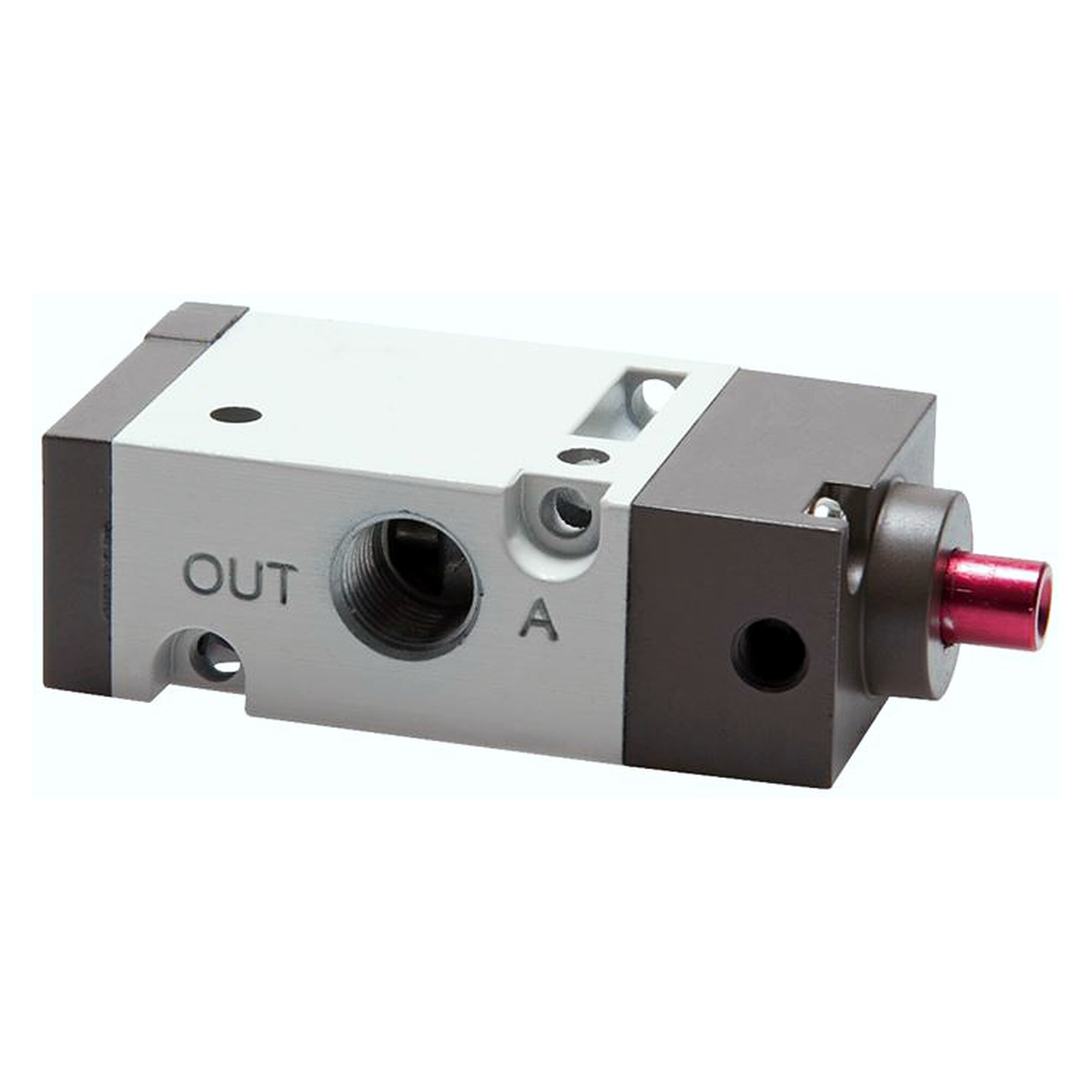

3/2-way pneumatic valve, spring return (NC), G 1/8", 590 l/min, 1.5 to 10 bar, exhaust G 1/8"
€31.77
Total price
This valve terminal groups 8 valve stations and thus shortens piping and wiring in the control cabinet. The supply is 24 V DC. The power consumption is 0.8 W / valve solenoid. The protection class is IP 40. The materials are body and spool aluminium, seals NBR, pilot plastic.
Advantages
- Operating pressure of 1.5 to 8 bar (5/3-way: 2 to 8 bar) bar for all stations jointly.
- Materials body and spool aluminium, seals NBR, pilot plastic, matched to continuous operation at the machine.
- Temperature range of -10 to +60 °C for installation in the machine environment.
- Dimensions A 19, B 16, C 22, D 86, E 94.5, F 102.8, H 4.2, K 164.5, L 156.5, M 6.5, N 11.3, O 5.5, P 11.5, Q 13.0, R 25, S 59.5, so the space requirement can be planned in advance.
- Outlets M 5 at base plate (side), so the position of the fittings is known in advance.
Technical data
| Feature | Value |
|---|---|
| G1 | 16x M 5 |
| Number of stations [pcs] | 8 |
| Control | DeviceNet |
| mounted valves | Sub-base valves (5/2-way with spring return) |
| Temperature range [°C] | -10 to +60 |
| Outlets | M 5 at base plate (side) |
| G2 | G 1/8" |
| Dimensions [mm] | A 19, B 16, C 22, D 86, E 94.5, F 102.8, H 4.2, K 164.5, L 156.5, M 6.5, N 11.3, O 5.5, P 11.5, Q 13.0, R 25, S 59.5 |
| Material body and spool | aluminium |
| Material seals | NBR |
| Material pilot | plastic |
| Operating pressure | 1.5 to 8 bar (5/3-way: 2 to 8 bar) |
| Flow rate | per valve station M 5: approx. 230 l/min, M 7: approx. 330 l/min |
| Media | oiled and non-oiled, filtered compressed air |
| Switching time | below 15 ms, max. 5 switching cycles / sec. (5/3-way: max. 3 switching cycles / sec.) |
| Control voltages | 24 V DC |
| Voltage tolerance | plus/minus 10 percent |
| Power consumption | 0.8 W / valve solenoid |
| Protection class | IP 40 |
| Service life | min. 40 million switching cycles |
| Scope of delivery | valve terminal including mounted valves |
Applications
- Special purpose machinery with a changing number of actuators.
- Machines with up to 8 pneumatic axes in one place.
- Plants whose control is connected through DeviceNet.
- Retrofitting and extending existing valve islands.
| Manufacturer | E.MC |
|---|---|
| Hersteller-Nr | S1V-M5-8M-DN |
| EAN | 4070497020030 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Anzahl Stationen [Stk] | 8 |
| Temperaturbereich | -10-60 °C |
