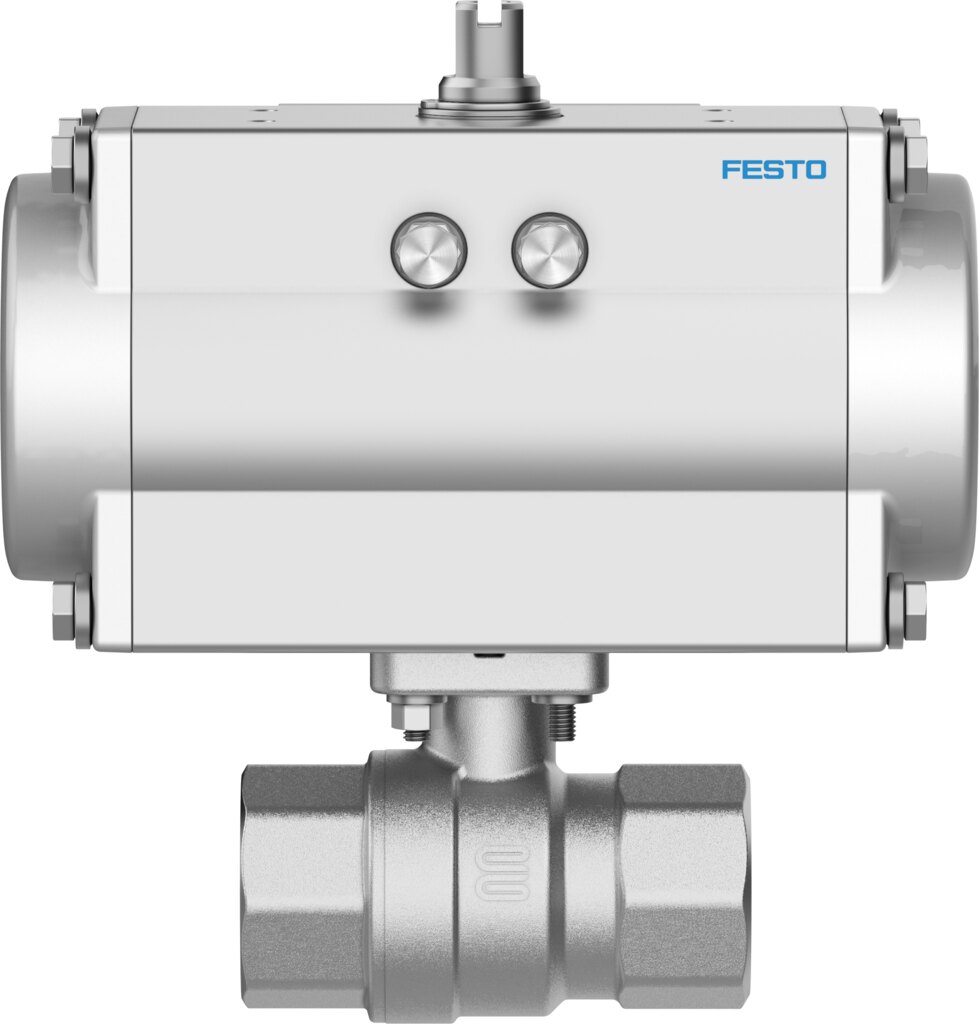

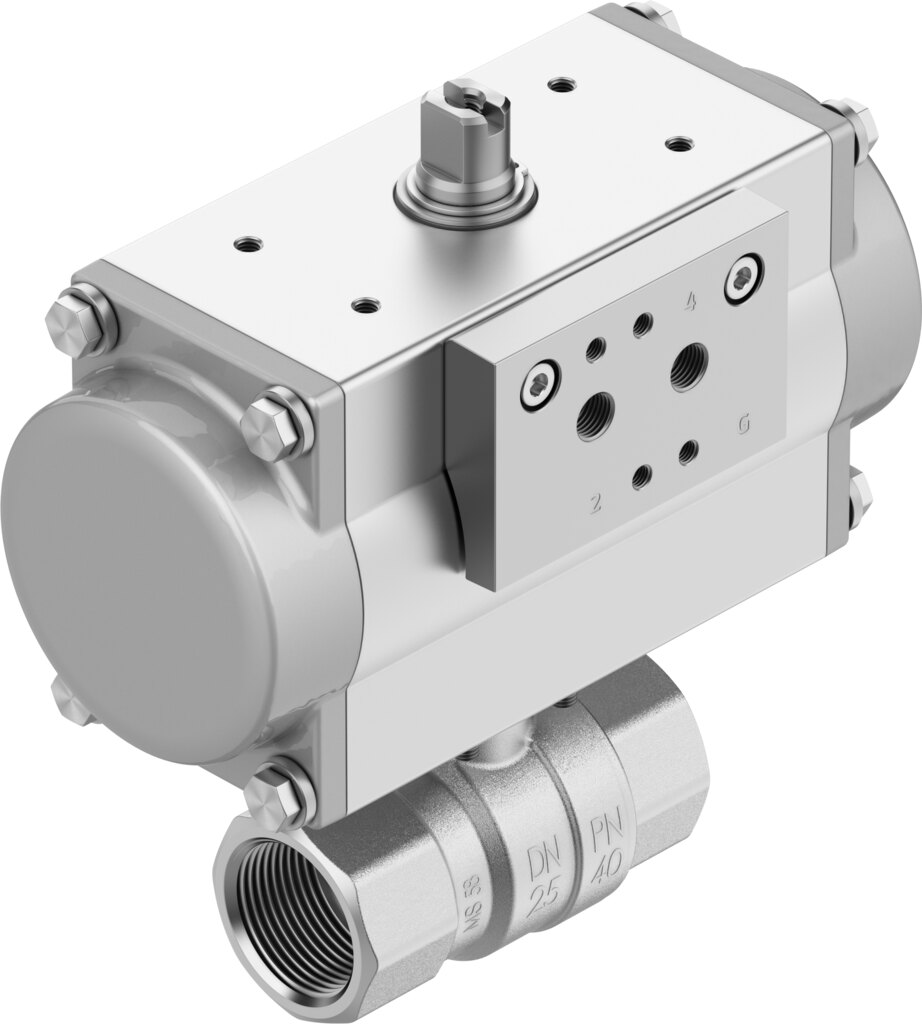

Ball valve unit with quarter turn actuator nickel-plated brass Rp1/4 DN 15 PN 40 VAPB-A-1/4-F-40-F03-PB20 - Festo 8191926
Ball valve unit VAPB-A-1/4-F-40-F03-PB20 with pneumatic quarter turn actuator for DN 15 lines up to PN 40, mounted and ready for use. Connection Rp1/4, housing in brass, nickel-plated, Kv 5.9 m³/h. Actuator for operating pressure 5.5 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The ball valve unit VAPB-A-1/4-F-40-F03-PB20 brings ball valve and pneumatic quarter turn actuator as a mounted unit into DN 15 lines up to PN 40. Flow rate Kv 5.9 m³/h.
Key advantages
- Kv value 5.9 m³/h in DN 15
- Nominal pressure PN 40 for the valve body
- Corrosion resistance class CRC 1
- Quarter turn actuator for operating pressure 5.5 to 8 bar
- Housing in brass, nickel-plated 2.0402, CW617N
- Media from -10 to 200 °C
Applications
Suitable for compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Installation is possible in any position.
Technical data
| Feature | Value |
|---|---|
| Type | VAPB-A-1/4-F-40-F03-PB20 |
| Festo part number | 8191926 |
| Design | Quarter turn actuator |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Rp1/4 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F03 |
| Nominal size DN | 15 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Operating pressure | 5.5 to 8 bar |
| Nominal pressure PN | 40 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 5 Nm |
| Based on standard | EN 10226-1 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 to 200 °C |
| Flow rate Kv | 5.9 m³/h |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Brass, nickel-plated |
| Material number housing | 2.0402, CW617N |
| Material seat seal | PTFE |
| Material seals | HNBR, PTFE |
| Material ball | Brass, Hard chrome-plated |
| Material number ball | 2.0401, CW614N |
| Material shaft | Brass |
| Material number shaft | 2.0401, CW614N |
| Product weight | 1920 g |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Weight | 2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAPB-A-1/4-F-40-F03-PB20 |
| EAN | 4052568715885 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Nickel-plated brass (CW617N) |
| Thread | Rp 1/4 |
| Nominal size DN [mm] | 15 |
| Nominal pressure PN [bar] | 40 |
| Seal material | HNBR, PTFE |
| Housing material | Nickel-plated brass (CW617N) |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 200 |
| Norm | DIN EN 10226-1 |
| Series | VAPB |
