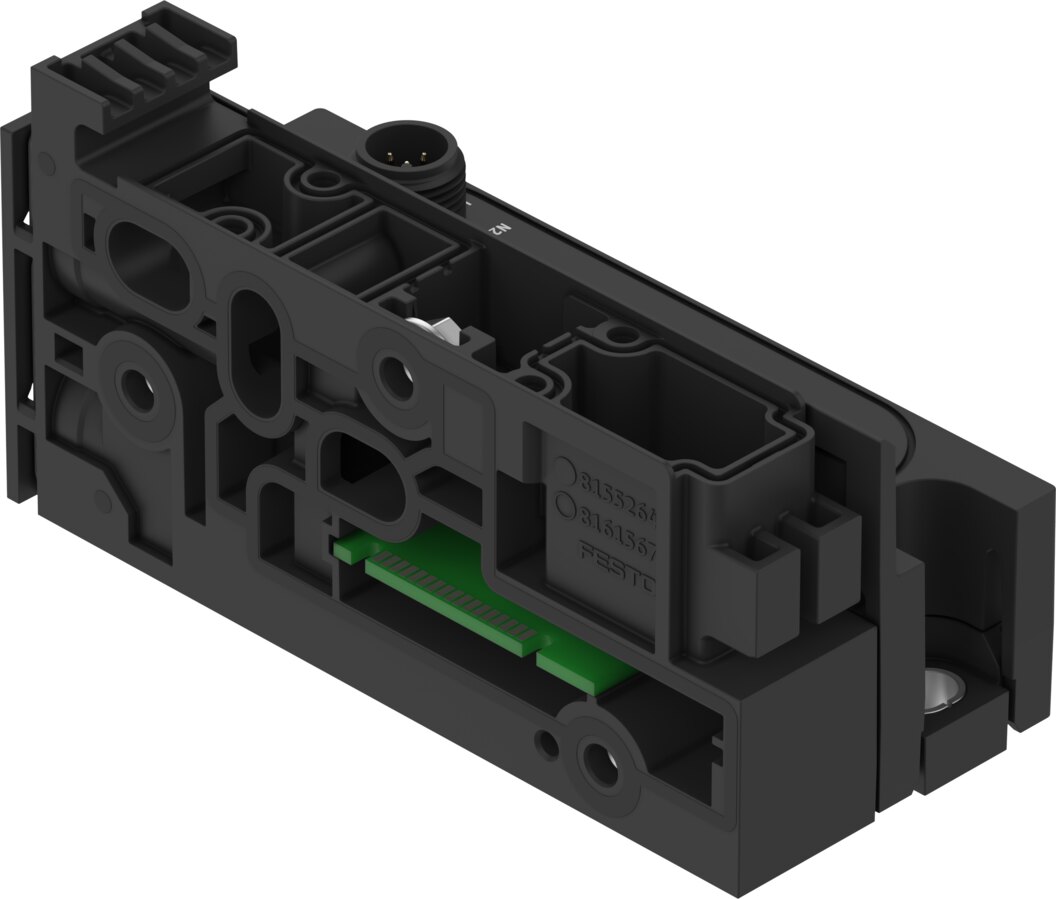

Manifold sub-base for valve terminal VTUX-A-P VABX-A-P-EL-E12-IOS-SHUH-XL - Festo 8189590

Festo ✓ Original product Brand new

The manifold sub-base VABX-A-P-EL-E12-IOS-SHUH-XL from Festo combines supply and exhaust for the mounted valves. The data sheet lists compatible with valve terminal VTUX-A-P, port 1 for 15 mm cartridge and up to 32 valve coils.

Net
€120.10
excl. VAT
Item FES-8189590
Manufacturer no. VABX-A-P-EL-E12-IOS-SHUH-XL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The manifold sub-base VABX-A-P-EL-E12-IOS-SHUH-XL combines supply and exhaust for the mounted valves. The data sheet lists compatible with valve terminal VTUX-A-P, port 1 for 15 mm cartridge and up to 32 valve coils.

Benefits

  • Compatible with valve terminal VTUX-A-P
  • Port 1 for 15 mm cartridge
  • Up to 32 valve coils
  • Sub-base made of reinforced PA
  • Degree of protection IP65, dust-tight and protected against water jets
  • Corrosion resistance class CRC 2, rated for moderate corrosion stress

Use

VABX-A-P-EL-E12-IOS-SHUH-XL creates a compact valve group with little tubing and fitting effort. VABX-A-P-EL-E12-IOS-SHUH-XL reduces tubing and assembly time in machine building.

Technical data

Order codeVABX-A-P-EL-E12-IOS-SHUH-XL
Festo part number8189590
Size1 to 2
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Position of connectionOn the side
Reverse polarity protectionYes
Diagnostics via LEDPower supply load (outputs), Connection status
Valve terminal structureValve sizes can be mixed
Max. number of valve coils32
Compatible withValve terminal VTUX-A-P
Dimensions (W x L x H)45.6 mm x 117.4 mm x 53.9 mm
Fuse protection (short circuit)Internal electronic fuse per channel
Intrinsic current consumption at nominal operating voltage for electronics/sensorsTypically 10 mA
Intrinsic current consumption at nominal operating voltage loadTypically 15 mA
Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop
Power consumption at 24VDC0.24 W
Max. power supply2 x 4 A (external fuse required)
Nominal DC operating voltage, electronics/sensors24 V
Nominal operating voltage DC of load24 V
Electrical isolation of outputs between channel - internal communicationYes
Potential separation between the supply voltages electronics/sensor technology and load/valvesYes
ProtocolIO-Link
Pollution degree2
Permissible voltage fluctuations for electronics/sensors±25%
Permissible voltage fluctuation of load±10%
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20 to 70 °C
Relative air humidity5 - 95%
Degree of protectionIP65
Ambient temperature-5 to 50 °C
Nominal altitude of use≤ 2000 m NHN
Max. installation height3500 m
Max. tightening torque wall mounting6 Nm
Product weight124.4 g
Electrical controlIO-Link
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, Port classB
IO-Link, Process data length OUT4 bytes
IO-Link, Min. cycle time500 µs
Max. cable length20 M
Types of communicationIO-Link
Cable outletStraight
Electrical connectionM12
Mounting method for sub-baseWith through-hole
Type of mountingVia through-hole for M5 screw
Pneumatic connection, port 1For 15 mm cartridge
Pneumatic connection, port 5For 15 mm cartridge
Note on materialsRoHS compliant
Material sub-baseReinforced PA
Material coverReinforced PA
Material sealsNBR
Material foilPolyester
Material sleeveHigh-alloy stainless steel
Material clipHigh-alloy stainless steel
Material nutHigh-alloy stainless steel
Weight0.135 kg
ManufacturerFesto
Hersteller-NrVABX-A-P-EL-E12-IOS-SHUH-XL
EAN4052568638191
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialNBR
Operating voltage24 V DC
Protection ratingIP65
Temperature (max.)50
