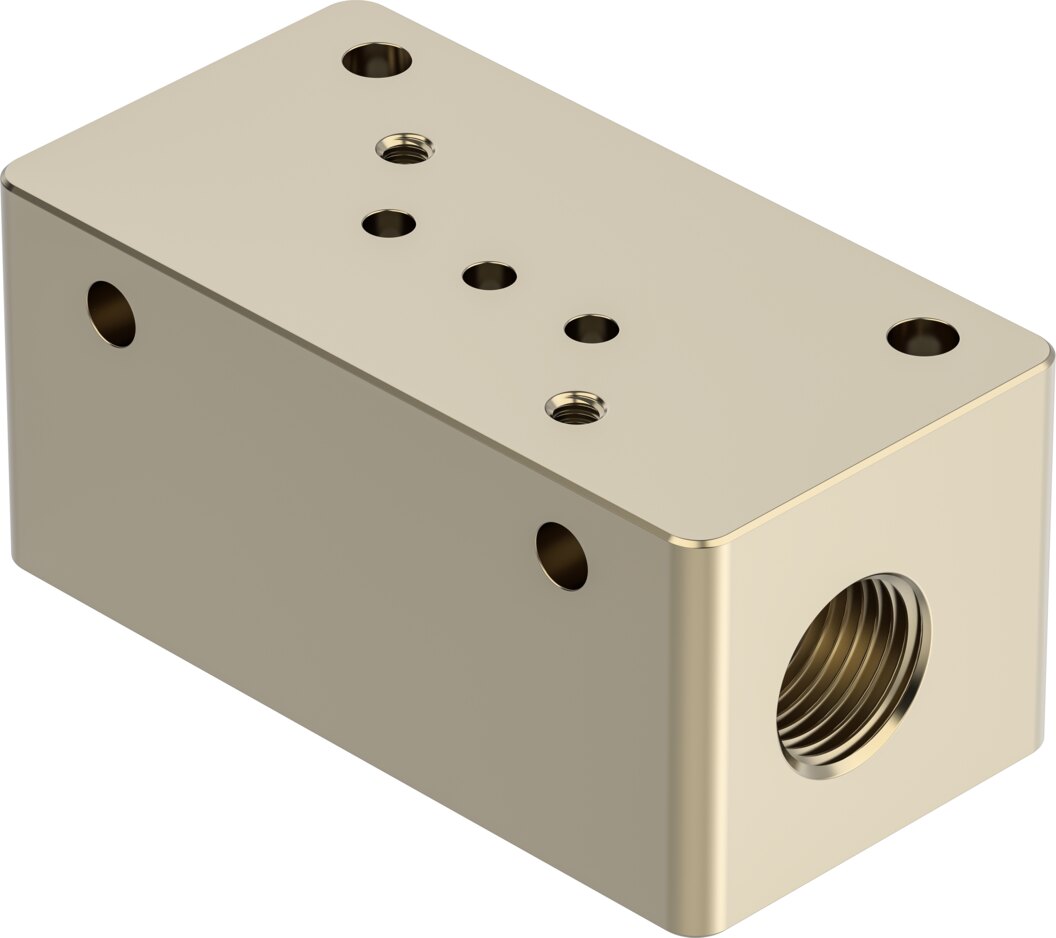

Sub-base VABS-K3-16S-20-G18-P - Festo 8186873
Net
excl. VAT
€97.43
Item
FES-8186873
Manufacturer no.
VABS-K3-16S-20-G18-P
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 16 |
|---|---|
| Nominal size | 2 mm |
| Valve size | 16 mm |
| Fluid connection | Female thread G1/8 |
| Mounting position | Any |
| Design | Connection direction on the side |
| Max. number of valve positions | 1 |
| Flow direction | Reversible |
| Operating medium | Liquid media, Gaseous media |
| Note on operating and pilot medium | Observe resistance of materials that come into contact with the media |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 ... 70 °C |
| Suitable for use with food | See supplementary material information |
| Media temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Max. tightening torque for valve mounting | 0.3 Nm |
| Max. tightening torque for fitting | 7 Nm |
| Max. tightening torque | 0.6 Nm |
| Product weight | 26 g |
| Mounting method for sub-base | With through-hole |
| Mounting method for valve | With female thread |
| Note on materials | RoHS compliant |
| Material sub-base | PEEK |
| Weight | 0.029 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABS-K3-16S-20-G18-P |
| EAN | 4052568635275 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
