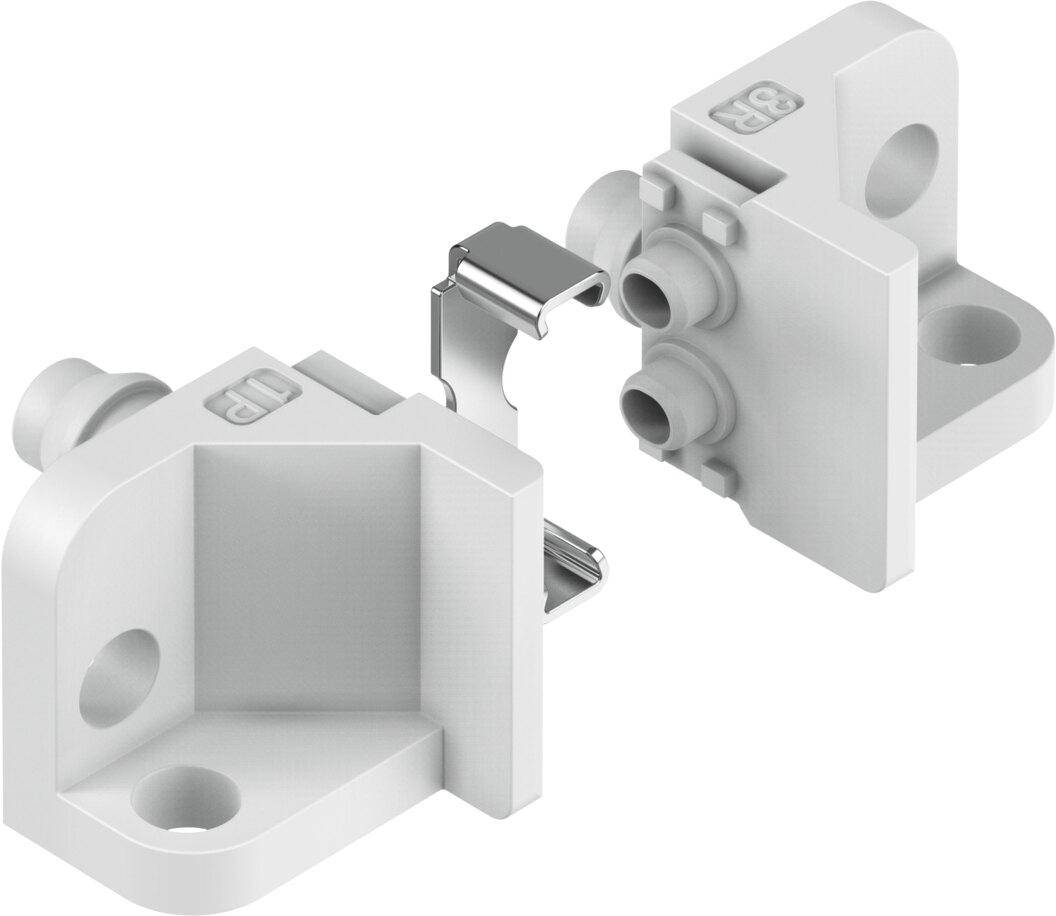

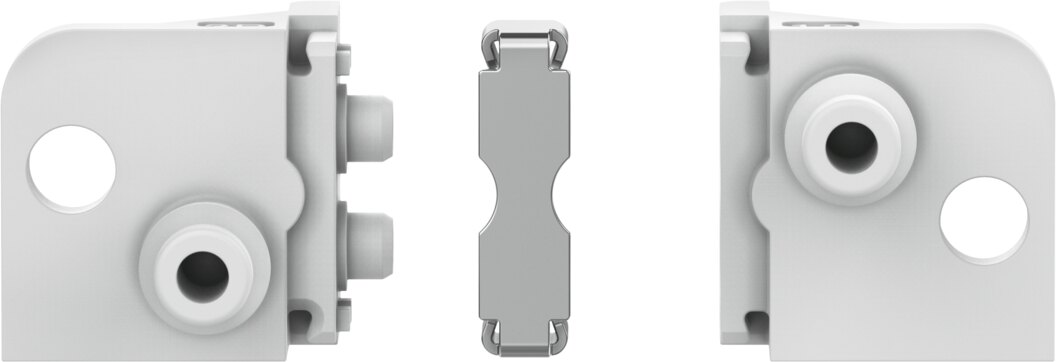

Manifold block set 13 mm width, PBT VABS-C12-6-S - Festo 8122790
The manifold block set VABS-C12-6-S provides the pneumatic ports for the valve. Port 2 for tubing I.D. 4 mm, operating pressure -1 to 7 bar. Material: PBT, RoHS compliant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The manifold block set VABS-C12-6-S provides the pneumatic ports for the valve. The VABS-C12-6-S provides port 2 for tubing I.D. 4 mm. The VABS-C12-6-S operates at -1 to 7 bar, so vacuum is also possible. The VABS-C12-6-S is made of PBT.
Benefits
- Width: 13 mm
- Pressure range: -1 to 7 bar, vacuum-capable
- Material: PBT
- PWIS-free: VDMA 24364 zone III
Applications
The VABS-C12-6-S is mounted with through-hole, any mounting position. Suitable for compressed air to ISO 8573-1:2010 [6:4:1], maximum particle size 5 µm. Ambient temperature 5 to 50 °C. Design: connection direction on the side.
Technical data
| Type | VABS-C12-6-S |
|---|---|
| Festo part number | 8122790 |
| Width | 13 mm |
| Mounting position | Any |
| Design | Connection direction on the side |
| Max. number of valve positions | Versions according to customer specifications possible |
| Operating pressure | -1 to 7 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Note on operating and pilot medium | Maximum particle size 5 µm |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | 5 to 50 °C |
| Product weight | 3 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 2 | For tubing I.D. 4 mm |
| Note on materials | RoHS compliant |
| Material manifold rail | PBT |
| Weight | 0.005 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABS-C12-6-S |
| EAN | 4052568550929 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PBT |
| Medium | Compressed air |
| Series | VABS |
| Betriebsdruck max [bar] | 7 |
| Temperature (max.) | 50 |
