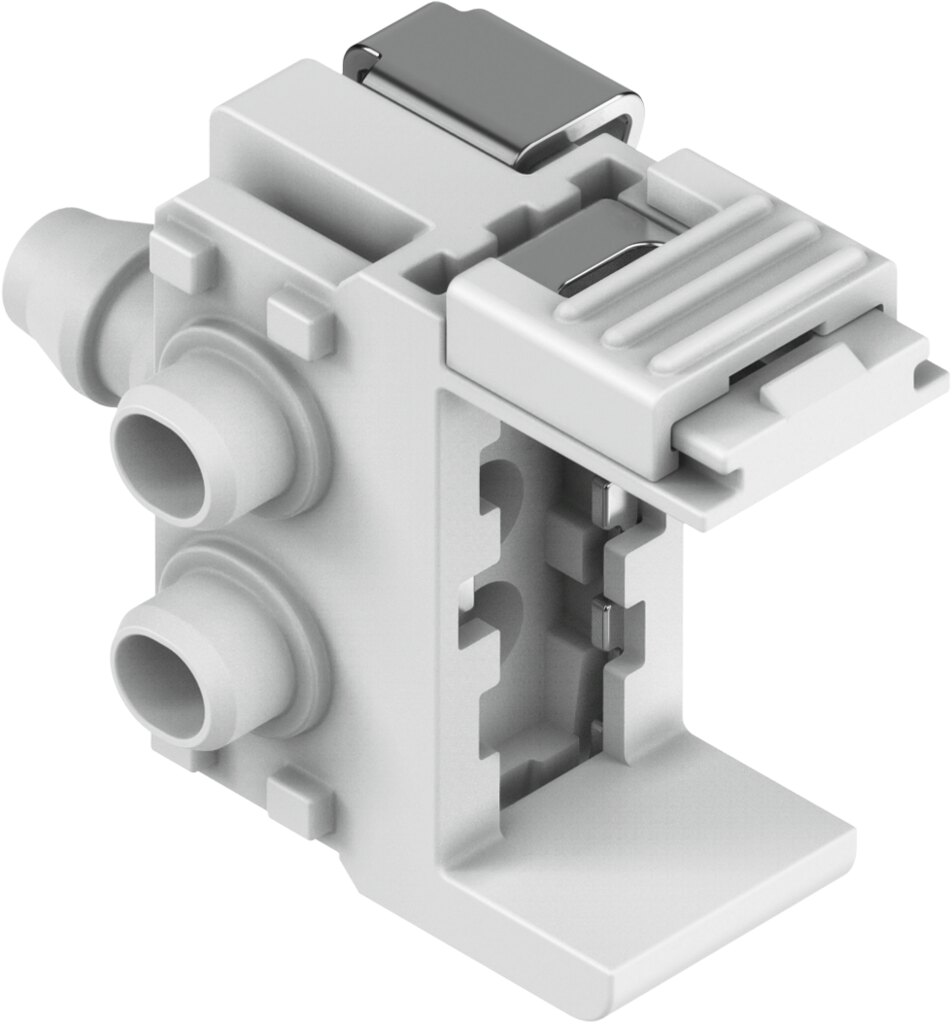

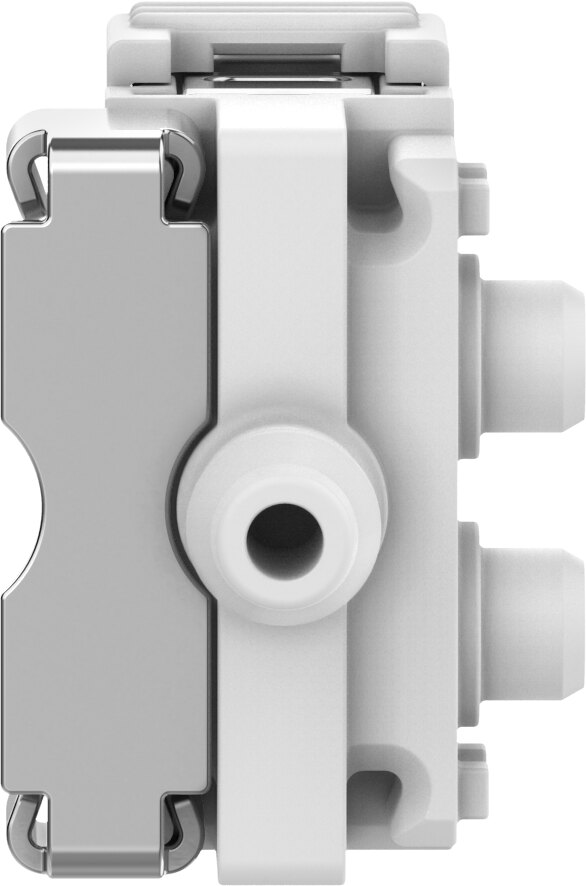

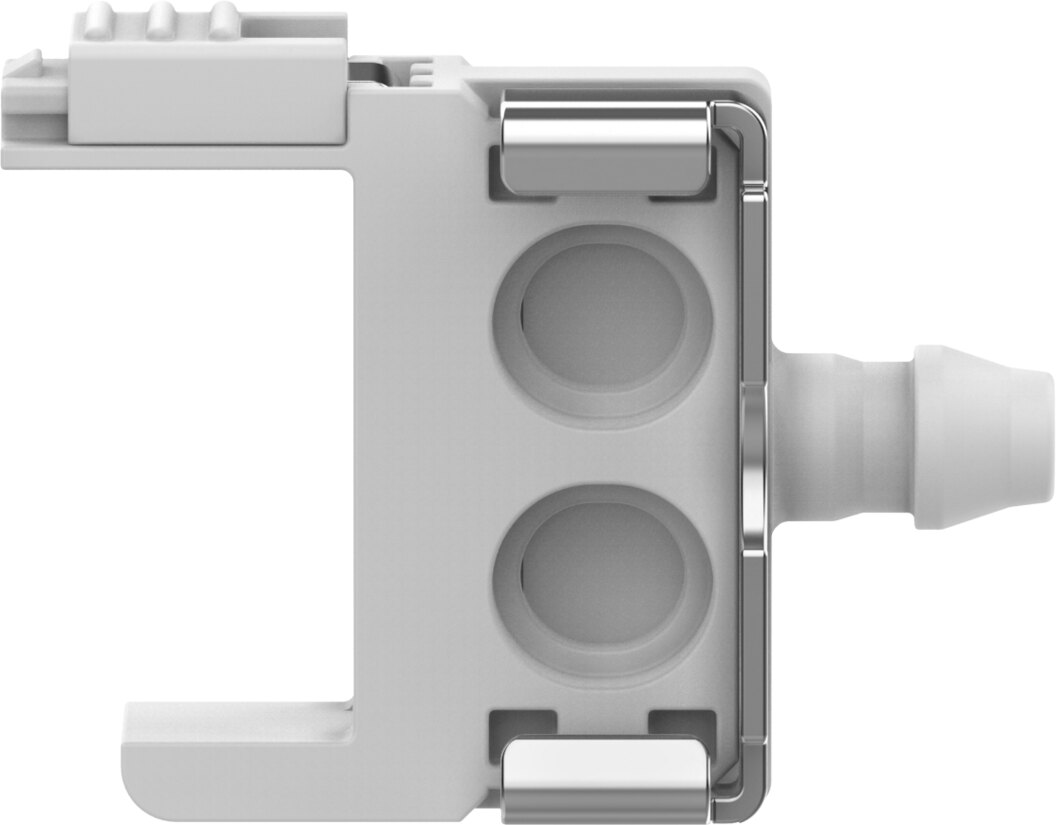

Manifold block set 6 mm width, PBT VABS-C12-6-S-B3 - Festo 8122792

Festo ✓ Original product Brand new

The manifold block set VABS-C12-6-S-B3 provides the pneumatic ports for the valve. Port 2 for tubing I.D. 2 mm, operating pressure -1 to 7 bar. Material: PBT, RoHS compliant.

Net
€7.03
excl. VAT
Item FES-8122792
Manufacturer no. VABS-C12-6-S-B3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The manifold block set VABS-C12-6-S-B3 provides the pneumatic ports for the valve. The VABS-C12-6-S-B3 provides port 2 for tubing I.D. 2 mm. Permitted operating pressure -1 to 7 bar, vacuum included. Material manifold rail of the VABS-C12-6-S-B3: PBT.

Benefits

  • Width: 6 mm
  • Pressure range: -1 to 7 bar, vacuum-capable
  • Material: PBT
  • PWIS-free: VDMA 24364 zone III

Applications

The VABS-C12-6-S-B3 is mounted with through-hole, any mounting position. Operating medium: compressed air to ISO 8573-1:2010 [6:4:1], maximum particle size 5 µm. Ambient temperature 5 to 50 °C. Design: connection direction on the side.

Technical data

TypeVABS-C12-6-S-B3
Festo part number8122792
Width6 mm
Mounting positionAny
DesignConnection direction on the side
Max. number of valve positions1
Operating pressure-1 to 7 bar
Operating mediumCompressed air to ISO 8573-1:2010 [6:4:1]
Note on operating and pilot mediumMaximum particle size 5 µm
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature5 to 50 °C
Product weight1.1 g
Type of mountingWith through-hole
Pneumatic connection, port 2For tubing I.D. 2 mm
Note on materialsRoHS compliant
Material manifold railPBT
Weight0.003 kg
ManufacturerFesto
Hersteller-NrVABS-C12-6-S-B3
EAN4052568550943
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPBT
MediumCompressed air
SeriesVABS
Betriebsdruck max [bar]7
Temperature (max.)50
